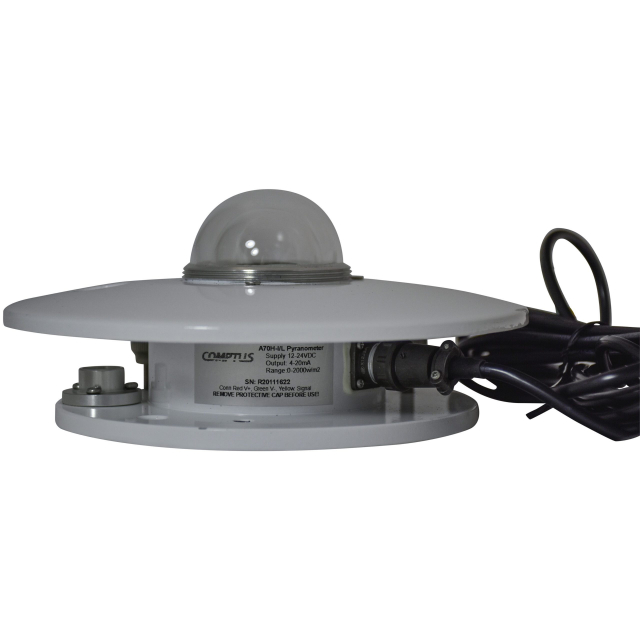

Buy Comptus A70H-I/L, Pyranometer, 12-24 VDC, 4-20mA, 0-2000 w/m2

info@PrimeBuy.com

1-855-969-9322
1-908-282-3332 (Intl.)

Pictures shown are for illustrative purpose only. Actual product may vary

Features:

Applications:

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Power Supply	12-24 VDC
Output	4 - 20 mA
Spectral Range	300-3200 nm
Sensitivity	7-14µV*W/m²
Internal resistance	350 Om
Measuring Angle	2 solid angle
Range	0-2000 W/m²
Response Time	≤35s (99%)
Temperature Effect	±2%°C (-10°C to 40°C)
Cosine Correction	≤7% (Solar elevation level = 10°)
Non-Linearity	≤±2% Stability: ≤±2% per year
Operating Temperature	40°C to 60°C
Ingress Protection	IP65/NEMA4
Material	Aluminum Alloy instrument Box
Storage Conditions	10°C to 60°C @ 20% to 90% R.H.
Weight	2.5 kg (5.5 lbs)

Power Supply	12-24 VDC
Output	4 - 20 mA
Spectral Range	300-3200 nm
Sensitivity	7-14µV*W/m²
Internal resistance	350 Om
Measuring Angle	2 solid angle
Range	0-2000 W/m²
Response Time	≤35s (99%)
Temperature Effect	±2%°C (-10°C to 40°C)
Cosine Correction	≤7% (Solar elevation level = 10°)
Non-Linearity	≤±2% Stability: ≤±2% per year
Operating Temperature	40°C to 60°C
Ingress Protection	IP65/NEMA4
Material	Aluminum Alloy instrument Box
Storage Conditions	10°C to 60°C @ 20% to 90% R.H.
Weight	2.5 kg (5.5 lbs)

Note: Please read description carefully. Do not base your order on the picture presented.
