SimpliShare 4K Presentation Cable
SimpliShare 4K Presentation Cable
Comprehensive
SimpliShare 4K Presentation Cable
SimpliShare 4K Presentation Cable

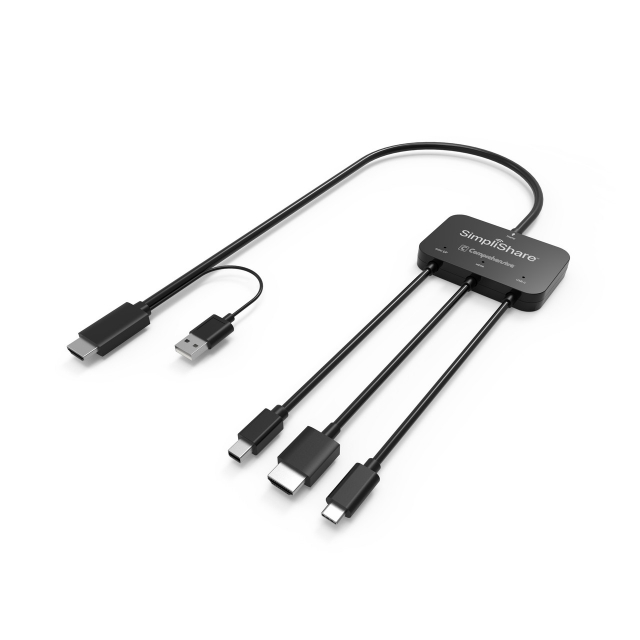

Comprehensive SSH-500T SimpliShare 4K Presentation Cable

Part #:
SSH-500T
Model #:
SimpliShare
Condition:
Brand New
Our price is too low to show. See Price in Cart
Free shipping
Typically In Stock
Check availability
Our price is too low to show. See Price in Cart

Notification

warningWARNING: This product can expose you to chemicals including Di-2(ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov

Manufacturer warranty

Description

Our price is too low to show. See Price in Cart
Free shipping
Typically In Stock
Check availability

Technical details

Main features
  • Color Black
  • Cable Length Inputs:1ft Output: 4ft 10in
  • Bandwidth 18Gbps
  • Housing Material ABS plastic
  • Directional Yes
  • Jacket Type PVC jacket
  • Finish Nickel plated
  • Connections Input: HDMI 2.0 (male cable) x1 Mini-DP (male cable) x1 USB Type-C 3.1 (male cable) x1 Attached USB Type-A (male cable) x1 Micro-B USB (female port) optional power port x1 Output: HDMI 2.0 (male cable) x1
  • Maximum Resolution Inputs: USB Type-C: 4K at60Hz 4:4:4 (3840x2160) HDMI: 4K at60Hz 4:4:4 (3840x2160) Mini-DP: 4K at60Hz 4:4:4 (3840x2160) Outputs: HDMI: 4K at60Hz 4:4:4 (3840x2160) Signal Technology Versions: HDMI 2.0 DisplayPort 1.2 USB-C 3.1 Chipsets: RTD2172U IT66351 IT6350E IT6563FN
  • Operating Temperature 0° to +70° C
  • Storage Temperature -10° to +70° C
  • Storage Humidity 5% to 90 % RH (no condensation)
  • Power Requirements DC 5V via attached USB-A cable
  • ROHS compliant Yes
  • Dimensions (W x H x D) W: 3.15in x H: 0.5in x L: 7.2in
  • Conductors Silver Connector
  • Operating System Compatibility Windows 8 & 10 Mac OS X, 10.6, 10.7, 10.8, 10.9 & up Android 8.0 or above iOS 12.3, 12.4 & up iPad OS 13.0 & up ChromeOS
  • HDCP v.2.2/v1.4
  • CE Yes
  • FCC Yes
  • Audio Formats Supported Dolby True HD DTS-HD Master Audio and up to 32 audio channels
  • HDCP Compliant V2.2 & V 1.4
  • Performance Grade Commercial Grade
  • Ethernet Capability Yes
  • Chroma Sampling 4:4:4
  • Gauge (AWG) HDMI : 28AWG USB-C : 30AWG MiniDP: 30 AWG
  • Color Bit Depth 8 Bit
  • CEC Compliant Yes
  • HDMI ATC Certified No
  • Audio Return Channel Yes
  • Overall Cable Length 6 FT
  • Cable Bend Radius HDMI : 1.08" (or 27.5mm) USB-C : 0.89" (or 22.5mm) MiniDP: 0.89" (or 22.5mm)
  • Cables OD HDMI : 5.5mm USB-C : 4.5mm MiniDP: 4.5mm
