Comprehensive LC-ST-OM3-5M 10Gb LC/ST Duplex Patch Cable, 5m
Brand:
Comprehensive
Part #:
LC-ST-OM3-5M
Condition:
Brand New
Brand NewOur price is too low to show. See Price in Cart
Manufacturer warranty Description

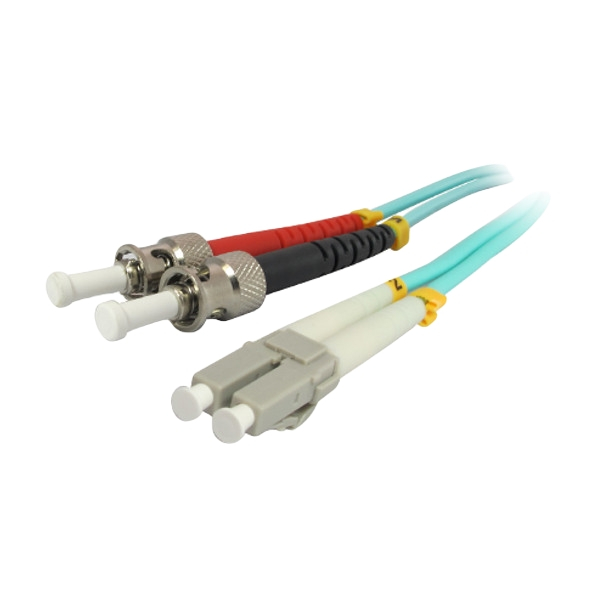

Comprehensive Connectivity, LC-ST-OM3-5M, 10Gb LC/ST Duplex 50/125 Multimode Fiber Patch Cable Assembly, Aqua, 5m
Features:
- 10-Gigabit application support
- A duplex cable is joined together in a zip cord style for easy separation
- Features a Laser-Optimized 50-µm core and 125-µm cladding
- Use with both LED and VCSEL laser light sources
- Ceramic ferrules for long-lasting reliability and precision alignment
- Used to connect patch panels and/or network devices that require 50/125 multimode cabling
- OFNR jacket complies with stringent building codes
This laser-optimized multimode fiber (LOMMF) cable provides backward compatibility with existing 50/125 equipment while providing the performance headroom required to support laser light sources and 10 Gigabit applications. Optical Multimode 3 (OM3) fiber supports 2000 MHz/km EMB at 850nm, and provides 10 Gigabit transfers up to 300 meters using an 850nm VCSEL source. The Aqua-colored jacket is PVC (OFNR-rated).
Technical details
Main features
- Cable Length (m) 5
- Buffer Material PVC
- Version LC/ST
- Operating Temperature -20C to +80C
- Impact Resistance 1, 000 cycles
- Typical Return Loss -25 dB
- Connector 1 LC Male
- Connector 2 ST Male
- Weight, lbs 0.22
- Jacket Material PVC (OFNR riser-rated)
- Maximum Tensile Load 100 N/cm
- Optical Multimode 3 (OM3) Fiber Supporting 2000 MHz.km EMB at 850 nm
- LC Connector Dimensions 10.75mm Height x 12.5mm Width x 50mm Depth (with installed duplex clip)
- Maximum Connector Loss 0.30 dB
- Typical Connector Loss 0.20 dB
- Buffer OD 900 um
- Jacket OD 3.0 mm
- Installation Tensile Load 100 N (445 lbs)
- Long-Term Tensile Load 50 N (222 lbs)
- Installation (Loaded) Minimum Bend Radius 5.0cm (1.97in)
- Long-Term (Unloaded) Minimum Bend Radius 3.0cm (1.2in)
- Crush Resistance 750 N/cm
- Flex Resistance 5, 000 cycles
- Attenuation at 1300 nm 1.0 dB/km
- Attenuation at 850 nm 3.5 dB/km
- ST Connector Dimensions 9.8mm Height x 19.6mm Width x 59mm Depth
