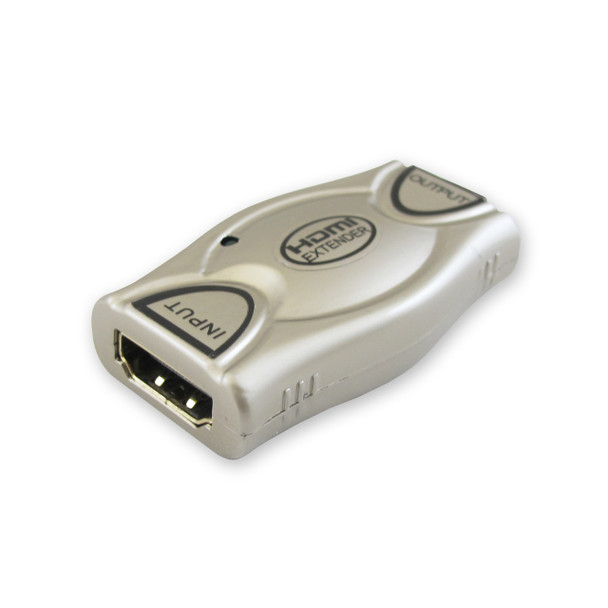

Comprehensive CRP-HD202 HDMI 2.0 In-Line Extender
Brand:
Comprehensive
Part #:
CRP-HD202
Condition:
Brand New
Brand NewOur price is too low to show. See Price in Cart
Manufacturer warranty Description
Features:
- HDMI 2.0 signal extension
- Bandwidth frequency range up to 25 MHz (600 MHz pixel clock frequency)
- 16bit Full HD 1080P 60Hz, Full 3D, 8bit4Kx2K
- 60Hz video; supports low power, Energy Star standards
- Uses standard HDMI A-type connector
Comprehensive's CRP-HD202 is an HDMI 2.0 in-line extender designed to transfer HDMI signals over longer distances. By using the extenders, users can access to uncompressed HD featuring a maximum bandwidth up to 18Gbps. The lightweight yet durable casing makes it ideal for a wide range of applications.
Comprehensive's HDMI 2.0 in-line extender is perfect for showroom displays, lecture halls, retail sales displays, and anywhere in between.
Technical details
Main features
- Weight 33g
- Dimensions 52.57mm x 28.2mm x 12.85mm (L x W x H)
- Function HDMI signal extender Bandwidth frequency range up to 25 MHz,600 MHz pixel clock frequency Support for 16bit Full HD 1080P 60Hz, Full 3D, 8bit 4Kx2K 60Hz video Low power, Energy Star standards Uses standard HDMI A-type connector
- Power Consumption 0.65W
- Relative Humidity 20~90 % RH (non-condensing)
- Operating Temperature -40 °C~85 °C
- Storage Temperature -40 °C~85 °C
- Shell Material Zinc Alloy
- ESD Protection 6kV contact per IEC61000-4-2, level 4 6kV HBM Working voltage DC 5V
- Operating Current Range 120mA-1420mA
- Input Line Length HDMI2.0 standard 28AWG 10m HDMI2.0 standard 26AWG 15m HDMI2.0 standard 24AWG 20m
- Output Line Length HDMI 2.0 standard 28AWG 5m HDMI 2.0 standard 26AWG 5m HDMI 2.0 standard 24AWG 7m
