Comprehensive CHE-HDBTWP121K Pro AV/IT Integrator Series

Comprehensive Connectivity, CHE-HDBTWP121K, Pro AV/IT Integrator Series™ HDBaseT 4K 18G Single Gang HDMI, USB 2.0 and Audio Wall Plate Extender Kit up to 230 Ft

CHE-HDBTWP121K Includes Only:

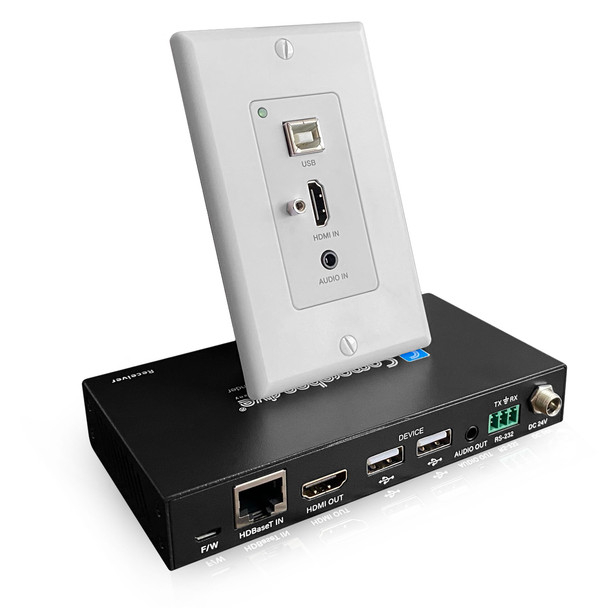

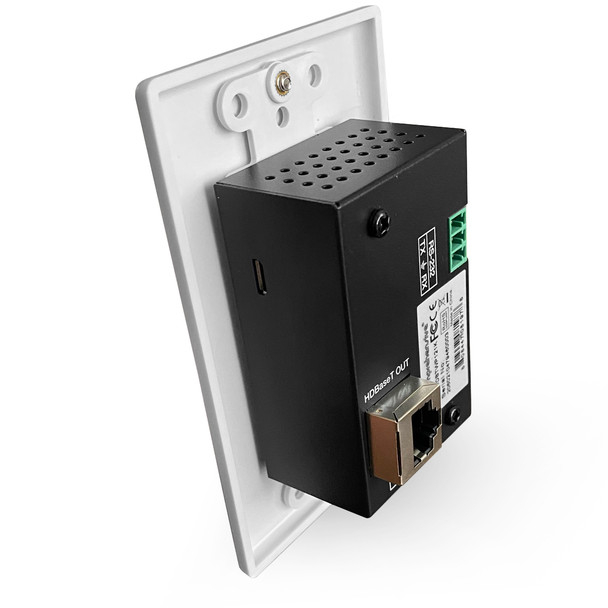

• x1 Single Gang HDMI/USB Wall Plate Extender (white)

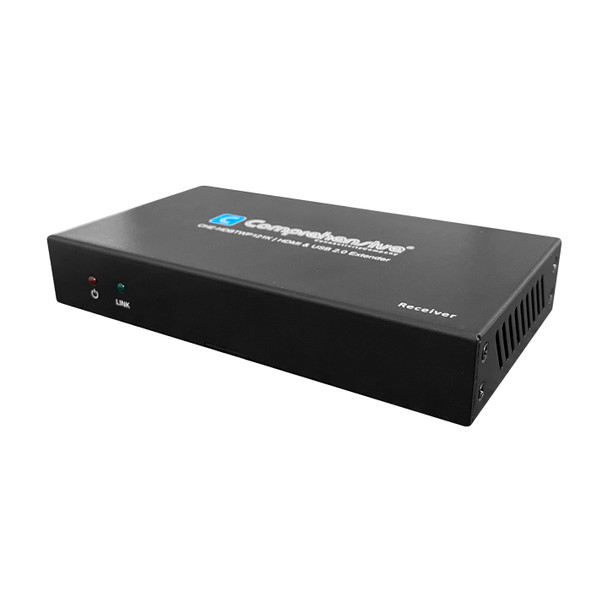

• x1 HDMI/USB Receiver box (black)
• x1 Vinyl Decora plate with 2 screws
• x23-pin Phoenix connector
• x1 2-pin Phoenix connector
• x1 Mounting ears with mounting screws DC 24V/1A Power Adapter
• x1 USB 2.0 Type A male to Type B male cable 3 feet
• x1 User Manual

Features:

• Extends your 4K HDMI, Audio and USB 2.0 High Speed Signals Over a Single UTP cable up to 230 Ft
• HDMI 2.0, 18Gbps
• HDCP 2.2 and 1.4 Compliant
• One HDMI input supports resolutions up to 4K2K at50/60Hz (4:2:0), 4K2K at60Hz (4:4:4), 1080p at120Hz HDBaseT™ Over a Single Cat6/6a/7 cable up to 230 Ft/70m distance to 1080p or 132ft/40m distance to 4K60.
• One USB 2.0 High Speed port up to 190 Mbps
• One 3.5 mm Audio Port to independently transit analog audio signal from the Transmitter to the Receiver
• Supports HDR, CEC pass through
• 24V POC (Power Over Cable) function is supported, either TX or RX is powered by 24V1A power supply, the another does not need power supply from the DC jack.
• POC power consumption is less than 10W.
• Transfer Bidirectional RS-232 control signal together with the HDMI signal.

Extend 4K HDMI, Audio and USB 2.0 High Speed Signals Over a Single UTP Cable up to 230 Ft

Comprehensive's CHE-HDBTWP121K Wall Plate Extender kit was designed to extend HDMI, analog audio and high speed USB 2.0 signals up to 230 Ft over Cat5e or Cat6 cables. Perfect for all commercial AV/IT installations that requires HDMI and USB 2.0 and audio inputs.

Supports 4K HD Video up to 4K at60Hz (4:4:4)

This versatile USB/HDMI extender can transmit 4K resolutions up to 4K at60Hz 4:4:4 up to 131ft and 1080P at60Hz up to 230 Ft, making it perfect for classrooms, meeting rooms, huddle spaces and other AV installations.

Supports Bi-directional POC (Power over Cable) Delivery

The CHE-HDBTWP121K includes 24V POC function support. Either the TX or RX can be powered by the included 24V/1A power adapter or Phoenix jack.

Dual USB 2.0 Ports

The two high speed USB 2.0 ports allow you to connect two USB devices and use them simultaneously.

Dedicated Analog Audio

The 3.5mm analog audio jack delivers audio independent from the HDMI signal for additional audio routing.

A Must Have Device for Every AV Space

Ideal for use in court rooms, classrooms, conference rooms and anywhere audio-visual devices can be extended from a remotely located HDMI source device.

Compatible with Promethean® Interactive Whiteboard

This USB extender supports and is fully compatible with the Promethean® Interactive Whiteboard.

Quality You Can Count On

Since 1974, Comprehensive has been manufacturing the highest quality commercial grade solutions for AV and IT professionals. The CHE-HDBTWP121K extender kit continues that tradition with high end materials, components and quality control to ensure years of worry-free use.
