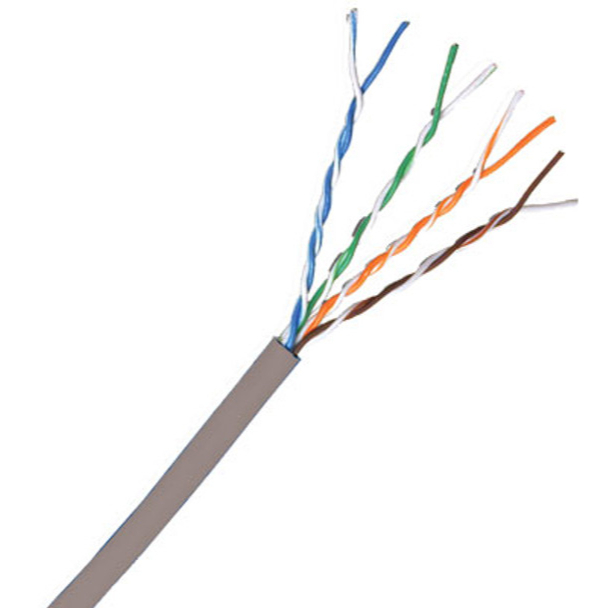

Comprehensive CAT6SHGRY-1000 Cat6 Bulk Cable, Grey
Condition:
Brand New
Brand NewOur price is too low to show. See Price in Cart
Manufacturer warranty Description
Comprehensive Connectivity, CAT6SHGRY-1000, Cat6 Shielded Solid Bulk Cable, 550 MHz, Grey, 1000ft
Features:
- High-Performance Data Communications Cable for Noisy Environments
- Suitable for 550MHz High-Speed Data Applications, Gigabit Ethernet, Fast Ethernet and 155Mbps TP-PMD/CDDI
- Category-6 Shielded Twisted Pair (FTP) Cable
- 4-Pair - Easily Identified Color-Striped Pairs
- 24AWG Solid Bare Copper Conductors
- Excellent Attenuation and Crosstalk Characteristics
- Exceeds EIA/TIA 568 B.2-1, UL, CSA and ISO/IEC 11801 specifi cations
- UL/cUL or ETL Listed
- Sequential foot markers
Category 6 550MHz local area network cable. 4 shielded twisted pairs, solid 24 awg. UL listing NEC, CM/MP. Nominal O.D. is 0.26 inches. Meets all requirements as set forth in the Telecommunications Industry Association's standard 568 & 570 recommendations. Foot-marked cable is packaged in a pull box for easier installation.
Technical details
Main features
- Color Grey
- Weight 27 lbs
- Bandwidth Supports voice/data/video distribution applications up to 550 MHz
- Standards Meets all Cat6 TIA/EIA standards, Verified to EIA/TIA 568B.2
- Impedance 100+/-15ohm at 100-350MHz.
- ROHS compliant Yes
- Conductors 4 Twisted Pairs 24 AWG Shielded bare copper solid cable
- Temperature Rating 75 °C
- Dielectric Strength AC-750V/1 sec Min.
- Mutual Capacitance 5.6nF/100M, Max
- Spark Test AC-2000V/0.15 sec Min
- Outer Diameter 6.6 mm
- UL Rating CMR
- Insulation Resistance PE:DC-500V 1500MW /100M Min.at 20 °C
- Jacket PVC
- Jacket Color Black
- Conductor DC Resistance 9.8 Ohm at 100m maximum
- Pair To Ground Unbalance 330pF/100M, Max
- D-C Resistance 9.38 ohm/100M at 20
- D-C Resistance Unbalance 5%, Max
