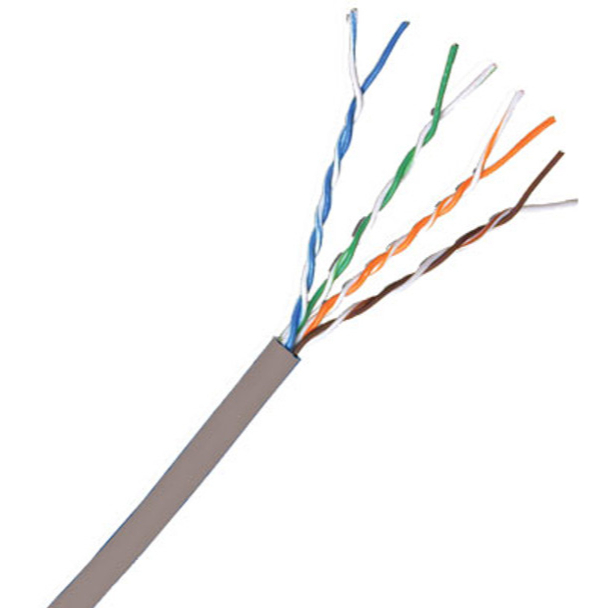

Comprehensive Connectivity CAT6PG-1000 Cat6 Solid Bulk Cable, Grey

Comprehensive Connectivity, CAT6PG-1000, Cat6 Plenum UTP Solid Bulk Cable, 550 MHz, Gray, 1000 Ft

Features:

• 4-pair unshielded twisted pair cable
• Polyethylene separator for enhanced NEXT, ELFEXT and RL Bandwidth
• 23AWG solid bare copper conductors for superior conductivity
• Meets EIA/TIA CAT6 specifications
• Durable, high-density polyethylene insulation, PVC jacket
• Ideal for 10Base-T (IEEE 802.3), 100Base-TX (IEEE 802.3u), 1000Base-TX, 100 Vg-AnyLAN (IEEE 802.12), Token Ring (IEEE 802.5), TP-PMD (ANSI X3T9.5), 550 Mbps CDDI, ATM 155, and all proposed Category 6 requirements for high-speed, full duplex, parallel transmission protocols
• CMP rated for single floor, general purpose use in walls and ceilings
• Verified compliant with EIA/TIA standards by ETL
• CSA listed

Category 6 Plenum 550MHz local area network cable. 4 unshielded twisted pairs, solid 23 awg. Supports all category 6 applications including Ethernet 100BASE -TX, 100BASE-VG and 155 ATM. Particularly suited for high bandwidth applications such as 622 ATM, Wideband, Ethernet 1000BASE-T and emerging applications with anticipated data rates to 3.2 Gbps. UL listing NEC, CMP/MPP. Nominal O.D. is 0.25 inches. Meets all requirements as set forth in the Telecommunications Industry Association's standard 568 & 570 recommendations.
