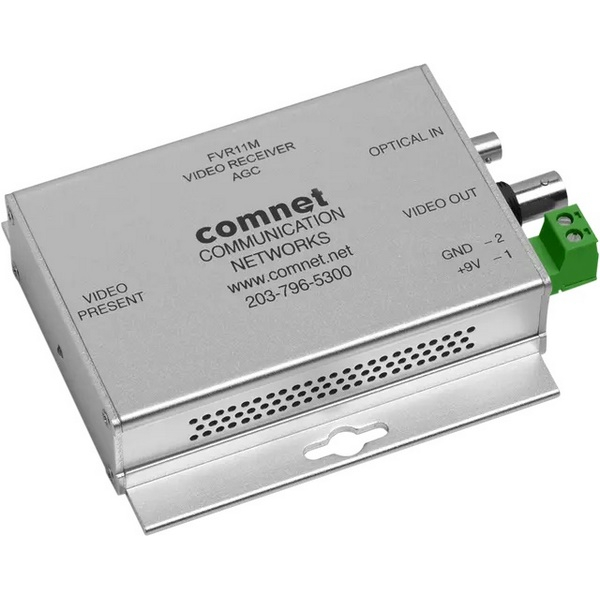

Comnet FVR11M Single Mini Video Receiver with Automatic Gain Control
Brand:
Comnet
Part #:
FVR11M
Condition:
Brand New
Brand New $352.60 /Each
$472.50 You save $119.90 25%
Free shipping
$352.60 /Each
$472.50 You save $119.90 25%
Manufacturer warranty Description
Features:
- AM Video Receiver
- NTSC, PAL, SECAM compatible
- Full range Automatic Gain Control (AGC)
- Full color compatibility
- No in-field electrical or optical adjustments required
- Designed to meet full compliance with the environmental requirements (ambient operating temperature, mechanical shock, vibration, humidity with condensation, high-line/low-line voltage conditions and transient voltage protection) of NEMA TS-1/TS-2 and the Caltrans Specification for Traffic Signal Control Equipment
- Voltage transient protection on all power and signal input/output lines provides protection from power surges and other voltage transient events
- Bi-Color (Red/Green) indicator to monitor system performance
- Units may be DIN-Rail mounted by the addition of ComNet model DINBKT1 or DINBKT4 adaptor plate
Applications:
- CCTV (Fixed Video)
The ComNet FVR11M video receiver detects an AM video signal on one multimode fiber optic cable. The receiver utilizes Automatic Gain Control (AGC) and is compatible with the ComNet FVT11M and the FVT20 transmitters. Plug-and-play design ensures ease of installation requiring no electrical or optical adjustments.
$352.60 /Each
$472.50 You save $119.90 25%
Free shipping
Technical details
Main features
- Wavelength FVR11: 850 nm, Multimode
- Power Operating Voltage Range: 8-15 VDC Power Consumption: 60 mA
- Connectors Optical: ST Power: Terminal Block Video: BNC (Gold Plated Center-Pin)
- Fiber Multimode 62.5/125µm
- Number of Fibers 1
- LED Indicators Video Present
- Video Output: 1 volt pk-pk (AGC controlled) Bandwidth: 5 Hz - 10 MHz¹ Differential Gain: <5% Differential Phase: <5° Tilt: <1% Signal-to-Noise Ratio (SNR): >55 dB @ 10 dB Attn. >60 dB @ 7 dB Attn. Max. RG-59 Coax Distance: 100 m (300 ft) - Camera to Fiber Optic Module to maintain 6 MHz Bandwidth
- Environmental MTBF: >100,000 hours Operating Temp: -40°C to +75°C Storage Temp: -40°C to +85°C Relative Humidity: 0% to 95% (non-condensing)²
- Maximum distance 4 km (2.5 miles)
- Electrical & Mechanical Circuit Board: Meets IPC Standard Size (Surface Mount): 4.0 x 3.7 x 1.0 in (10.4 x 9.5 x 2.7 cm) Shipping Weight: <1 lb / 0.45 kg
- Optical Pwr Budget 14 dB
- Fiber Required 1
