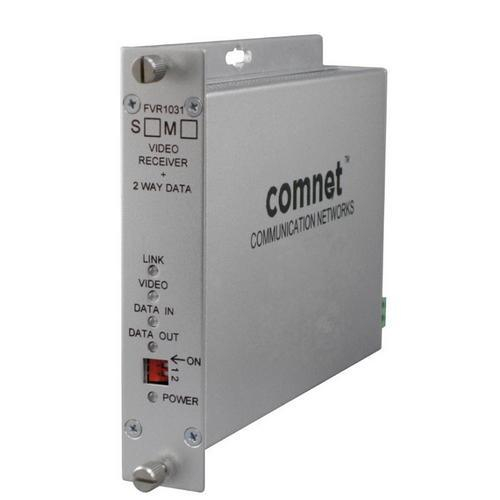

Comnet FVR1031S1 Digitally Encoded Video Receiver

Comnet, FVR1031S1, Digitally Encoded Video Receiver (10-Bit) with Bi-directional Data Transceiver.

Features:

• Supports RS232, RS422 or RS485 (2 or 4-wire) data interfaces
• Automatic resettable fuses on all power lines
• Status indicating LEDs provide rapid indication of critical operating parameters.
• Supports Pelco and Panasonic “UP-THE-COAX"; control signals for a distance up to 1500 feet (590 meters).
• Distances up to 43 mi (69 km)
• Voltage transient protection on all power and signal input/output lines provides protection from power surges and other voltage transient events.
• Compatible with NTSC, PAL, or SECAM Video Standards
• 10-bit digitally encoded short-haul video transmission meets the requirements of the EIA RS-250C standard.
• Designed to meet full compliance with the environmental requirements (ambient operating temperature, mechanical shock, vibration, humidity with condensation, high-line/low-line voltage conditions, and transient voltage protection) of NEMA TS-1/TS-2 and the Caltrans Specification for Traffic Signal Control Equipment.

For more information, please see Data Sheet
