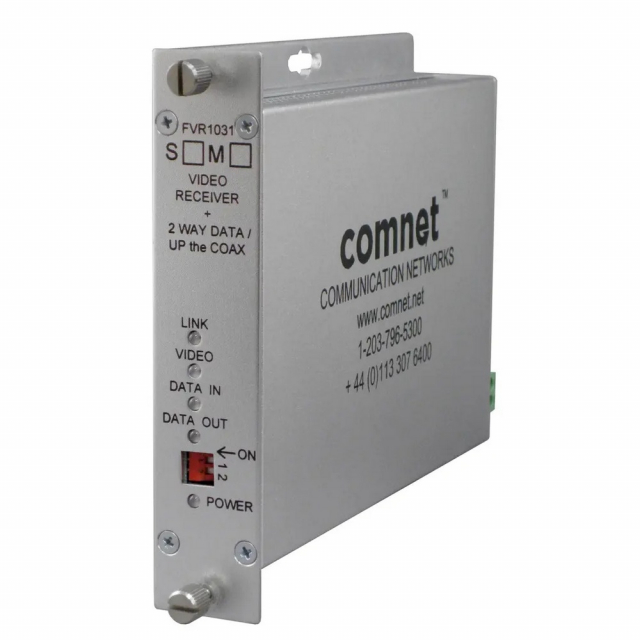

Comnet FVR1031M1 Analog Video Receiver/Data Transmitter Multimode
Brand:
Comnet
Part #:
FVR1031M1
Condition:
Brand New
Brand New $1,123.00 /Each
$1,585.00 You save $462.00 29%
Free shipping
$1,123.00 /Each
$1,585.00 You save $462.00 29%
Manufacturer warranty Description
Comnet, FVR1031M1, Analog Video Receiver/Data Transmitter 1 Channel Multimode 1 Fiber
Features:
- 10-bit digitally encoded video transmission
- Supports RS232, RS422 or RS485 (2 or 4-wire) data interfaces
- Compatible with all NTSC, PAL, or SECAM CCTV camera systems
- Supports Pelco and Panasonic "UP-THE-COAX" control signals for a distance up to 1500 feet (590 meters)
- Exceeds all requirements for RS-250C short-haul transmission: True broadcast video performance
- Designed to meet full compliance with the environmental requirements (ambient operating temperature, mechanical shock, vibration, humidity with condensation, high-line/low-line voltage conditions and transient voltage protection) of NEMA TS-1/TS-2 and the Caltrans Specification for Traffic Signal Control Equipment
- Voltage transient protection on all power and signal input/output lines provides protection from power surges and other voltage transient events
- Automatic resettable fuses on all power lines
- Distances up to 43 mi (69 km)
- Hot-swappable modules
- Interchangeable between stand-alone or rack mount use - ComFit
- May be DIN-rail mounted by the addition of ComNet model DINBKT1 or DINBKT4 adaptor plate
- Bi-color (Red/Green) LED status indicators provide rapid indication of critical operating parameters
Applications:
- High Performance CCTV with PTZ Camera Control
The ComNet FVT/FVR1031 transmits 10 bit digital video and full duplex data over one Singlemode or Multimode fiber. The video supports NTSC, PAL and SECAM CCTV camera systems. The data supports RS232, RS422 and RS485 (2W & 4W) at data rates up to 115 Kbps (NRZ). The FVT/FVR1031 series also supports "UP-THE-COAX" control signals for Pelco and Panasonic cameras with a maximum distance of 1500 feet (590 meters). The product is "Plug-and-Play" with no electrical or optical adjustments
$1,123.00 /Each
$1,585.00 You save $462.00 29%
Free shipping
Technical details
Main features
- Wavelength 1310/1550 nm, Multimode and Single Mode
- Power Operating Voltage Range: 8-15 VDC (or from C1 Rack, sold separately) Consumption: 2 W
- Connectors Optical: ST (Standard), SC or FC (Optional) Power: Terminal Block Video: BNC (Gold Plated Center-Pin) Data: Terminal Block
- Fiber Multimode 62.5/125µm
- Number of Fibers 1
- Optical Power Budget 16 dB
- Circuit Board Meets IPC standard
- LED Indicators Video Sync Presence Received Data Transmitted Data Optical Carrier Detect
- Video Input: 1V pk-pk (75 Ω) Overload: >1.5V pk-pk Bandwidth: 5 Hz - 10 MHz Differential Gain: <2% Differential Phase: <0.7° Tilt: <1% Signal-to-Noise Ratio (SNR): 67 dB @ Maximum Optical Loss Budget Max. RG-59 Coax Distance: 100 m (300 ft) - Camera to Fiber Optic Module to maintain 6 MHz Bandwidth
- Environmental MTBF: >100,000 hours Operating Temp: -40°C to +75°C Storage Temp: -40°C to +85°C Relative Humidity: 0% to 95% (non-condensing)
- Shipping Weight <2 lb / 0.9 kg
- Data Format: RS-232, RS-422, 2- or 4-wire RS-485 w/ Tri-State, Manchester, Bi-phase, Up-the-Coax Data Rate: DC-115 Kbps (NRZ)
- Maximum distance 3 km (2 mi)
- Electrical protection Automatic resettable solid-state current limiters
- Size (LxWxH) 6.1 x 5.3 x 1.1 in (15.5 x 13.5 x 2.8 cm)
- Rack Slots 1
- Optical Emitter Laser Diode
- Maximum UTC Distance 1 km (0.6 mi)
