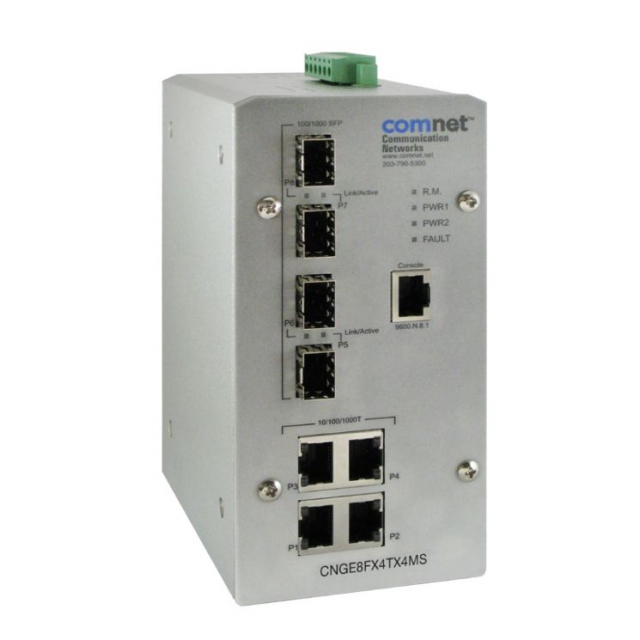

Comnet CNGE8FX4TX4MS Environmentally Hardened Managed Ethernet Switch

ComNet, CNGE8FX4TX4MS, Environmentally Hardened Managed Ethernet Switch with (4) 10/100/1000TX + (4) 100/1000FX SFP Ports

CNGE8FX4TX4MS Includes Only:

• DC Plug in Power Supply, 90-264VAC, 50/60Hz
• Ethernet Switch

Features:

• Environmentally hardened for direct deployment in difficult unconditioned out-of-plant and roadside installations
• 10/100/1000 BASE-TX and 100/1000 BASE-FX compatible
• Redundant power supply compatibility reduces possibility of single-point-of-failure for highest possible reliability
• Fully configurable through web-based or SNMP network management
• IGMP Snooping V1/V2 for multicast filtering and IGMP Query V1/V2
• Port based VLAN (IEEE 802.1Q)
• Rapid Spanning Tree protocol (IEEE 802.1W)
• Port Based Security
• Power Supply Included
• Uses customer-installed ComNet SFPs for compatibility with a wide range of optical fibers, optical connector types, and optical transmission distances (SFPs ordered separately).
• Designed to meet full compliance with the environmental requirements (ambient operating temperature, mechanical shock, vibration, humidity with condensation, high-line/low-line voltage conditions, and transient voltage protection) of NEMA TS-1/TS-2 and the Caltrans Specification for Traffic Signal Control Equipment.
• Electric Port Supports Auto-negotiation for Full Duplex or Half Duplex Data Throughput

Application:

• ITS Traffic Signalization & Surveillance/Incident Detection Networks
• Industrial and Factory Automation
• Integrated IP-Video and Data Transmission Networks

The ComNet CNGE8FX4TX4MS Managed Ethernet Switch provides transmission of (4) 100/1000 BASE-TX and (4) 10/100/1000FX combo ports. Unlike most Ethernet switches, these environmentally hardened units are designed for deployment in difficult operating environments Ports 1 - 4 support the 10/100/1000 Mbps Ethernet IEEE 802.3 protocol, and auto-negotiating and auto-MDI/MDIX features are provided for simplicity and ease of installation. Ports 5 - 8 are 10/100/1000 configurable for copper or 100/1000 fiber media for use with multimode or single mode optical fiber without need for configuration. These network managed layer 2 switches are optically and electrically compatible with any IEEE 802.3 compliant Ethernet devices. Plug-and-play design ensures ease of installation, and no electrical or optical adjustments are ever required.
