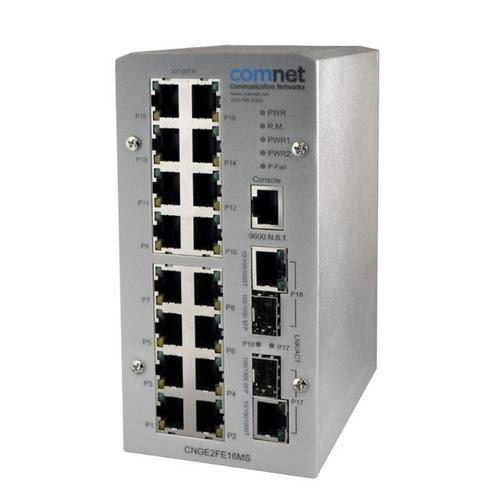

ComNet CNGE2FE16MS Managed Ethernet Switch

  • Brand ComNet
  • Part # CNGE2FE16MS
Availability
Discontinued
Share:

Replacement

This product is discontinued, no longer available. Replacement part numbers:

Comnet, CNGE2FE16MS, Managed Ethernet Switch with (16) 10/100TX + (2) Configurable 10/100/1000TX / 100/1000FX Ports.

Features with all optional accessories:

  • Electrical ports support 10/100/1000 Mbps Ethernet IEEE802.3 protocol
  • Rigid aluminum housing
  • Designed for wall or DIN rail mount installations
  • Environmentally hardened for direct deployment in difficult unconditioned out-of-plant and roadside installations
  • Compliant with EN60950-1 and UL Class 1, Division 2, Groups A, B, C and D for Hazardous Locations
  • Redundant power supply compatibility reduces possibility of single-point-of-failure for highest possible reliability
  • Fully configurable through web-based or SNMP network management
  • Rapid Spanning Tree protocol (IEEE 802.1W)
  • Power Supply Included
  • Port based VLAN (IEEE 802.1Q)
  • IGMP Snooping V1/V2 for multicast filtering and IGMP Query V1/V2
  • Designed to meet full compliance with the environmental requirements (ambient operating temperature, mechanical shock, vibration, humidity with condensation, high-line/low-line voltage conditions, and transient voltage protection) of NEMA TS-1/TS-2 and the Caltrans Specification for Traffic Signal Control Equipment.
  • Electric Port Supports Auto-negotiation for Full Duplex or Half Duplex Data Throughput
See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Reseller
Manufacturer Warranty

Technical Details

Reviews
Ethernet
Transfer Rate14,880pps for Ethernet port
148,800pps for Fast Ethernet port
1,488,000pps for Gigabit Fiber
Ethernet port Packet Buffer1Mbits
Mac Address8K MAC address table
Flash ROM4Mbytes
DRAM32Mbytes
Connectors
10/100TX16 x RJ45
10/100/1000TX/ SFP Combo2 x RJ45 + 2 x 100/1000 SFP sockets
RS232 connectorRJ45 type
Network Cable10Base-T: 2-pair UTP/STP Cat. 3, 4, 5 cable. EIA/TIA-568 100-ohm (100m)
100Base-TX: 2-pair UTP/STP Cat. 5/5E cable. EIA/TIA-568 100-ohm (100m)
1000Base-TX: 2-pair UTP/STP Cat. 5e or 6 cable. EIA/TIA-568 100-ohm (100m)
Optical Fiber
Multimode50/125µm - 62.5/125µm
Single Mode9/125µm
ProtocolCSMA/CD
LED16 x 10/100TX: Link/Activity (Green)
Full Duplex/Collision (Yellow)
Giga Copper: Link/Activity (Green)
Speed: 1000Mbps (Green)
SFP: Link/Activity (Green)
Power (Green), Power 1 (Green),
Power 2 (Green), Fault (Red), Master (Green
Power
Reserve Polarity ProtectionPresent
Overload Current ProtectionPresent
Power Supply12 - 48VDC, Redundant power with polarity reverse
protect function and removable terminal block
Power Consumption10.6 W
Mechanical
CaseMetal case. IP-30
InstallationDIN Rail (35mm track) or Wall Mount
Environmental
MTBF>220,000 hours
Operating Humidity5% to 95% (Non-condensing)
Operating Temperature-40C to 75C, Functional to 85ºC
Storage Temperature-40C – 85C
Compliance
EMIFCC Class A, CE EN61000-4-2 (ESD), CE EN61000-
4-3 (RS), CE EN61000-4-4 (EFT), CE EN61000-4-5
(Surge), CE EN55022, CE EN61000-4-6 (CS), CE
EN61000-4-8, CE EN61000-6-2, CE EN61000-6-4
IETF RFC
ComplianceRFC768-UDP, RFC783-TFTP, RFC791-IP RFC792-
ICMP, RFC793-TCP, RFC827-ARP, RFC854-Telnet,
RFC894-IP over Ethernet, RFC1112-IGMP
v1, RFC1519-CIDR, RFC1541-DHCP (client),
RFC2030-SNTP, RFC2068-HTTP, RFC2236-
IGMP v2, RFC2475-Differentiated Services,
RFC2865-Radius, RFC3414-SNMPv3-USM,
RFC3415-SNMPv3-VACM IETF SNMP MIBS
RFC1493-BRIDGE-MIB, RFC1907-SNMPv2-MIB,
RFC2012-TCP-MIB, RFC2013-UDP-MIB, RFC2578-
SNMPv2- SMI, RFC2579-SNMPv2-TC, RFC2819-
RMON-MIB, RFC2863-IF-MIB, draft-ietf-bridgerstppmib-03-BRIDGE-MIB, draft-ietf-bridgebridgemib-smiv2-03- RSTP-MIB, IANAifType-MIB
SafetyUL, cUL, CE/EN60950-1, UL 508 Class 1, Division
2, Groups A, B, C, & D for Hazardous Locations
Stability TestingIEC60068-2-32 (Free fall),
IEC60068-2-27 (Shock),
IEC60068-2-6 (Vibration)
Product Details
Ethernet
Transfer Rate14,880pps for Ethernet port
148,800pps for Fast Ethernet port
1,488,000pps for Gigabit Fiber
Ethernet port Packet Buffer1Mbits
Mac Address8K MAC address table
Flash ROM4Mbytes
DRAM32Mbytes
Connectors
10/100TX16 x RJ45
10/100/1000TX/ SFP Combo2 x RJ45 + 2 x 100/1000 SFP sockets
RS232 connectorRJ45 type
Network Cable10Base-T: 2-pair UTP/STP Cat. 3, 4, 5 cable. EIA/TIA-568 100-ohm (100m)
100Base-TX: 2-pair UTP/STP Cat. 5/5E cable. EIA/TIA-568 100-ohm (100m)
1000Base-TX: 2-pair UTP/STP Cat. 5e or 6 cable. EIA/TIA-568 100-ohm (100m)
Optical Fiber
Multimode50/125µm - 62.5/125µm
Single Mode9/125µm
ProtocolCSMA/CD
LED16 x 10/100TX: Link/Activity (Green)
Full Duplex/Collision (Yellow)
Giga Copper: Link/Activity (Green)
Speed: 1000Mbps (Green)
SFP: Link/Activity (Green)
Power (Green), Power 1 (Green),
Power 2 (Green), Fault (Red), Master (Green
Power
Reserve Polarity ProtectionPresent
Overload Current ProtectionPresent
Power Supply12 - 48VDC, Redundant power with polarity reverse
protect function and removable terminal block
Power Consumption10.6 W
Mechanical
CaseMetal case. IP-30
InstallationDIN Rail (35mm track) or Wall Mount
Environmental
MTBF>220,000 hours
Operating Humidity5% to 95% (Non-condensing)
Operating Temperature-40C to 75C, Functional to 85ºC
Storage Temperature-40C – 85C
Compliance
EMIFCC Class A, CE EN61000-4-2 (ESD), CE EN61000-
4-3 (RS), CE EN61000-4-4 (EFT), CE EN61000-4-5
(Surge), CE EN55022, CE EN61000-4-6 (CS), CE
EN61000-4-8, CE EN61000-6-2, CE EN61000-6-4
IETF RFC
ComplianceRFC768-UDP, RFC783-TFTP, RFC791-IP RFC792-
ICMP, RFC793-TCP, RFC827-ARP, RFC854-Telnet,
RFC894-IP over Ethernet, RFC1112-IGMP
v1, RFC1519-CIDR, RFC1541-DHCP (client),
RFC2030-SNTP, RFC2068-HTTP, RFC2236-
IGMP v2, RFC2475-Differentiated Services,
RFC2865-Radius, RFC3414-SNMPv3-USM,
RFC3415-SNMPv3-VACM IETF SNMP MIBS
RFC1493-BRIDGE-MIB, RFC1907-SNMPv2-MIB,
RFC2012-TCP-MIB, RFC2013-UDP-MIB, RFC2578-
SNMPv2- SMI, RFC2579-SNMPv2-TC, RFC2819-
RMON-MIB, RFC2863-IF-MIB, draft-ietf-bridgerstppmib-03-BRIDGE-MIB, draft-ietf-bridgebridgemib-smiv2-03- RSTP-MIB, IANAifType-MIB
SafetyUL, cUL, CE/EN60950-1, UL 508 Class 1, Division
2, Groups A, B, C, & D for Hazardous Locations
Stability TestingIEC60068-2-32 (Free fall),
IEC60068-2-27 (Shock),
IEC60068-2-6 (Vibration)
Note

Note: Please read description carefully. Do not base your order on the picture presented.
