Clean Comfort CC6-ESP-KIT ESP 6-Zone Universal Zone Panel Kit

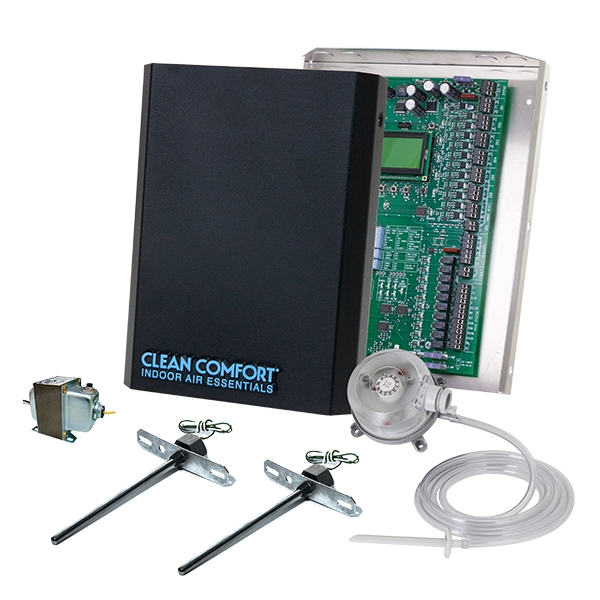

CC6-ESP-KIT Includes Only:

• Panel
• Static pressure sensor
• Duct temperature sensor
• 40VA transformer

Features:

• 6 zones standard, expandable up to 12 with a second panel
• Auto changeover
• Cooling priority or majority wins technology
• Twenty-minute timeshare option
• Humidification/Dehumidification pass-throughs
• Staging by zone thermostat or stage timer
• DK and BK terminals compatible with most variable speed blowers
• Requires 3 wire power-open, power-close dampers
• Adjustable high and low limit
• Adjustable high and low balance point
• Equipment fault pass-through indicator
• LCD displays
  • Discharge air temperature
  • Return air temperature
  • Outdoor temperature
• No Bypass Required!

The CC6 with ESP is a 6-zone, two-position forced air zone control panel that can be expanded to as many as 12 zones. The panel can be used with single-stage, multi-stage, heat pump, or dual fuel equipment with up to 4 stages of heating and 2 stages of cooling. Slide switch configuration makes setup quick and easy. This zone control system comes with built-in ESP static pressure control which eliminates the need for a bypass damper when used with the standard 3-wire MD damper series. A wide range of control options provides ultimate application flexibility.

For more information, please see Data Sheet
