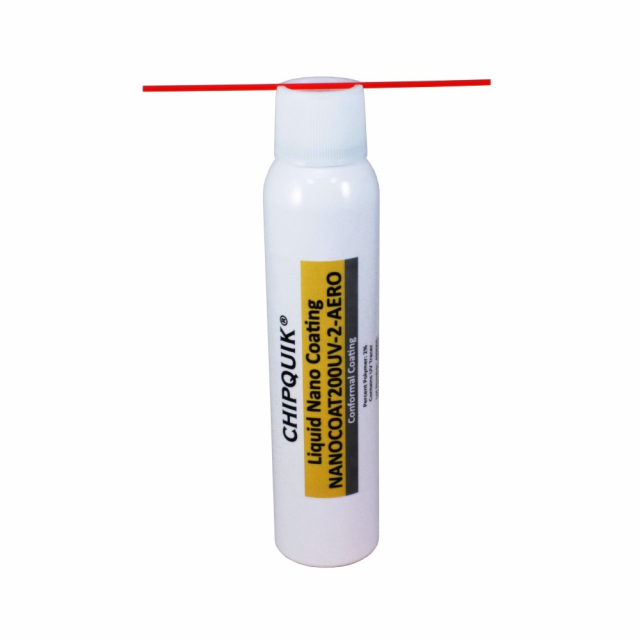

Chip Quik, NANOCOAT200UV-2-AERO, Liquid Nano Coating, 2% Polymer with UV Tracer, 170ml Aerosol, 252g
Features:
- Lead-Free
- RoHS 3 Compliant
- REACH Compliant
- Compressed Gas. Please only select UPS Ground Shipping service if ordering this product.
- Adheres to plastic, metal, glass, ceramic, PTFE, PCBs, RoHS, REACH, WEEE compliant.
- Cost-effective alternative to traditional coatings.
- No VOCs.
- Repels oil and water.
- Resistant to Isopropyl Alcohol (IPA).
- Easy to apply.
- Short processing times.
- Solder through repairable.
- Chemically resistant.
- Easily reworkable.
Product Uses:
- Fluidic Devices, Biomedical Devices, Printed Circuit Boards, Micro Motors, Ball Bearing Tracks, MEMS, Inkjet Print Heads, LED assemblies, Metal Mesh.
Biocompatibility
NANOCOAT200 dried film is biocompatible (not harmful to living tissue).
Resistance to chemical and mechanical attack
The nano coating itself is electrically non-conductive. However, at 0.1um thickness, measurement probes can mechanically penetrate the coating. At 0.1um the coating is resistive to oil and water.
Cleaning
Brushes used to apply Liquid Nano Coating can be soaked in IPA when not in use, to help limit coating of the brush bristles. Allow the IPA to evaporate off before using the brush to apply more Liquid Nano Coating.
UV Tracer Fluorescence Bandwidth
For Nano Coat part numbers containing the letters "UV", UV tracer has been added to enable verification that the coating has been applied. The UV tracer makes the coating visible when ultra violet light in the bandwidth of 400-500nm is directed at the coating.
Transportation
This product requires ground shipping. Shipping below 0C (32F) or above 25C (77F) for normal transit times by ground will not impact this product's stated shelf life.
