Chip Quik, MPH-ETD, 0.1" 40 Pin Machine Pin Header for PCB Edge to DIP Conversion
Features:
- Lead-Free
- RoHS 3 Compliant
- REACH Compliant

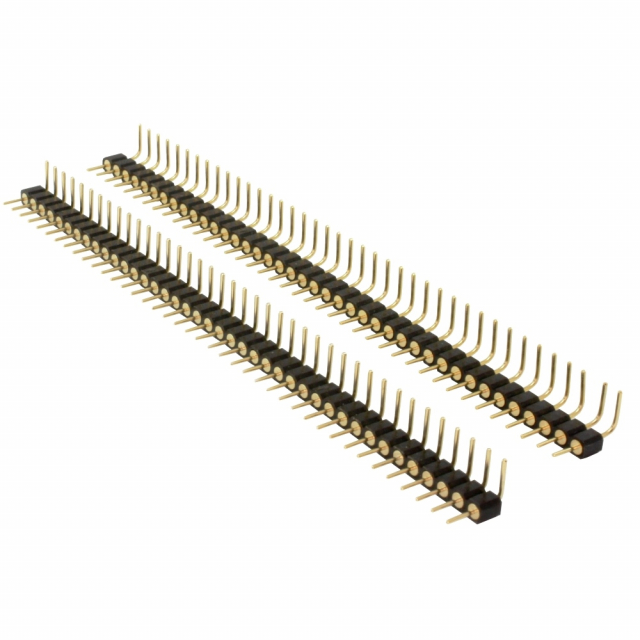

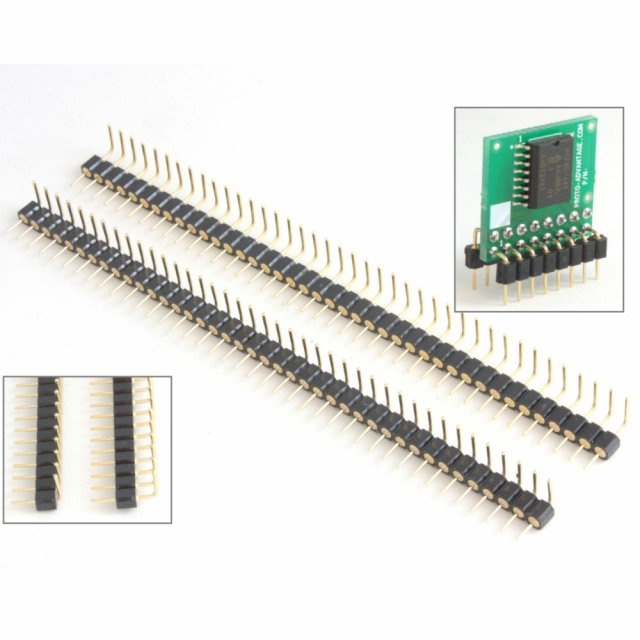

Includes two 40 pin, Gold, Right Angle Machine Pin Headers with different pin lengths so they can be placed in two rows of 0.9 mm diameter plated through holes spaced 2.54mm (0.1") apart, with 2.54mm (0.1") pitch, and pin out to a standard DIP 300 (0.3" body width) footprint with 0.1" pitch.
Allows PCB to stand vertically.
These machine pins (0.45mm diameter round) are designed to fit legacy DIP footprint plated through holes. They are the recommended pin type to use for production adapters to replace legacy parts.
For breadboard prototypes, where a larger pin size is allowed, we recommend using wire wrap pin headers (0.64mm square) instead, Part Number: HDR-ETD.
