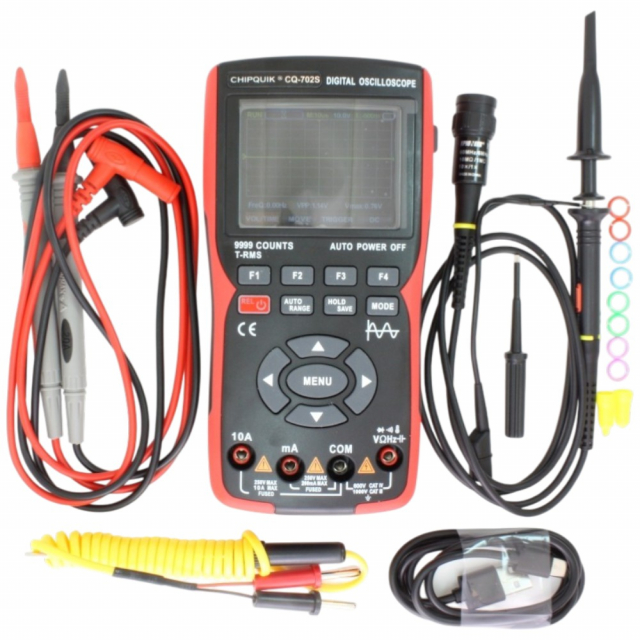

Chip Quik, CQ-702S, Digital Oscilloscope, 10MHz Bandwidth, 48MSa/s Sampling Rate

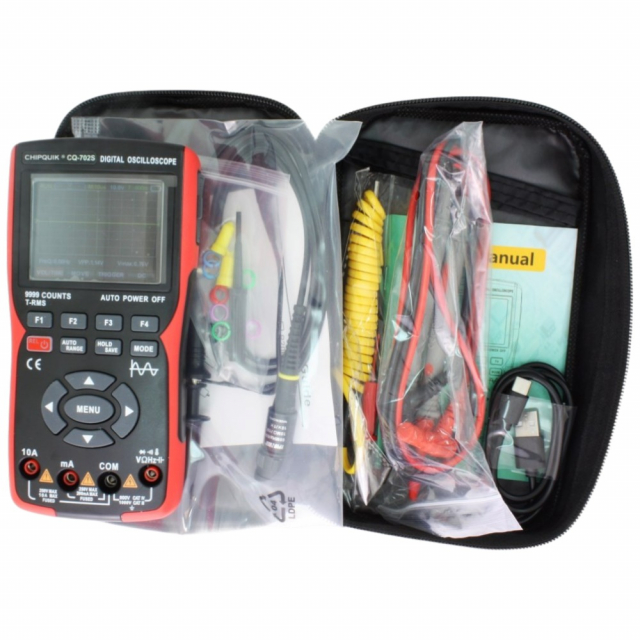

CQ-702S Includes Only:

Features:

How to access CHIPQUIK CQ-702S Digital Oscilloscope screen captures

While using the oscilloscope, press and hold the "HOLD SAVE" button, and it will capture the screen image of the waveform.
Plug the oscilloscope into your computer using the USB-C port. With the oscilloscope powered on, press "MENU", hit the Right arrow two times to cycle the menu options shown above the F1, F2, F3 and F4 keys. You should see "Storage ENTER" above the "F3" key. Press the "F3" key, which will put the Oscilloscope into a mode that makes it appear as a USB disk drive to your computer.
Open your File Explorer program on your computer, and you should see a drive letter show up labeled "DISK". Cli-ck on the "DISK" drive on your computer and you should see two folders inside: firmware and pic. Double-cli-ck the "pic" folder, and inside you should see all your screen image captures.
On the oscilloscope, press "F2" to exit the USB disk drive function.

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Bandwidth	10MHz
Sampling rate	42MSa/s real-time sampling
Channels	1
Input Coupling	AC/DC
Input Resistance	1Mohm at 16pF
Probe Attenuation	X1, X10
Max Input Voltage	150V (DC + AC peak)
Horizontal sample rate range	1.5 to 48 MSa/s
Waveform interpolation	(sinx)x
Sweep speed range	100ns/div to 20s/div
Time Base Accuracy	20ppm
Record Length	Max 64Kbyte
Vertical sensitivity	20mV/div to 10V/div
Displacement range	4 cells (positive and negative)
Analog Bandwidth	10MHz
Low Frequency Response	>10Hz
Rise Time	<10ns
DC Gain Accuracy	+/- 3%
Automatic Measurement	Period, Frequency, Peak-to-Peak Value, Maximum Value, Minimum Value, Effective Value
Trigger Method	Auto, Normal, Single
Trigger Edge	Rising Edge, Falling Edge
Power supply	Powered by 1x 18650 Lithium Ion Rechargeable Battery (Included, pre-installed)
Charging	USB-C charging, comes with USB-A to USB-C charge cable, requires USB-A 5VDC power adapter to connect to 120VAC power for charging (not included)
Weight	734 g (includes bag and all parts)

Bandwidth	10MHz
Sampling rate	42MSa/s real-time sampling
Channels	1
Input Coupling	AC/DC
Input Resistance	1Mohm at 16pF
Probe Attenuation	X1, X10
Max Input Voltage	150V (DC + AC peak)
Horizontal sample rate range	1.5 to 48 MSa/s
Waveform interpolation	(sinx)x
Sweep speed range	100ns/div to 20s/div
Time Base Accuracy	20ppm
Record Length	Max 64Kbyte
Vertical sensitivity	20mV/div to 10V/div
Displacement range	4 cells (positive and negative)
Analog Bandwidth	10MHz
Low Frequency Response	>10Hz
Rise Time	<10ns
DC Gain Accuracy	+/- 3%
Automatic Measurement	Period, Frequency, Peak-to-Peak Value, Maximum Value, Minimum Value, Effective Value
Trigger Method	Auto, Normal, Single
Trigger Edge	Rising Edge, Falling Edge
Power supply	Powered by 1x 18650 Lithium Ion Rechargeable Battery (Included, pre-installed)
Charging	USB-C charging, comes with USB-A to USB-C charge cable, requires USB-A 5VDC power adapter to connect to 120VAC power for charging (not included)
Weight	734 g (includes bag and all parts)

Note: Please read description carefully. Do not base your order on the picture presented.
