BZBGEAR BG-A1616MD 16x16 Audio Matrix DSP Processor

BZBGEAR, BG-A1616MD, 16x16 Audio Matrix DSP Processor with 12 Mic/Line In/Out + 4 Dante In/Out. Supports AEC, ANS, Filter, Limiter, EQ, Delay, and Pre-Amp

BG-A1616MD Includes Only:

• 1 x Digital Audio Processor with DANTE
• 1 x AC 100~240V 50/60Hz Power Cord
• 1 x 3pin-3.81mm Phoenix Connectors (Male)
• 1 x 10pin-3.81mm Phoenix Connectors (Male)
• 6 x 12pin-3.81mm Phoenix Connectors (Male)
• 2 x Mounting Ears (Wall Mount)
• 8 x Machine Screws (KM3x4)
• 1 x User Manual

Features:

• Dante ports: Four DANTE ports for low-latency audio processing
• Auto mixer: for prioritizing microphone inputs
• Quality control: Adaptive feedback suppression, full-band acoustic echo cancellation, and dynamic adaptive noise reduction technologies
• DSP Modules: Fine-tuning audio signals with DSP modules (Expander, Equalizer, Compressor, Auto Gain Control, Limiter, High Pass Filter, Low Pass Filter, and Delay)
• Windows compatibility: Seamless compatibility with Windows 7 and Windows 10 platforms
• Advanced control: Advanced control capabilities through RS-232 serial commands control
• 12-ch MIC/linear inputs
• 12-ch linear outputs
• Seamless audio signal routing with 12-ch balanced/unbalanced MIC/linear inputs and 12-ch balanced/unbalanced linear outputs
• DANTE network audio interfaces
• Intuitive interface for easy configuration, volume control, monitoring, and scene management
• 48V phantom power supply for all 12-ch MIC inputs
• 48KHz sampling rate and 24-bit A/D or D/A conversion for high-fidelity audio reproduction
• 8-ch programmable GPIO function for enhanced flexibility and control
• Standard RJ45 interface control for easy integration into existing setups
• High Signal-to-Noise ratio for a clear, clean, and resonant sound

The BG-A1616MD Digital Audio Processor is a versatile solution designed for video conferences, distance learning, and telemedicine applications. With its advanced features and intelligent algorithms, this processor delivers exceptional audio quality and seamless control. It is equipped with 12-ch MIC/linear inputs, 12-ch linear outputs, and four DANTE ports for low-latency audio processing. This powerful processor is ready to use immediately, ensuring hassle-free installation and project implementation.

Advanced Audio Processing Features

The BG-A1616MD Digital Audio Processor incorporates a range of advanced audio processing features. It includes full-band Adaptive Echo Cancellation (AEC), which effectively eliminates echoes for clear and resonant sound. The Adaptive Noise Suppression (ANS) technology reduces background noise, ensuring clean audio signals. The Automatic Gain Control (AGC) feature adjusts the microphone input levels automatically, maintaining a consistent volume. Additionally, the Auto Mixer function allows you to prioritize microphone inputs when multiple microphones are used simultaneously. These features work together to provide a high Signal-to-Noise ratio and deliver exceptional audio quality.

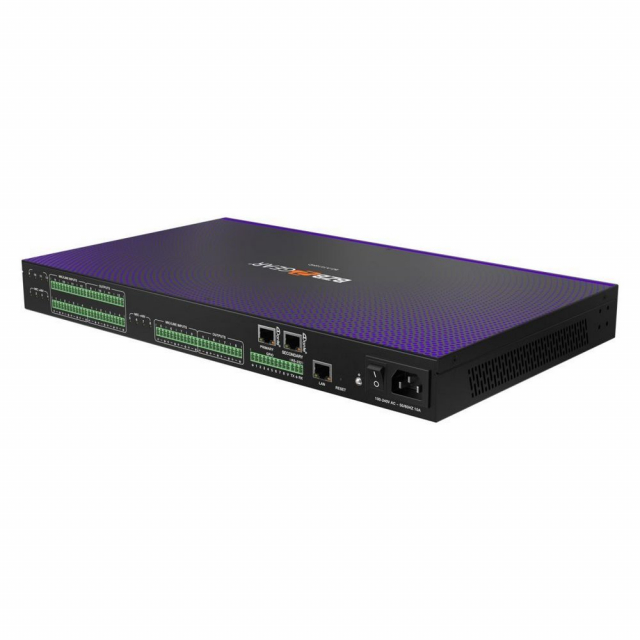

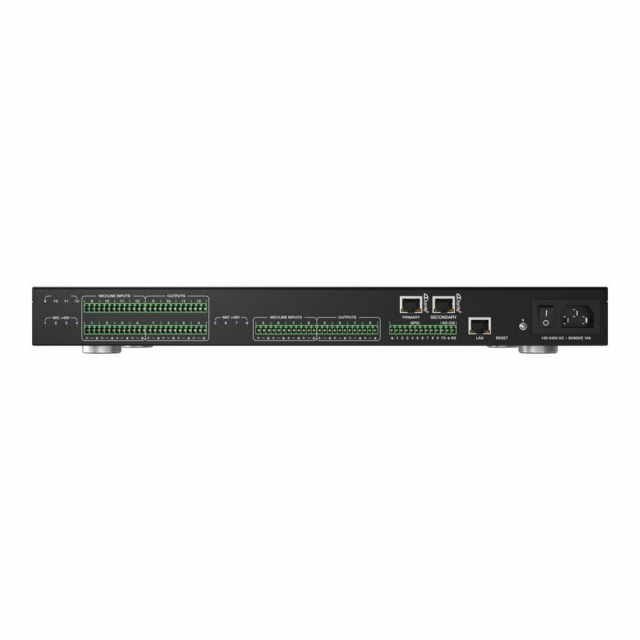

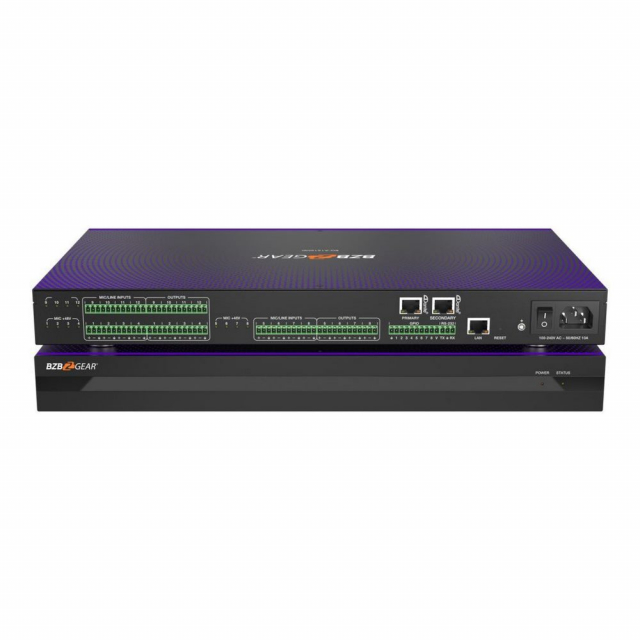

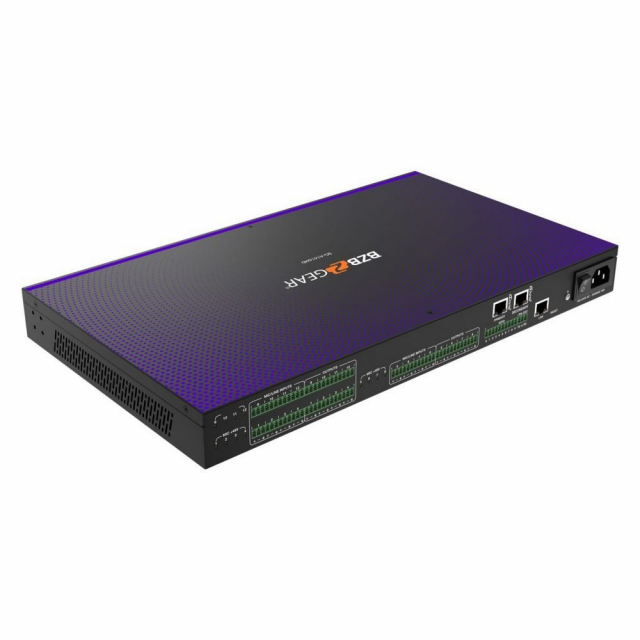

Interfaces:

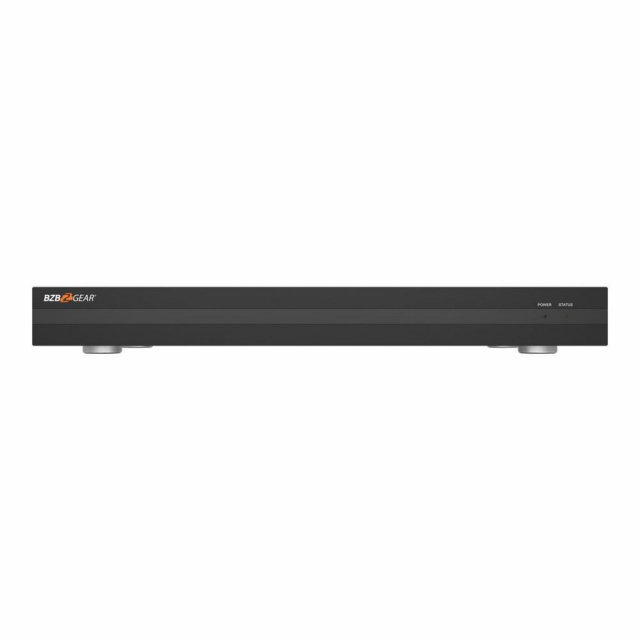

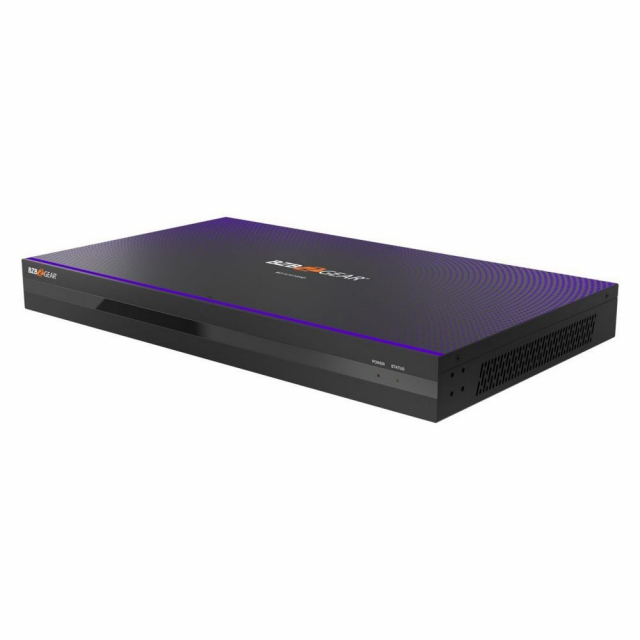

1. POWER LED: When the device is powered on, the red LED will illuminate.
2. STATUS LED: When the device is running normally, the green STATUS LED will flash.
3. MIC +48V: 12 phantom power supply indicators.
4. MIC/LINE INPUTS: 12-ch balanced MIC/linear inputs, used for connecting audio source devices via phoenix connectors.
5. OUTPUT: 12-ch balanced linear outputs, used for connecting Amplifiers or speakers via phoenix connectors.
6. DANTE: 2 Standard DANTE network audio transmission interfaces.
7. LAN: Standard RJ45 interface for network connection.
8. RESET: Used for resetting the audio processor.
9. GND: Connect outer housing to the ground.
10. Power Switch & Power Port: Power switch and AC 100-240V power input port.
11. GPIO: 8-ch programmable GPIO interfaces.
12. RS-232: Connect to PC or control system for transmitting RS-232 control commands.
