The Air-Eagle XLT is an RF system designed for long range wireless remote control of electrical apparatus in a variety of industrial applications. Systems can consist of any number of receivers and handheld or contact input transmitters working together to create a long range radio frequency system that operates hazardous or hard-to-reach equipment from safe, convenient locations. Eight user selectable frequencies allow multiple systems to be used in the same area without interference.

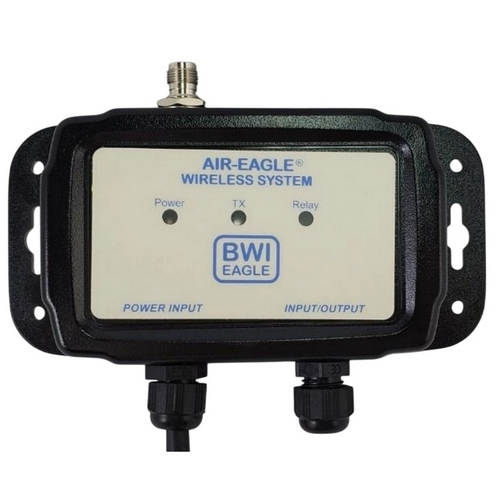

This transmitter is equipped to send one independent dry-contact input command to an Air-Eagle XLT receiver located up to 2500 feet away. Longer ranges can be achieved with external antennas. The Air-Eagle XLT transmitter utilizes spread-spectrum technology and provides the utmost in security and reliability.
Series Features
The "441" Series Features repeating capability. Transmitters can be set up to send "repeat signal packets", and any transmitter or receiver within its range will repeat the signal packet to help propagate communication over widespread areas.
General Operation
A closure on the input transmits a command to activate relay 1 in the remote receiver (or another relay as selected by the channel code transmitted). The transmission continues as long as the input is closed and ceases when the input opens.
For more information, please see
Data Sheet
