Buy BWI Eagle 36-10100-DC, Air-Eagle SR Plus Transmitter, Single Input

info@PrimeBuy.com

1-855-969-9322
1-908-282-3332 (Intl.)

Options and Related Products

BWI Eagle, 36-10100-DC, Air-Eagle SR Plus 2.4GHz Transmitter, Single Dry Contact Input, 9-36VDC Powered

Features:

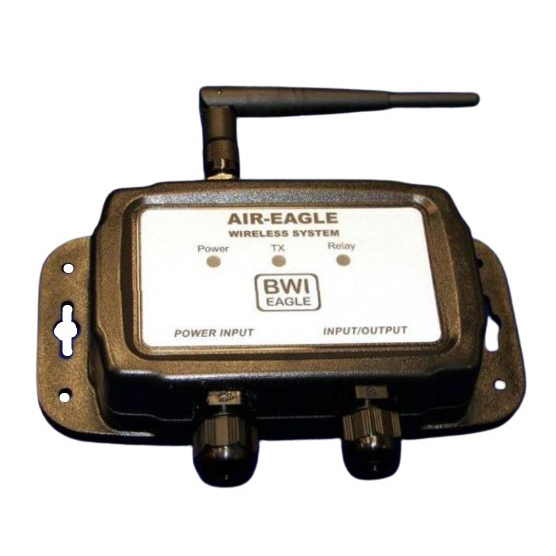

The AIR-EAGLE SR PLUS TX is an R.F. transmitter capable of sending a single dry contact input command to an Air-Eagle SR Receiver from up to 600 feet away.
Any number of transmitters and receivers can be combined to create a medium-range remote control system that operates hazardous or hard-to-reach electrical apparatus from safe, convenient locations.
This unit has eight user-selectable network frequencies to allow multiple systems to operate simultaneously in the same area without interference.

For more information, please see Data Sheet

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Power Input	9 - 36 VDC, 5 W
Battery Type	(2) 1.5V lithium or alkaline each, size AA, to equal 3.0VDC nominal.
RF Output Power	60 mW
Transmitter Range	Up to 600 Feet
RF Networks	Eight Independent Frequencies
Digital Addresses	Sixteen
Antenna Connection	TNC Female
Enclosure	Polycarbonate NEMA 4, 12, 13 - IP66
Operating Temperature	-40° F to +185° F
Weight	Approx 2 lbs

Power Input	9 - 36 VDC, 5 W
Battery Type	(2) 1.5V lithium or alkaline each, size AA, to equal 3.0VDC nominal.
RF Output Power	60 mW
Transmitter Range	Up to 600 Feet
RF Networks	Eight Independent Frequencies
Digital Addresses	Sixteen
Antenna Connection	TNC Female
Enclosure	Polycarbonate NEMA 4, 12, 13 - IP66
Operating Temperature	-40° F to +185° F
Weight	Approx 2 lbs

Note: Please read description carefully. Do not base your order on the picture presented.
