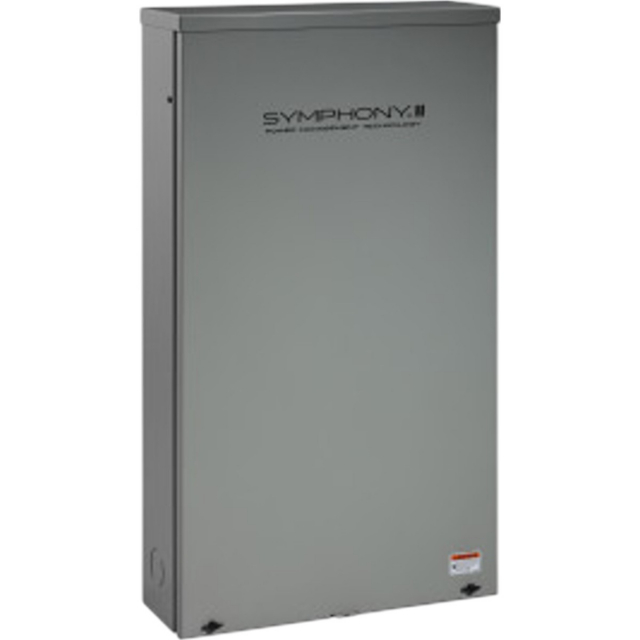

Briggs & Stratton, 071257, Dual 200A/Split 400A 13PH-120/240V Service Rated Nema 3R Automatic Transfer Switch with Symphony Choice

Features:

The Dual 200A Split 400A Transfer Switch replaces the need for two 200 amp transfer switches in standard split 400A service homes with two 200A distribution panels.
This 2 in 1 transfer switch must be bundled with a Briggs & Stratton standby generator.
Easy installation. Smaller footprint. More for less, from the Power Experts.

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Rated AC Voltage (VAC)	120 / 240 VAC
Frequency (Hz)	60
Number of Poles	2 x 2
Phase	Single
Operating Ambient Temperature (°C / °F)	-20° to 120°F (-28° to 49°C)
Current Rating (amp)	2 x 200
SED Rated	Yes
Short Circuit Withstand and Closing Rating (AIC)	22000
Enclosure Material	Galvannealed Steel
Coating Color	Stone Gray Texture
Load Transition Type (Automatic)	Break Before Make
Controller Type	Basic Relay Logic Board
Brown-out Protection	Yes - Genset Controller Monitored
Outage to Standby Power Time	33 Second
Priority Load Management System	Symphony Choice Installed
Power Management System	TRCM+
Utility Voltage Pickup	> 90%
Utility Voltage Drop-Out	< 88%
Lug Range - Utility	2AWG - 300kcmil
Lug Range - Generator	6AWG - 250kcmil
Lug range - Load	6AWG - 250kcmil
Certifications and Compliance
US Listed per UL1008	Yes
Canada Listed per UL1008	Yes
NFPA 70 2023 National Electrical Code	Yes
Assembled Dimensions (Length x Width x Height)	37.2" L x 23.9" W x 7.6" H
Assembled Weight	104 lbs
Packaged Dimensions (Length x Width x Height)	40" L x 27" W x 10.3" H
Packaged Weight	114 lbs

Notes
