Brigade Electronics 7135 Backsense BS-8100 77GHz Radar System Kit

Brigade Electronics, 7135, Backsense BS-8100 77GHz Programmable Radar Object Detection System Kit

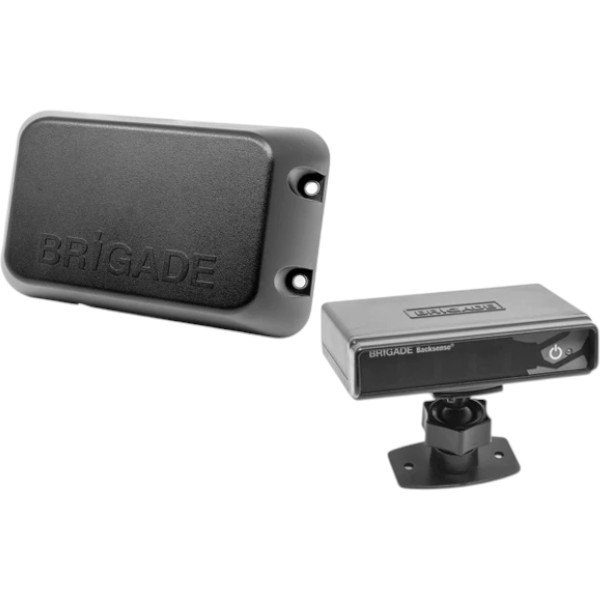

7135 Includes Only:

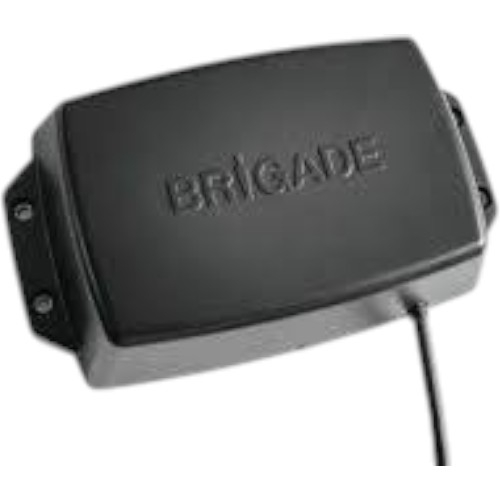

• 1 x Configurable radar sensor
• 1 x Audible and visual display with USB socket and mounting bracket
• 1 x 9m extension cable
• 1 x Mini USB cable

Features:

• 9-32Vdc
• Detection length: up to 60m (minimum programmable distance 0-3m)
• Detection width: 2 to 16m
• Rugged design for harsh environmental conditions
• Frequency-modulated continuous wave (FMCW) radar technology
• Quick reaction time
• Effectively detects stationary, moving and multiple objects
• 1 activation input
• 1 trigger output
• Programmable:
  • Detection area
  • Blind zones - the system ignores fixed objects
• Buzzer (70 to 90 dB(A) at 1m)

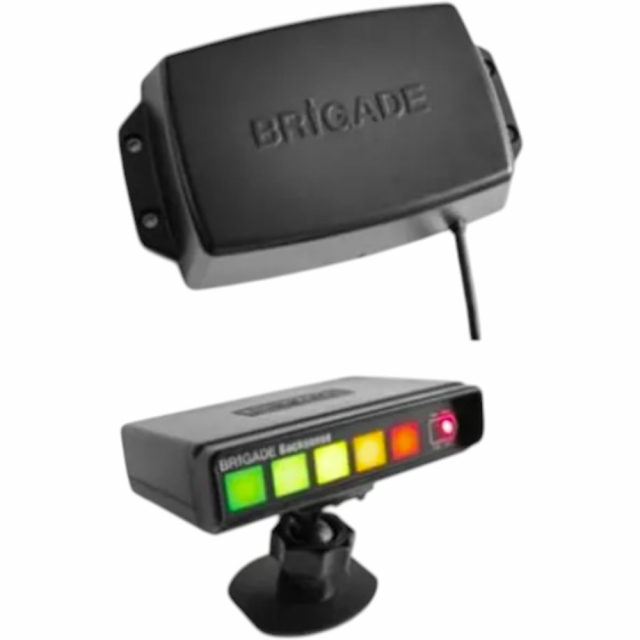

• 5-stage adjustable audible and visual distance warning display
• Sensor resistant to water, moisture, dust, vibration, heat, cold, mud and glare

Approved Standards:

• CE - (Radio Equipment Directive 2014/53/EU, RoHS)
• UKCA - (Radio Equipment Regulation S.I. 2017/1206, RoHS)
• ‘E' Mark - (UNECE Regulation 10 Revision 05)
• FCC - (47 CFR Part 15 Subpart B, 47 CFR Part 95M, 47 CFR Part 2.1091)
• ICES, ISED - (ICES-003 Issue 7 Class B, RSS-251 Issue 2 and RSS-Gen 5,RSS-102 Issue 5)
• Elements of ISO 16750:2012

Designed to Accurately Detect Objects in Blind Spots

Backsense® heavy-duty radar proximity sensor systems are designed to detect objects in blind spots, significantly reducing incidents. They detect stationary and moving objects, providing the driver with in-cab visual and audible warnings - alerting the operator whose attention cannot be focused on all danger areas. Backsense® obstacle detection sensors work effectively in harsh environments and in poor visibility including darkness, smoke and fog.
