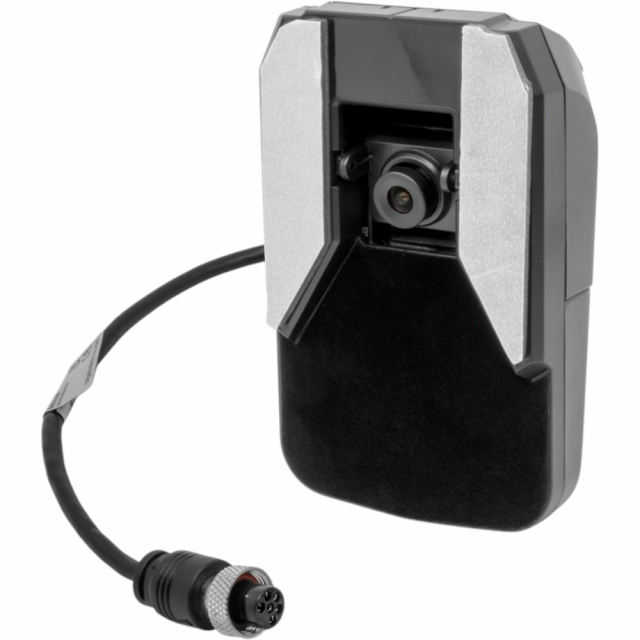

Brigade Electronics 5935A IP-1000C Internal Forward-Facing IP Camera

Brigade Electronics, 5935A, IP-1000C Internal Forward-Facing IP Camera, Audio, 1080p

5935A Includes Only:

• 1x IP-1000C-C IP Camera
• 1x IP-1000C-FIX Fixing Kit
• 1x IP-1000C-QSC Quick-Start Card

Features:

• Windscreen-mounted camera. High-definition picture quality.
• Adjustment range in assembly 0° downwards to 71° (camera housing obstruction will appear below 46°)
• Plug & Play compatibility with MDR 600 Series - MDR 600 will automatically detect and set up connected IP cameras
• Compatible with MDR 500 Series
• Image orientation - normal (default), mirror, vertical flip, mirror & vertical flip. Adjustable (setting via web interface)
• Built-in web server supports web browser access for configuration
• Various camera OSD items configurable over web interface.
• Integrated microphone
• Supports Power over Network (PON) via the 6-pin Brigade IPC Type female connector (Incompatible with Power over Ethernet (POE) networks)
• Anti-reflective camera lens surface treatment
• WDR, back light compensation, automatic white balance

Approved Standards:

• CE - (2014/30/EU & 2011/65/EU)
• UKCA - (S.I. 2016/1091, S.I. 2012/3032)
• FCC - (47 CFR Part 15 Subpart B)
• IC - (ICES-003:2020 (Issue 7))
• E-Mark - (UNECE Regulation 10 Rev. 6)
• Elements of ISO 16750:2012
• RoHS3
• REACH

Brigade's Forward-Facing camera is flush mounted to the windscreen, avoiding reflections and giving high quality video of the road ahead and includes a microphone for recording audio.
