Bogen WBS8T725BRV 8" 4W Loudspeaker in Wall Baffle Walnut, Screw Terminals
Brand:
Bogen
Part #:
WBS8T725BRV
Condition:
Brand New
Brand New $93.06 /Each
$143.75 You save $50.69 35%
There is a $100.00 minimum order required when purchasing "Bogen" products
$93.06 /Each
$143.75 You save $50.69 35%
There is a $100.00 minimum order required when purchasing "Bogen" products
Manufacturer warranty Description

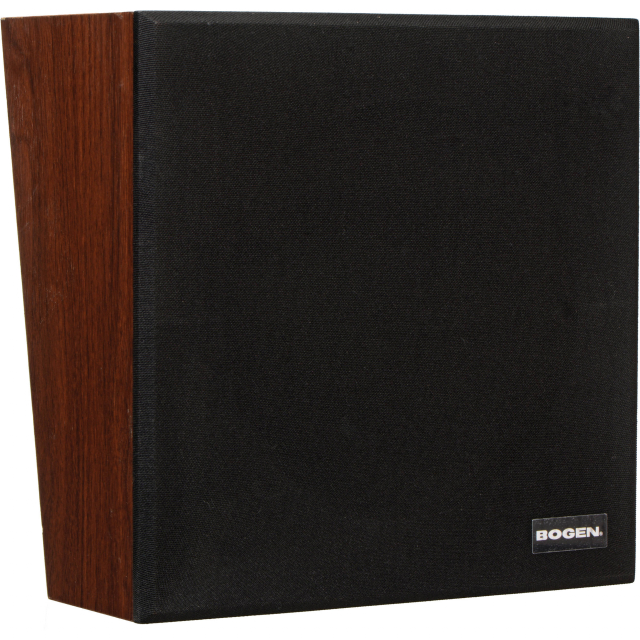

Finished in simulated walnut with a black grille cloth, the Bogen Communications WBS8T725BRV is an 8" 4W loudspeaker fully assembled in a wall baffle for paging, talkback, background music, and security applications in schools, warehouses, offices, and more. When fed from a 25V or 70V amplifier, the 8" cone-type loudspeaker delivers a power output of up to 4W, a maximum SPL of 95 dB, and a frequency response of 50 Hz to 12 kHz. The onboard transformer features six power taps to accommodate a variety of configurations.
Technical details
Main features
- Inputs Screw terminals
- Weight Magnet: 6 oz / 170 g
- Frequency Response 50 Hz to 12 kHz
- Package Weight 4.5 lb
- Box Dimensions (LxWxH) 10.1 x 9.9 x 5.9"
- Impedance 25 V or 70 V
- Dimensions (W x H x D) 9.5 x 9.5 x 5.3" / 24.1 x 24.1 x 13.3 cm (top) 9.5 x 9.5 x 3.3" / 24.1 x 24.1 x 8.3 cm (base)
- Maximum SPL 95 dB at 4' on axis with 1 W input
- Construction Material Enclosure: 0.4" / 1 cm particle board Surface: Simulated walnut vinyl
- Power Taps Ws at 25 V or 70 V: 1/8, 1/4, 1/2, 1, 2, 4
- Speaker Size 8" / 20.3 cm with 0.8" / 1.9 cm voice coil
- Maximum Output 4 W
