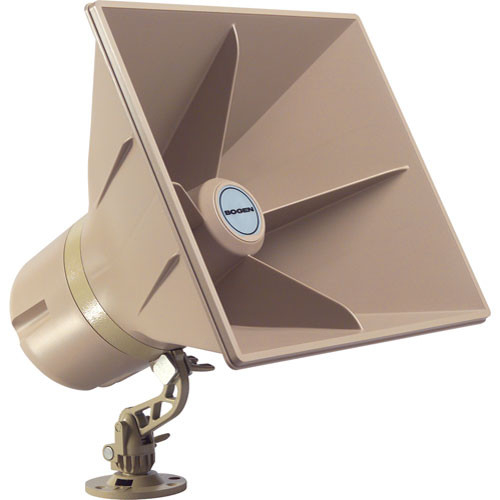

Bogen SAH15 High-Efficiency Switching Self-Amplified Horn, 15W
Brand:
Bogen
Part #:
SAH15
Condition:
Brand New
Brand New $186.40 /Kit
$299.22 You save $112.82 38%
Manufacturer warranty Description
SAH15 Includes Only:
- Horn speaker
- Access Cover
- Mounting Base
- Electrical Box Strap
- Tapered Pin
- Wing Nut
- Electrical Box Strap
The Bogen Communications SAH15 is a 15W high-efficiency digital switching self-amplified horn offering extended frequency response and versatile positioning for paging, talkback, background music, and security applications in work sites, schools, parking lots, warehouses, and more. With a built-in amplifier, it delivers a 15W output, a maximum SPL of 124 dB, and a frequency response of 275 Hz to 14 kHz while maintaining low heat dissipation and low current draw. It operates via a 24 VDC power source.
Technical details
Main features
- Weight 6 lb / 2.7 kg
- Current Consumption 9 CU / 450 mA typical
- Frequency Response 275 Hz to 14 kHz
- Power (W) 15
- Power Rating 15 W
- Package Weight 7.2 lb
- Box Dimensions (LxWxH) 12 x 12 x 10"
- Power Requirement 24 VDC nominal
- Dimensions (W x H x D) 10.6 x 12.0 x 11.5" / 27.0 x 30.5 x 29.2 cm
- Maximum SPL 124 dB
- Input Impedance 2 kOhms
- Construction Material Housing: UV-protected plastic Mount: Cast aluminum
- Dispersion 120 x 90°
- Input Sensitivity 125 mVrms
- Magnet Size: 3.5" / 9 cm Weight: 12 oz / 340.2 g
- Voice Coil Diameter 1.6" / 4.1 cm
