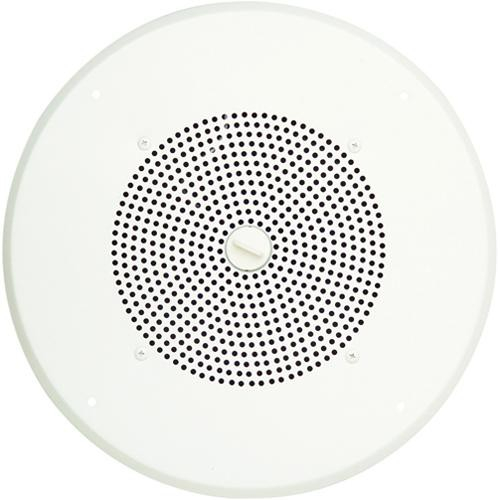

Bogen ASUG1 8" 1W Amplified Ceiling Speaker with Fixed Volume Knob
Brand New
Manufacturer warranty Description
Finished in bright white, the Bogen Communications ASUG1 is an 8" 1W amplified speaker assembled on a ceiling grille for paging, talkback, background music, and security applications in schools, warehouses, offices, and more. With a built-in amplifier and an 8" cone-type loudspeaker, it delivers a 1W output, a maximum SPL of 92 dB, and a frequency response of 100 Hz to 10 kHz. It operates via a 24 VDC power source.
Integrate the ASUG1 with a standard 600-Ohm telephone line, and adjust the volume via the fixed knob without having to remove the speaker or grille. The grille is constructed of steel to maintain rigidity, and features a durable enamel coating.
Features:
- 8" cone-type loudspeaker
- Self-contained 1W amplifier
- Interfaces with standard 600-Ohm telephone line
- Adjustable volume via fixed front-mounted knob
- Assembled on a steel ceiling grille for recessed installation
- Finished in semi-gloss enamel
Technical details
- Weight 5 lb / 2.3 kg
- Current Consumption 1 CU / 50 mA
- Frequency Response 100 Hz to 10 kHz
- Diameter 12.9" / 32.7 cm
- Package Weight 3.5 lb
- Box Dimensions (LxWxH) 14.8 x 14 x 4.3"
- Power Requirement 24 VDC
- Maximum SPL 92 dB at 4' on axis with 1 W output at 1 kHz
- Input Impedance 2 kOhms
- Construction Material Steel ceiling grille
- Dispersion 90°
- Input Sensitivity 125 mV
- Speaker Size 8" / 20.3 cm
- Maximum Output 1 W
