Blue-White Industries, RTSB60A8GM1-P, Digi-Meter Saddle 6" IPS M/NPT Pipe Digital Paddlewheel Flow Meter
RTSB60A8GM1-P Includes Only:
- Flow meter x1
- Clamp x 2
- Pipe Plug x 1
- Batteries x2 (installed)
- Instruction manual
Features:
- Easy to read 8-digit LCD, up to 4 decimal positions
- Flow rate and Total flow display
- Factory programmed with calibration certificate
- Front panel security lockout
- The total reset function can be disabled
- Weather-resistant ABS enclosure. NEMA 4X
- Standard models ship with pipe fitting
Note: LCD is not recommended for direct sunlight applications.

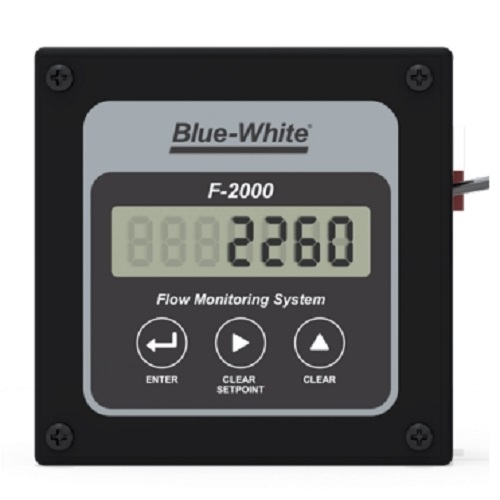

The BW DIGI-METER® F-2000 Paddlewheel Flow Meter features a digital readout on an LCD screen, displaying flow rate and total flow.
The F-2000 model RT displays the flow rate and the total accumulated flow. The flow rate and total flow display screens shall be accessed alternately by pressing the front panel tactile switches. The accumulated flow is reset to zero by pressing the front panel tactile switch while the total flow amount is displayed. The reset function is enabled or disabled in the programming mode. The battery saving mode shall be enabled or disabled in the programming mode. Front panel access to the programming mode shall be disabled by adjusting a jumper switch inside the enclosure. Metering accuracy is +/- 1% of the full-scale flow rate range.

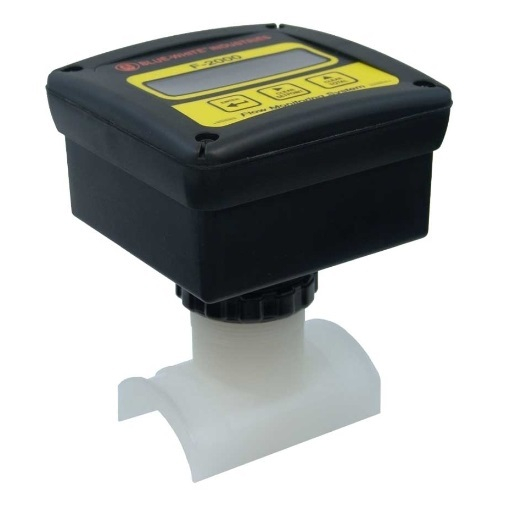

The unit is easily mounted on pipe by drilling a 1-1/8” diameter hole and clamping the saddle onto the pipe using stainless steel pipe clamps. The required pipe clamps is provided with each meter.
