Belkin A7L704-500RED-P Red Plenum 500ft Solid Ethernet Bulk Cable
Brand:
Belkin
Part #:
A7L704-500RED-P
Condition:
Brand New
Brand New $367.60 /Each
Manufacturer warranty Description

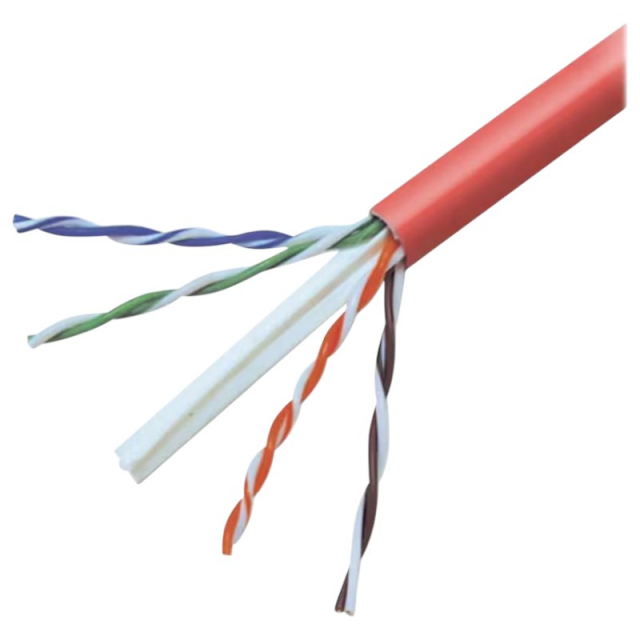

Belkin, A7L704-500RED-P, Red Plenum 500ft CAT6 Solid Ethernet Bulk Cable, UTP
Features:
- Belkin CAT6 exceeds the requirements of TIA/EIA-568-B.2-1 and ISO/IEC 11801.
- It is ideal for high-end solutions such as Gigabit Ethernet, 1.2Gbps ATM, and broadband video.
- This Cable consists of eight solid 23AWG wires and a separator to separate four pairs.
Technical details
Main features
- Color Red
- Cable Type Bulk cable - CAT 6
- Dielectric Strength AC 1.5kV/min
- Conductor Resistance 93.8Ω/km/20°C max
- Cable Characteristic Unshielded twisted pair (UTP)
- Characteristic Impedance 100±15Ω at 1 ~ 550MHz
- Conductor Construction Solid Bare Copper
- Conductor Size 23AWG x 4pairs
- Flame Retardant Test CM
- Insulation Material HDPE
- Jacket Diameter 6.20±0.20mm
- Jacket Material PVC
- Mutual Capacitance 56pF/m max
- Propagation Delay 536nS/100m max at 550MHz
- Spark Test 2.5kV
- Standards Compliance ISO/IEC 11801 TIA/EIA-568-B.2-1
- Structural Return Loss 8.6dB min at 550MHz
