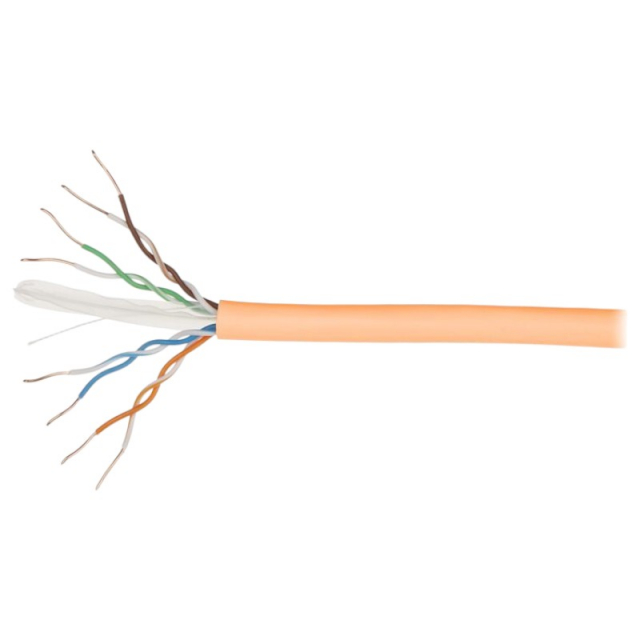

Belkin, A7L704-1000OR-P, Orange Plenum 1000ft CAT6 Solid Ethernet Bulk Cable, UTP

Features:

Belkin CAT6 exceeds the requirements of TIA/EIA-568-B.2-1 and ISO/IEC 11801.
It is ideal for high-end solutions such as Gigabit Ethernet, 1.2Gbps ATM, and broadband video.
This Cable consists of eight solid 23AWG wires and a separator to separate four pairs.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Cable Characteristic

Unshielded twisted pair (UTP)

Cable Type

Bulk cable - CAT 6

Characteristic Impedance

100±15Ω at 1 ~ 550MHz

Conductor Construction

Solid Bare Copper

Conductor Resistance

93.8Ω/km/20°C max

Conductor Size

23AWG x 4pairs

Dielectric Strength

AC 1.5kV/min

Flame Retardant Test

Insulation Material

HDPE

Jacket Diameter

6.20±0.20mm

Jacket Material

PVC

Mutual Capacitance

56pF/m max

Propagation Delay

536nS/100m max at 550MHz

Spark Test

2.5kV

Standards Compliance

ISO/IEC 11801
TIA/EIA-568-B.2-1

Structural Return Loss

8.6dB min at 550MHz

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Cable Characteristic

Unshielded twisted pair (UTP)

Cable Type

Bulk cable - CAT 6

Characteristic Impedance

100±15Ω at 1 ~ 550MHz

Conductor Construction

Solid Bare Copper

Conductor Resistance

93.8Ω/km/20°C max

Conductor Size

23AWG x 4pairs

Dielectric Strength

AC 1.5kV/min

Flame Retardant Test

Insulation Material

HDPE

Jacket Diameter

6.20±0.20mm

Jacket Material

PVC

Mutual Capacitance

56pF/m max

Propagation Delay

536nS/100m max at 550MHz

Spark Test

2.5kV

Standards Compliance

ISO/IEC 11801
TIA/EIA-568-B.2-1

Structural Return Loss

8.6dB min at 550MHz

Note

Note: Please read description carefully. Do not base your order on the picture presented.
