Buy Belkin A7J304-1000WH-H, White Shielded 1000ft Network CAT-5e Cable

info@PrimeBuy.com

1-855-969-9322
1-908-282-3332 (Intl.)

Options and Related Products

Color:: Color: White

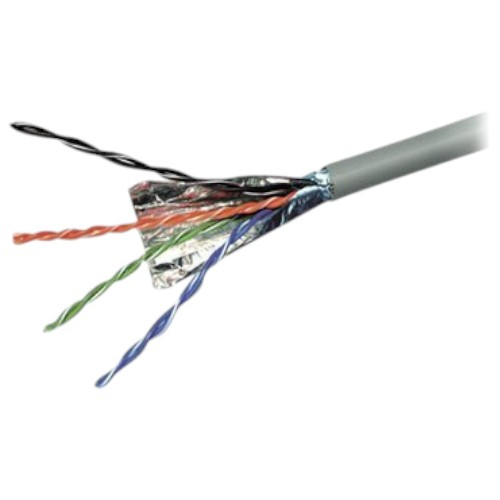

Belkin, A7J304-1000WH-H, White Shielded 1000ft Network CAT-5e Cable, Bare Wire

Features:

This CAT5e PVC UTP Bulk Cable is used to connect a network outlet with a patch panel.
This Cable consists of eight stranded 24AWG wires and is suitable for 10/100Base-T networks.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Cable Characteristic

Shielded

Cable Type

Bulk cable - CAT 5e

Characteristic Impedance

100±15Ω at 1 ~ 100MH

Conductor Construction

Bare Stranded Copper

Conductor Resistance

89.2Ω/km/20°C max

Conductor Size

24AWG x 4pairs

Dielectric Strength

AC 1.75kV/0.15sec

Flame Retardant Test

Insulation Material

HDPE

Jacket Diameter

5.5±0.15mm

Jacket Material

PVC

Mutual Capacitance

56pF/m max

Propagation Delay

538nS/100m max at 100MHz

Spark Test

AC 1.75kV/0.15sec

Standards Compliance

ISO/IEC 11801
TIA/EIA-568-B.2

Structural Return Loss

19.0dB min at 100MHz

Product Details

Cable Characteristic

Shielded

Cable Type

Bulk cable - CAT 5e

Characteristic Impedance

100±15Ω at 1 ~ 100MH

Conductor Construction

Bare Stranded Copper

Conductor Resistance

89.2Ω/km/20°C max

Conductor Size

24AWG x 4pairs

Dielectric Strength

AC 1.75kV/0.15sec

Flame Retardant Test

Insulation Material

HDPE

Jacket Diameter

5.5±0.15mm

Jacket Material

PVC

Mutual Capacitance

56pF/m max

Propagation Delay

538nS/100m max at 100MHz

Spark Test

AC 1.75kV/0.15sec

Standards Compliance

ISO/IEC 11801
TIA/EIA-568-B.2

Structural Return Loss

19.0dB min at 100MHz

Note

Note: Please read description carefully. Do not base your order on the picture presented.
