Baton Lock, A931 HL, Series 'A' 3-1/2" Dormitory with Egress Mortise Lock Case with Handle/Lever
Features:
- Baton's patented mortise lock is engineered for durability and optimum security.
- Lock cases are constructed with quality metal working parts.
- Ensuring the long-lasting and trouble-free operation.
The locks are UL and ULC listed for use on 3 hour. A label doors, 4' x 8' single or 8' x 8' pairs, and can be specified for application in custom homes, offices, hotels, schools, as well as commercial buildings.
Function: Dormitory with Egress
Latch by thumb piece from outside except when projected deadbolt. Latch deadlocked by auxiliary latch or deadbolt. Deadbolt/latch by key from outside. Deadbolt by T piece from inside. Inside lever retracts latch/deadbolt simultaneously unlocking outside T piece.

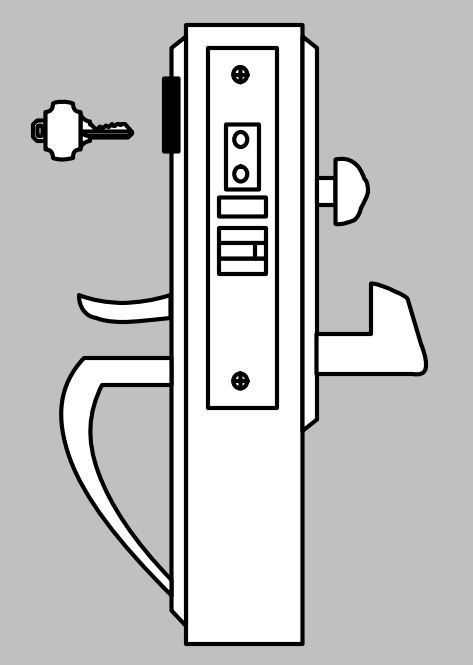

Lock Illustrated:
