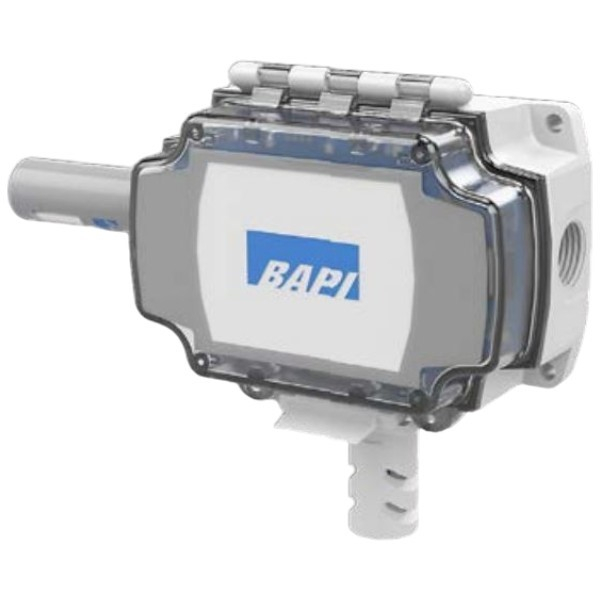

BAPI BA/WTH-BLE-LL-O-BB-PWR Wireless Outside Air Temp/Humidity

Version: Temp/Humidity, Light Level & Barometric Pressure Sensor, Wire Power
  • Brand BAPI
  • Part # BA/WTH-BLE-LL-O-BB-PWR
  • Condition
    Brand New
Availability
Typically In Stock
Check Availability
Quantity
Share:

Options and Related Products

Version:
Version: Temp/Humidity, Light Level & Barometric Pressure Sensor, Wire Power

BAPI, BA/WTH-BLE-LL-O-BB-PWR, Wireless Outside Air Temp/Humidity, Light Level & Barometric Pressure Sensor, Wire Power

Features:

  • Included a barometric pressure sensor and a light level sensor
  • User-adjustable settings to maximize battery life while ensuring the BMS gets the info it needs
  • Transmits to a receiver and output modules with multiple integration methods into the BMS

BAPI's Outside Air Wireless Sensor measures environmental values and transmits the data via Bluetooth Low Energy to a receiver and output modules with multiple integration methods into the BMS. This unit features a rugged IP66-rated BAPI-Box enclosure with a UV-resistant plastic shield.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor

Technical Details

Reviews
Wire Power9 to 30 VDC or 24 VAC, half-wave rectified
Sensor Accuracy
Temp±1.0°F (0.55°C) from 32 to 158°F (0 to 70°C)
Humidity±2%RH at 77°F (25°C), 20 to 80%RH
Barometric Pressure±2 mbar at 25°C (0.40"H2O)
Light Level10 Lux + 10% of reading.
Temperature Range-4 to 221°F (-20 to 105°C)
Light Level Sensing Range0 to 64,000 lux
Environmental Operation Range
Temp-4 to 149°F (-20 to 65°C)
Humidity10 to 90%RH, non-condensing
Enclosure Rating, Material & Material RatingIP66, UV-Resistant Polycarbonate, UL94 V-0
Frequency2.4 GHz (Bluetooth Low Energy)
Receiver Sensitivity-97 dBm
User Adjustable Settings
Delta T (Temp)0.1°F/C to 5.0°F/C | Delta T (Humidity)
Transmit Interval1 min to 30 min | Sample Interval
AgencyRoHS | Contains FCC ID: QOQGM210P | IC: 5123A-GM210P
Product Details
Wire Power9 to 30 VDC or 24 VAC, half-wave rectified
Sensor Accuracy
Temp±1.0°F (0.55°C) from 32 to 158°F (0 to 70°C)
Humidity±2%RH at 77°F (25°C), 20 to 80%RH
Barometric Pressure±2 mbar at 25°C (0.40"H2O)
Light Level10 Lux + 10% of reading.
Temperature Range-4 to 221°F (-20 to 105°C)
Light Level Sensing Range0 to 64,000 lux
Environmental Operation Range
Temp-4 to 149°F (-20 to 65°C)
Humidity10 to 90%RH, non-condensing
Enclosure Rating, Material & Material RatingIP66, UV-Resistant Polycarbonate, UL94 V-0
Frequency2.4 GHz (Bluetooth Low Energy)
Receiver Sensitivity-97 dBm
User Adjustable Settings
Delta T (Temp)0.1°F/C to 5.0°F/C | Delta T (Humidity)
Transmit Interval1 min to 30 min | Sample Interval
AgencyRoHS | Contains FCC ID: QOQGM210P | IC: 5123A-GM210P
Note

Note: Please read description carefully. Do not base your order on the picture presented.
