BAPI BA/T1K[-100 TO 0C]-XOR-STM-TS Temperature Transmitter -32 - 212F

Temperature Range: -100 to 0C
  • Brand BAPI
  • Part # BA/T1K[-100 TO 0C]-XOR-STM-TS
  • Condition
    Brand New
Buy in Bulk 4 Applicable Promotion(s)
Show All

  • Buy 50 pcs, get 7% off

    Save 7% each on BAPI BA/T1K[-100 TO 0C]-XOR-STM-TS Temperature Transmitter -32 - 212F when you purchase 50 or more

  • Buy 25 pcs, get 5% off

    Save 5% each on BAPI BA/T1K[-100 TO 0C]-XOR-STM-TS Temperature Transmitter -32 - 212F when you purchase 25 or more

  • Buy 10 pcs, get 3% off

    Save 3% each on BAPI BA/T1K[-100 TO 0C]-XOR-STM-TS Temperature Transmitter -32 - 212F when you purchase 10 or more

  • Buy 5 pcs, get 1% off

    Save 1% each on BAPI BA/T1K[-100 TO 0C]-XOR-STM-TS Temperature Transmitter -32 - 212F when you purchase 5 or more

Availability
Typically In Stock
Check Availability
Quantity
Share:

Options and Related Products

Temperature Range:
Temperature Range: -100 to 0C

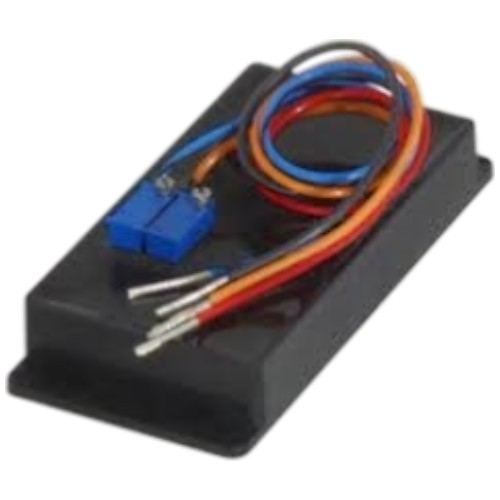

BAPI, BA/T1K[-100 TO 0C]-XOR-STM-TS, Temperature Transmitter in Snaptrack Mountable Shell, No Metal Plate, -32 to 212F Range, Terminal Strip Connection

Features:

  • BAPI's Temperature Transmitter has a field-adjustable output of 4 to 20 mA over a selected temperature range.
  • Adjustable outputs can be set at the factory to order or default to 4 to 20mA.

These transmitters can be mounted in a variety of enclosures. The unit is fully encapsulated (ruggedized) with a high thermal conductivity material to prevent circuit overheating and is water-resistant.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor
Manufacturer Warranty

Technical Details

Reviews
Power Required12 to 40VDC
Transmitter Output4 to 20mA
Output Wiring4 Terminal Block (24 to 12 AWG)
Calibration SpanMin. 30°F (16.6°C), Max 1000°F (555°C)
Calibration ZeroMin. -148°F (-100°C), Max 900°F (482°C)
System Accuracy±0.065% of Span
Linearity±(0.125 x T-20°C)/100
Temperature Transmitter Type1K Platinum RTD, 1KΩ at 0°C with 4 to 20 mA Output
Matched (M)13 to 302°F (-25 to 150°C) with 3-point certificate (25%, 50% & 75%)
Mounting ShellABS w/ waterproof urethane fill
Transmitter Ambient-4 to 158°F, (-20 to 70°C) 0 to 95% RH, Non-condensing
AgencyRoHS / JIS C1604-1989 / PT=DIN43760, IEC Pub 751-1983 / CE EN 61326-1
Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details
Power Required12 to 40VDC
Transmitter Output4 to 20mA
Output Wiring4 Terminal Block (24 to 12 AWG)
Calibration SpanMin. 30°F (16.6°C), Max 1000°F (555°C)
Calibration ZeroMin. -148°F (-100°C), Max 900°F (482°C)
System Accuracy±0.065% of Span
Linearity±(0.125 x T-20°C)/100
Temperature Transmitter Type1K Platinum RTD, 1KΩ at 0°C with 4 to 20 mA Output
Matched (M)13 to 302°F (-25 to 150°C) with 3-point certificate (25%, 50% & 75%)
Mounting ShellABS w/ waterproof urethane fill
Transmitter Ambient-4 to 158°F, (-20 to 70°C) 0 to 95% RH, Non-condensing
AgencyRoHS / JIS C1604-1989 / PT=DIN43760, IEC Pub 751-1983 / CE EN 61326-1
Note

Note: Please read description carefully. Do not base your order on the picture presented.
