Buy BAPI BA/APSW1, Adjustable Pressure Switch, 0.08 to 1.2" WC

info@PrimeBuy.com

1-855-969-9322
1-908-282-3332 (Intl.)

List Price
$25.00
- Sale Price
  $22.23 Each
Free Shipping
This item qualifies for Free Ground...

Buy in Bulk 4 Applicable Promotion(s)

Show All

Buy 50 pcs, get 7% off
Save 7% each on BAPI BA/APSW1 Adjustable Pressure Switch, 0.08 to 1.2" WC when you purchase 50 or more
Buy 25 pcs, get 5% off
Save 5% each on BAPI BA/APSW1 Adjustable Pressure Switch, 0.08 to 1.2" WC when you purchase 25 or more
Buy 10 pcs, get 3% off
Save 3% each on BAPI BA/APSW1 Adjustable Pressure Switch, 0.08 to 1.2" WC when you purchase 10 or more
Buy 5 pcs, get 1% off
Save 1% each on BAPI BA/APSW1 Adjustable Pressure Switch, 0.08 to 1.2" WC when you purchase 5 or more

Availability: Typically In Stock

Check Availability

Quantity

Options and Related Products

Pressure Range:: Pressure Range: 0.08 to 1.2" WC / 20 to 300 Pa
Enclosure Rating:: Enclosure Rating: IP54

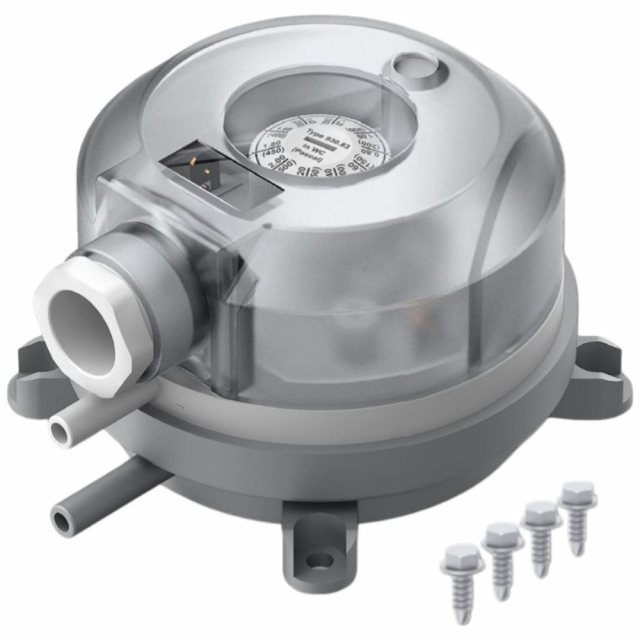

BAPI, BA/APSW1, Adjustable Pressure Switch, 0.08 to 1.2" WC / 20 to 300 Pa

Features:

Designed for monitoring overpressure, vacuum, and differential pressure of air or other non-combustible, non-aggressive gases
Ideal for air filter and fan status monitoring, industrial cooling-air circuit monitoring, duct air flow monitoring, air flow proving for heater control, and frost prevention circuits
Field-adjustable dial to select any trip value within each pressure range

The Adjustable Pressure Switch is designed for monitoring overpressure, vacuumand differential pressure of air or other non-combustible, non-aggressive gases.A field-adjustable dial allows you to select any trip value within each pressure range.

Possible fields of application include:

Monitoring air filters and fan status
Monitoring industrial cooling-air circuits
Monitoring flows in ventilation ducts
Used as an air flow proving switch for heater control and frost prevention circuits

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Burst Pressure

40" WC (10 kPa) for all pressure ranges

Medium

Air, non-combustible and non-aggressive gases

Operating Temperature

-4° to +185°F (-20 to +85°C)

Storage Temperature

-40°F to +185°F (-40 to +85°C)

Encl. Rating

IP54

Accuracy

±5%

Repeatability

min. ±0.02" WC (±5 Pa)

Accuracy

Deviation: ≤±15%, min. ±0.04" WC (±10 Pa)
Drift: ≤±15%

Diaphragm Material

Silicone, tempered at 392°F (200°C), free of gas emissions

Pressure Connections

2 plastic pipe connection pieces, external dia. 0.24" (6mm)
Marked "+" to higher pressure, marked "-" to lower pressure

Body and Cover Material

UV-resistant plastic

Mechanical Working Life

Over 1,000,000 switching operations

Electrical Rating

0.4A Inductive, 250 VAC
1.5A Resistive, 250 VAC 0.8A Inductive, 125 VAC
3.0A Resistive, 125 VAC 0.4A, 30VDC
0.1A, 24 VDC

Electrical connections

1/4" Spade Plug (AMP flat plug), 0.25" x 0.03" (6.3 x 0.8mm) in accordance with DIN 46244 or push-on screw terminals included

Protection Category

IP54

Cable Conduit

M20 threads for 0.25" to 0.375" OD cable (6.5 to 9.5mm)

CE Conformity

Low Voltage Directive 2014/35/EU; RoHS Directive 2011/65/EU

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Burst Pressure

40" WC (10 kPa) for all pressure ranges

Medium

Air, non-combustible and non-aggressive gases

Operating Temperature

-4° to +185°F (-20 to +85°C)

Storage Temperature

-40°F to +185°F (-40 to +85°C)

Encl. Rating

IP54

Accuracy

±5%

Repeatability

min. ±0.02" WC (±5 Pa)

Accuracy

Deviation: ≤±15%, min. ±0.04" WC (±10 Pa)
Drift: ≤±15%

Diaphragm Material

Silicone, tempered at 392°F (200°C), free of gas emissions

Pressure Connections

2 plastic pipe connection pieces, external dia. 0.24" (6mm)
Marked "+" to higher pressure, marked "-" to lower pressure

Body and Cover Material

UV-resistant plastic

Mechanical Working Life

Over 1,000,000 switching operations

Electrical Rating

0.4A Inductive, 250 VAC
1.5A Resistive, 250 VAC 0.8A Inductive, 125 VAC
3.0A Resistive, 125 VAC 0.4A, 30VDC
0.1A, 24 VDC

Electrical connections

1/4" Spade Plug (AMP flat plug), 0.25" x 0.03" (6.3 x 0.8mm) in accordance with DIN 46244 or push-on screw terminals included

Protection Category

IP54

Cable Conduit

M20 threads for 0.25" to 0.375" OD cable (6.5 to 9.5mm)

CE Conformity

Low Voltage Directive 2014/35/EU; RoHS Directive 2011/65/EU

Note

Note: Please read description carefully. Do not base your order on the picture presented.
