Bapi BA-20K-TB-MAL-4-HB-BB2-TS Temperature Sensor, 4 inch Sensor
Brand NewNotification
Please review our Return Policy.
Manufacturer warranty Description

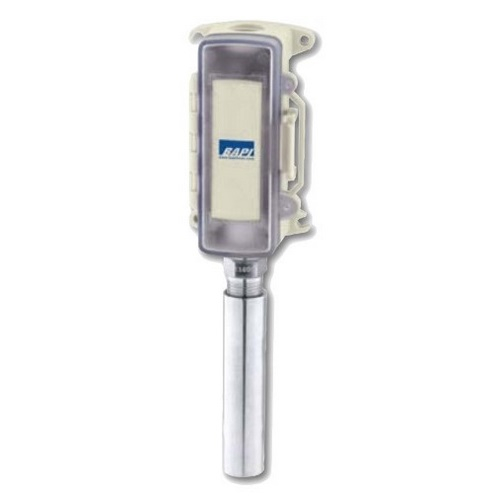

BAPI, BA/20K-TB-MAL-4-HB-BB2-TS, Thermobuffer Temperature Sensor, BAPI-Box 2 Enclosure, 4 inch Sensor, 20K Ohms @ 25C Thermistor, Terminal Strip Connection
Features:
- Slows/Buffers Temperature Changes in Coolers & Freezers (Caused by Opening and Closing of Cooler/Freezer Door)
- Fluid-Filled Chamber to Mimic Core Temperatures
- Easy Wall Mount or Wire Shelf Hanger
- Decreases False High Limit Alarms
The BAPI Thermobuffer Temperature Sensor is used to simulate more closely the refrigerator contents rather than the refrigerator air temperature. The fluid-filled chamber allows for slower reaction to abrupt temperature changes, yet still maintains long-term accuracy if the change remains permanent. It eliminates the temperature spikes due to frequent refrigerator or freezer door opening and decreases false alarms.
The buffer chamber is machined in 304 Stainless Steel or aluminum and accommodates a variety of temperature sensors or transmitters to interface with all BAS systems
Technical details
- Sensor Type 20K Ω at 25 °C Tehrmistor
- Material Polycarb., UV rated, UL94 V-0
- Enclosure Style BAPI-Box 2 Enclosure
- Enclosure Rating NEMA 4, IP66
- Chamber Fluid Glycol mix: Food grade required 1" Chamber: 7 ml of fluid 2" Chamber: 24 ml of fluid 4" Chamber: 32 ml of fluid
- Wire 22 AWG stranded, 2 or 3 wires
- Probe Stainless Steel
- Environmental operating range Temperature Sensor: -40 to 185ºF (-40 to 85ºC) Temperature Transmitter: -4 to 158ºF (-20 to 70ºC) Humidity: 0-100%RH, Condensing
- Insulation Etched Teflon, PVC or FEP Jacketed
- Enclosure Dimensions 4.9 x 2.8 x 2.35" (125 x 71.6 x 60mm)
- Agency *CE (< 20kΩ thermistor's), UL94V-0, RoHS
- Thermobuffer Probe Probe Fitting made of 304 Stainless Steel
- Buffer & Probe Length 4 Inch Sensor and Aluminum Cylinder Buffer (Overall buffer length 6.3")
- Optional Hanging Bracket Probe Mounting Hanging or Screw Mounted Bracket (30" FEP jacketed cable standard)
