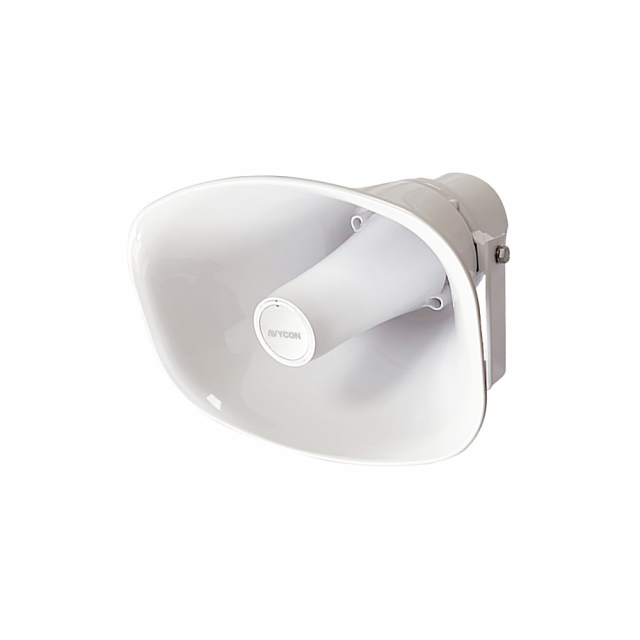

Buy AVYCON AVS-IPHS30WM, 30W Smart All-In-One IP Horn Speaker + Microphone

info@PrimeBuy.com

1-855-969-9322
1-908-282-3332 (Intl.)

Options and Related Products

Configuration:: Configuration: 30W / with a Built-In Microphone

AVYCON, AVS-IPHS30WM, 30W Smart All-In-One IP Horn Speaker with a Built-In Microphone

Features:

Two-Way Intercom Communication
48K OPUS, AEC, AGC, ANR
Compatible with VoIP, SIP devices (IPPBX, IP Phone) via SIP
Compatible with IP Camera VMS via ONVIF
HTTP Control, Alarm in, Schedule
30W Amplifier, PoE Power Supply
Built-in MIC, Audio in, TF Card (Optional)

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Audio Codec

OPUS 48 kHz
MP3 44.1 kHz
G.722 ADPCM 16 kHz
G.711 PCMU 8 kHz
G.711 PCMA 8 kHz

Built-in Microphone

Yes

Speaker Max SPL

113 dB

Speaker Frequency Response

300Hz~8KHz

Speaker Frequency Range

500-2KHz ±10dB, 400-12KHz ±20dB

Harmonic Distortion

0.1 @ 1 kHz

Signal to Noise Ratio

91 dB

Network Security

Password protection
IP address filtering
Digest authentication
User access log
Firewall

Network Protocol

SIP
ONVIF
HTTP
IPv4
DHCP
RTSP
RTP
RTCP
TCP
UDP
ARP
FTP
TFTP
NFS
NTP

Network Interface

10/100 Base-TX, RJ45

VoIP Support

SIP protocol integration with VoIP systems
Integrated with SIP/PBX
2 SIP Accounts
SIP Direct IP Call
RTP Multicast
Codec: OPUS, MP3, G.722, PCMU, PCMA

Amplifier

Built-in 15W Amplifier

Operating Temperature

-22°F ~ +140°F (-30°C ~ +60°C)

Operating Humidity

5%-85%

Material

ABS (IP66 water-proof)

Rated Power

15W

Power Supply

PoE or DC12V

Connector

Alarm in, Audio in, DC Power, PoE

Installation

Wall Mounted

Dimensions (WxDxH)

11.23 x 8.08 x 11.17 in (285.40 x 205.46 x 283.96 mm)

Net Weight

4.4 lbs (2 kg)

Languages

English

Package Includes

IP Horn Speaker, User Manual

Product Details

Audio Codec

OPUS 48 kHz
MP3 44.1 kHz
G.722 ADPCM 16 kHz
G.711 PCMU 8 kHz
G.711 PCMA 8 kHz

Built-in Microphone

Yes

Speaker Max SPL

113 dB

Speaker Frequency Response

300Hz~8KHz

Speaker Frequency Range

500-2KHz ±10dB, 400-12KHz ±20dB

Harmonic Distortion

0.1 @ 1 kHz

Signal to Noise Ratio

91 dB

Network Security

Password protection
IP address filtering
Digest authentication
User access log
Firewall

Network Protocol

SIP
ONVIF
HTTP
IPv4
DHCP
RTSP
RTP
RTCP
TCP
UDP
ARP
FTP
TFTP
NFS
NTP

Network Interface

10/100 Base-TX, RJ45

VoIP Support

SIP protocol integration with VoIP systems
Integrated with SIP/PBX
2 SIP Accounts
SIP Direct IP Call
RTP Multicast
Codec: OPUS, MP3, G.722, PCMU, PCMA

Amplifier

Built-in 15W Amplifier

Operating Temperature

-22°F ~ +140°F (-30°C ~ +60°C)

Operating Humidity

5%-85%

Material

ABS (IP66 water-proof)

Rated Power

15W

Power Supply

PoE or DC12V

Connector

Alarm in, Audio in, DC Power, PoE

Installation

Wall Mounted

Dimensions (WxDxH)

11.23 x 8.08 x 11.17 in (285.40 x 205.46 x 283.96 mm)

Net Weight

4.4 lbs (2 kg)

Languages

English

Package Includes

IP Horn Speaker, User Manual
