Buy AVYCON AVC-NLE21F28, 2MP H.265 Fixed Eyeball Network Camera

info@PrimeBuy.com

1-855-969-9322
1-908-282-3332 (Intl.)

Options and Related Products

Form:: Form: Turret
Type:: Type: Fixed Lens

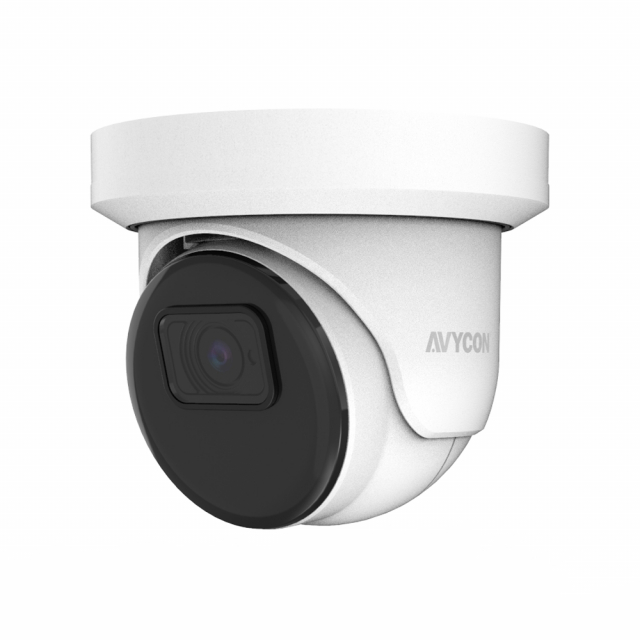

Avycon, AVC-NLE21F28, 2mp H.265 Fixed Eyeball Network Camera

Features:

2MP ( 1920 x 1080 ) at 30fps
Max. Resolution: 1920 x 1080
Supports Smart H.265/H.264 Encoding
True Day & Night ICR
Up to 98 ft. IR Illumination
Fixed 2.8mm Lens
3D DNR, DWDR, HLC, BLC and ROI Encoding
Supports Triple Streams
Supports Remote Access with Windows, macOS, iOS and Android
IP67 Ingress Protection
Operating Temperature: -22°F - 131°F (-30°- 55°C)
DC12V / PoE (802.3af, ≤6W)
Built-in MIC
Built-in MicroSD Card Slot
Built-in Reset Button
Lite Series
NDAA Compliant

The avycon AVC-NLE21F28 camera is a 2MP H.265 Fixed Eyeball Network Camera. This 2MP IP camera supports True Day and Night mode, PoE, and up to 98ft. of Smart IR Illumination. This camera includes a Fixed 2.8mm Lens. Also standard with this series is Digital NR, ROI, HLC, DWDR, and BLC capabilities.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

CAMERA
Image Sensor	1/2.8" Progressive Scan CMOS
Resolution	2MP
Image Size	1920 x 1080
Min. Illumination	Color: 0.01lux at F1.2(AGC ON) BW: 0lux w IR ON
Shutter Speed	1/20,000s ~ 1/5s
Slow Shutter	Supported
IR Distance	Up to 98ft. (30m)
Lens	Fixed 2.8mm
Field of View	87.4°
WDR	DWDR
VIDEO STREAM
Max. Image Resolution	1920 x 1080 at 30fps
Supported Resolutions	1920 x 1080, 1280 x 720, 640 x 480, 320 x 240
Main Stream	1920 x 1080, 1280 x 720
Sub Stream	1280 x 720, 640 x 480, 320 x 240
Mobile Stream	640 x 480, 320 x 240
Video Compression	H.265 / H.264
Video Bit Rate	128 Kbps ~ 8 Mbps (CBR / VBR Adjustable)
NETWORK
Ethernet	1 x RJ45 10M / 100M Ethernet Port
ONVIF	ONVIF Profile S / G
Protocol	HTTP, HTTPs, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP/IP, PPPoE, DHCP
Day & Night	EXT / Auto / Color / BW ( Black and White)
DWDR	Yes
Digital NR	Yes (3D DNR)
Backlight Compensation (BLC)	Yes
HLC	Yes
ROI	Yes
Privacy Mask	Supported
Sharpness	Yes
Image Setting	Yes
Language	Support for English and Korean
GENERAL
Angle Adjustment	Any Angle
Input Voltage	DC 12V / PoE (802.3af)
Power Consumption	≤6W
Ingress Protection	IP67
Working Temperature	-22°~131° F (-30°~55° C)

Product Details

CAMERA
Image Sensor	1/2.8" Progressive Scan CMOS
Resolution	2MP
Image Size	1920 x 1080
Min. Illumination	Color: 0.01lux at F1.2(AGC ON) BW: 0lux w IR ON
Shutter Speed	1/20,000s ~ 1/5s
Slow Shutter	Supported
IR Distance	Up to 98ft. (30m)
Lens	Fixed 2.8mm
Field of View	87.4°
WDR	DWDR
VIDEO STREAM
Max. Image Resolution	1920 x 1080 at 30fps
Supported Resolutions	1920 x 1080, 1280 x 720, 640 x 480, 320 x 240
Main Stream	1920 x 1080, 1280 x 720
Sub Stream	1280 x 720, 640 x 480, 320 x 240
Mobile Stream	640 x 480, 320 x 240
Video Compression	H.265 / H.264
Video Bit Rate	128 Kbps ~ 8 Mbps (CBR / VBR Adjustable)
NETWORK
Ethernet	1 x RJ45 10M / 100M Ethernet Port
ONVIF	ONVIF Profile S / G
Protocol	HTTP, HTTPs, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP/IP, PPPoE, DHCP
Day & Night	EXT / Auto / Color / BW ( Black and White)
DWDR	Yes
Digital NR	Yes (3D DNR)
Backlight Compensation (BLC)	Yes
HLC	Yes
ROI	Yes
Privacy Mask	Supported
Sharpness	Yes
Image Setting	Yes
Language	Support for English and Korean
GENERAL
Angle Adjustment	Any Angle
Input Voltage	DC 12V / PoE (802.3af)
Power Consumption	≤6W
Ingress Protection	IP67
Working Temperature	-22°~131° F (-30°~55° C)

Note

Note: Please read description carefully. Do not base your order on the picture presented.
