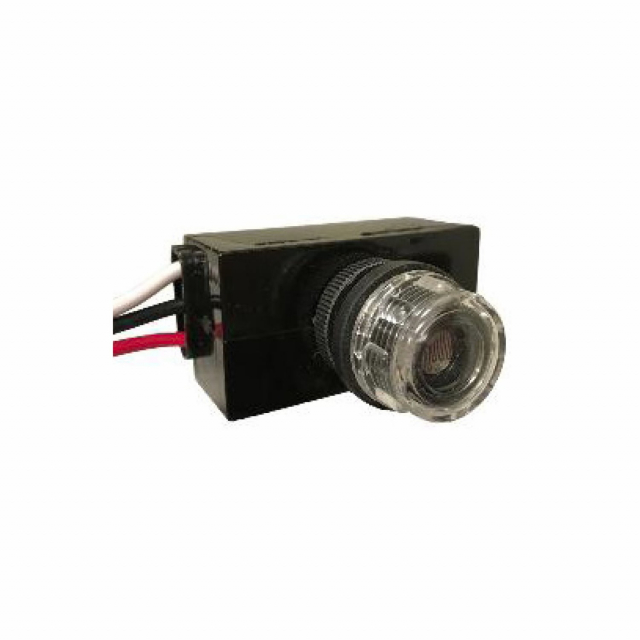

ATG LED Lighting, JL-403C, 3-pin Photocell for Wall Pack, 120/277VAC, Including Waterproof Cap
The JL-403 photoelectric switch is used for area and pedestrian space lighting where automatic illumination based on ambient light levels is needed. The JL-403C easily fits many wall pack, canopy and area lighting fixture housings. Using input line voltage, the JL-403C doesn't require auxiliary power sources to be present.
The JL-403C features a pre-set 3-10 second delay response which prevents mis-operation due to random lights passing by, or ambient lightening in the area. The switch is UL Listed and complies with UL773A Standard for Photoelectric Switches for Lighting Control.
Installation

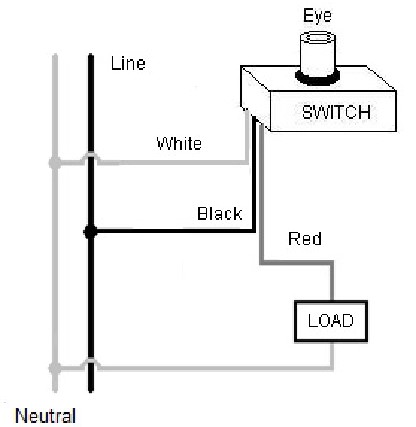

Disconnect power, remove junction box cover, place the SWITCH in knockout hole and fasten with locknut. Wire according to the diagram in right hand. Do not install the switch with the Photocell facing artificial or reflected light. This will cause the unit to cycle on and off at night.
