Manufacturer warranty Description
VM7824 Includes Only:
- 1x VM7824 4-Port True 4K HDMI Input Board
- 4x Terminal Blocks
- 1x User Instructions
Features:
- Compatible with the VM Modular Matrix Switches; mix and match with modular I/O boards of any type for optimum flexibility
- True 4K Resolutions – handles uncompressed video resolutions up to 3840 x 2160 / 4096 x 2160 at 60Hz (4:4:4)
- Audio-enabled, HDMI audio can be extracted and stereo audio can be embedded
- Cable Quality Tester – examines the HDMI cable quality

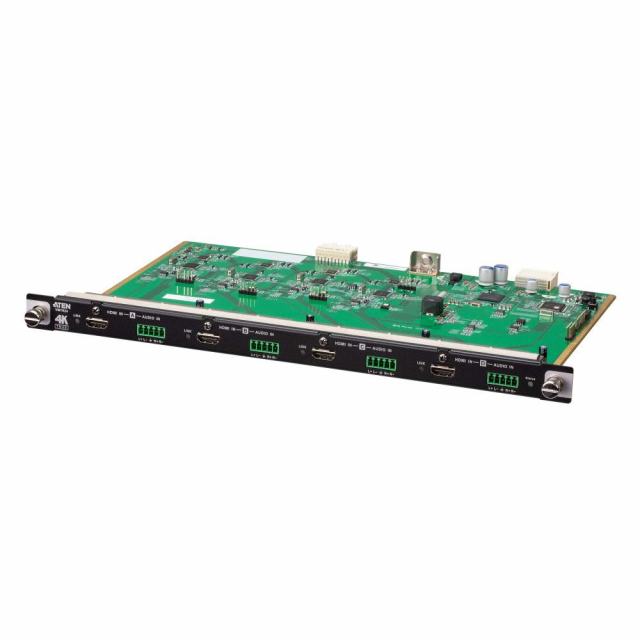

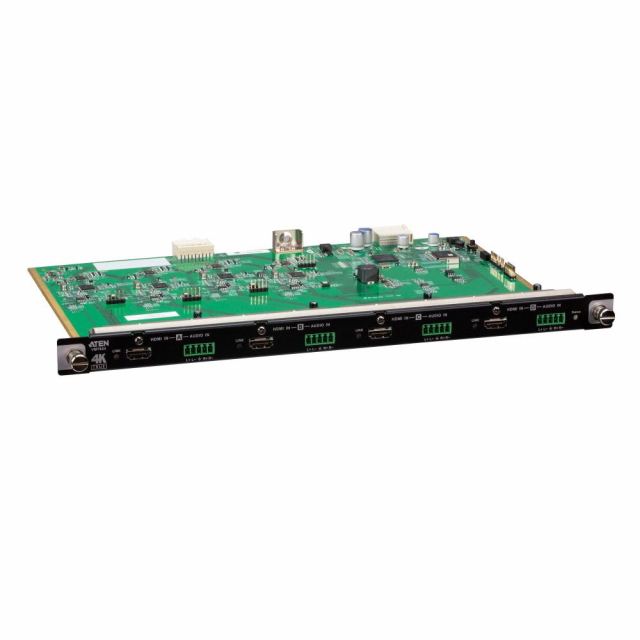

The VM7824 is a True 4K HDMI input board that works with an ATEN Modular Matrix Switch to offer an easy way to route 4 HDMI audio/video sources to 4 displays with True 4K high-definition images support. In addition to the HDMI interface that carries digital A/V signal, the VM7824 also provides 4 stereo audio input ports that enable stereo audio embedding.
All of ATEN's VM series input/output boards support hot-swappable installation that gives system integrators great flexibility and efficiency for maintenance. The VM series input/output boards along with ATEN Modular Matrix Switches offer ideal solutions that perfectly meet your demands for multi-interface video applications.
Technical details
- Input 4 x Captive Screw Connector, 5 Pole (Green)
- Weight 0.55 kg ( 1.21 lb )
- Compliance HDMI (3D, Deep Color, 4K) HDCP 2.2 Compatible Consumer Electronics Control (CEC)
- Power Consumption DC12:8.95W:42BTU
- Housing Metal
- Operating Temperature 0 - 40°C
- Storage Temperature -20 - 60°C
- Interfaces 4 x HDMI Type A Female (Black)
- Humidity 0 - 80% RH, Non-Condensing
- Impedance 100 Ω
- Max. Data Rate 18.0 Gbps (6.0 Gbps Per Lane)
- Max. resolution 4096x2160/3840x2160 at60Hz (4:4:4)
- Dimensions (L x W x H) 35.20 x 23.80 x 2.33 cm (13.86 x 9.37 x 0.92 in.)
- Max. Distance Up to 5.0m
- Max. Pixel Clock 600 MHz
