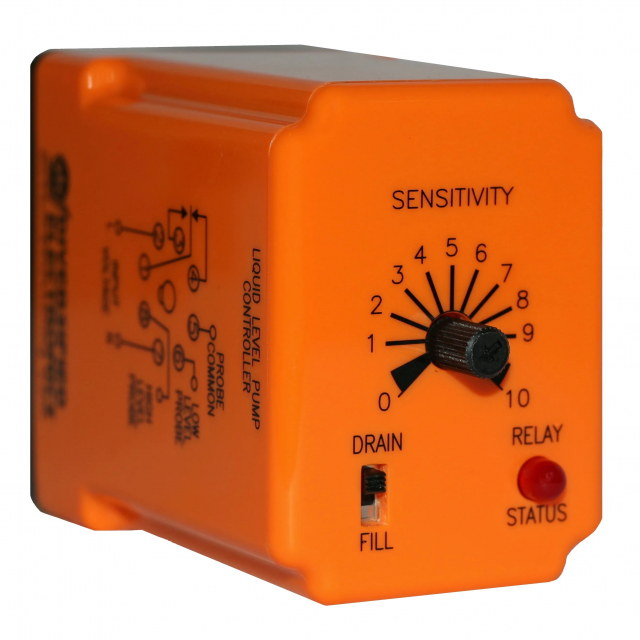

ATC Diversified LPC-240-AAA 240VAC Liquid Level Pump Controller

Automatic Timing & Controls Diversified, LPC-240-AAA, 240VAC Liquid Level Pump Controller

Features:

• The ATC Diversified LPC Series is a conductive liquid level controller that uses two probes to sense tank level.
• Two modes of operation are user-selectable: Drain (Pump Down) and Fill (Pump Up).
  • Drain (Pump Down): The output relay will pick up and the LED will turn on when the liquid level reaches the high-level probe. When the liquid level falls below the low-level probe the relay will drop out and the LED will turn off.
  • Fill (Pump Up): The output relay will pick up and the LED will turn on when the liquid level falls below the low-level probe. When the liquid level reaches the high-level probe the relay will drop out and the LED will turn off.
• Panel Mount Bracket A (100054330) can/should be used for the Style A Housing

For more information, please see Data Sheet
