| Pysical Status |
| Form Factor | miniITX |
| Dimensions | 6.7'' x 6.7'' (17.02 cm x17.02 cm) |
| Processor System |
| CPU | AMD Ryzen™ 3 Generation Series Processors(Max 105W) |
| Socket | AM4 PGA 1331 |
| Chipset | AMD Premium X570 |
| System Memory |
| Capacity | 4 x DDR4 SO DIMM slots |
| Type | Dual Channel DDR4 memory technology, Support DDR4 ECC & nonECC SO DIMM Supports DDR4 ECC/UDIMM,up to 2933MHz One DIMM: 1R DIMM at2933MT/s; 2R/2DR DIMM at2400T/s Two DIMMs: (2) 1R DIMM at2400 MT/s; (2) 2R/2DR DIMM at2400MT/s; Max per DIMM size is: 32 GB |
| Voltage | 1.2V |
| Expansion Slot |
| PCIe 4.0 x 16 | PCIE7: Gen4x16 link (Matisse) |
| Storage |
| SATA Controller | AMD X570:8 x SATA3 by OCulink |
| M.2 slot | 1 (2280, supports PCIe 4.0 x4/SATA3 6.0Gb/s) |
| Ethernet |
| Interface | 10000/1000 /100 /10 Mbps |
| LAN Controller | 2 x RJ45 10GLAN by Intel® X550AT2 Supports WakeOnLAN Supports Energy Efficient Ethernet 802.3az Supports Dual LAN with Teaming function Supports PXE |
| Management |
| BMC Controller | ASPEED AST2500 |
| IPMI Dedicated GLAN | 1 x Realtek RTL8211E for dedicated management GLAN |
| Features | Watch Dog |
| Graphics |
| Controller | ASPEED AST2500 |
| VRAM | DDR4 16MB |

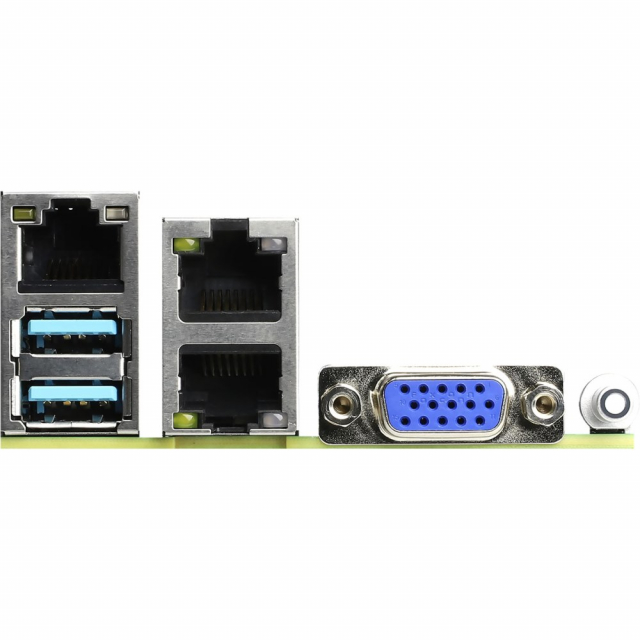

| Rear Panel I/O |
| VGA Port | 1 x DSub |
| USB 3.2 Gen2 Port | 2(Gen2) |
| Lan Port | RJ45:2+1(IPMI) LAN Ports with LED (ACT/LINK LED and SPEED LED) |
| UID Button/UID LED | 1 |
| Internal Connector |
| COM Header | 1 |
| SATA DOM | 0 |
| M.2 | 1(Mkey,only 2280, Support PCIe 4.0 x4 or SATA3 6.0Gb/s) |
| OCuLink | 2(4xSATA3 6.0Gb/s/PCIe 4.0x4 for each) |
| Auxiliary Panel Header | 1 (include Caseopen,sys_fault_LED, 2FLANLED) ) |
| TPM Header | 1(13pin) |
| IPMB Header | 1 |
| Buzzer | N/A |
| Fan Header | 3(4pin Fan header) |
| USB 3.2 (Gen1) Header | 1 (support 2 USB 3.0) |
| USB 2.0 Header | N/A |
| Front Panel | 1 (RST, PWRBTN, HDDLED, PWRLED) |
| Speaker Header | 1(4pin) |
| SMBUS from BMC | 1 |
| Power Connector | 8pin(DCIN)+4pin(ATX)+4pin(HDD PWR) |
| ME/SPS Recovery | N/A |
| Clear CMOS | 1 |
| PSU SMB Header | 1 |
| Onboard LED |
| 80 Debug Port LED | N/A |
| Fan Fail LED | 3 |
| System BIOS |
| BIOS Type | 32MB AMI UEFI Legal BIOS |
| BIOS Features | Plug and Play (PnP) ACPI 2.0 Compliance Wake Up Events SMBIOS 2.8.0 Support ASRock Rack Instant Flash |
| Hardware Monitor |
| Temperature | CPU/DDR temperature sensing MB/Card side temperature sensing |
| Fan | Fan Tachometer Quiet Fan (Allow Chassis Fan Speed AutoAdjust by CPU Temperature) Fan MultiSpeed Control |
| Voltage | Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM,1.05V_PCH, +BAT, 3VSB, 5VSB |
| Environment |
| Temperature | Operation temperature: 10°C ~ 35°C / Non operation temperature: 40°C ~ 70°C |
