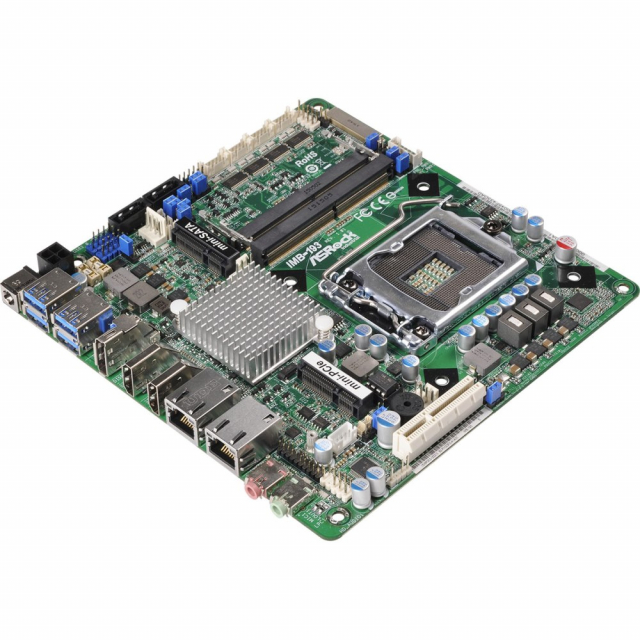

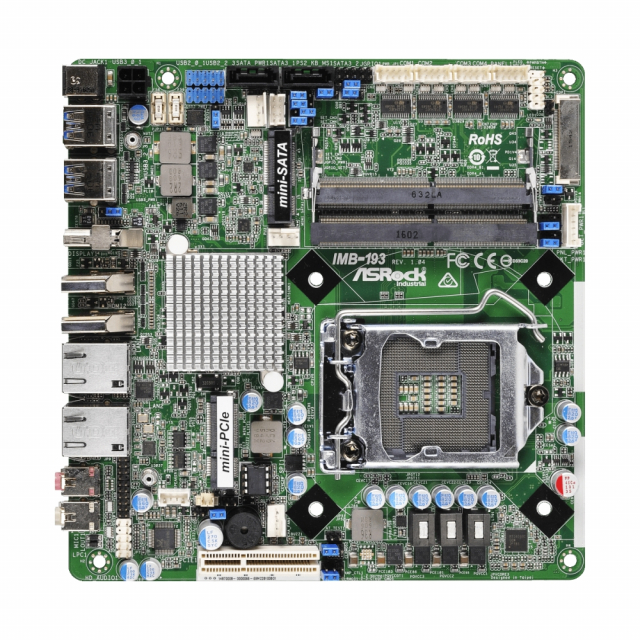

ASRock IMB-193 Motherboard Mini-ITX 2xHDMI, 1xDisplayPort

  • Brand ASRock
  • Part # IMB-193
  • Condition
    Brand New
Availability
Contact Us
Check Availability
Quantity
Share:

Features with all optional accessories:

  • Socket LGA1151 for Intel® Core i7 / i5 / i3 / Celeron (Skylake-S)
  • Intel® Gen9 Intel® Graphics DX 11 / 12, OGL 4.3 / 4.4
  • Supports Dual Channel DDR4 2133 MHz, 2 x SO-DIMM, up to 32GB system memory
  • 2 x HDMI, 1 x Displayport, 1 x eDP
  • 4 x USB 3.0, 4 x USB 2.0, 2 x SATA3
  • 1 x Mini-PCIe, 1 x PCIe x4 Slot ,1 x mSATA
  • Gigabit LAN : 1 x Intel LAN, 1 x Realtek LAN
  • 1 x TPM Header
  • 19V DC-in
See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor
Manufacturer Warranty

Technical Details

Reviews
DimensionsMini-ITX (6.7-in x 6.7-in)
CPUSocket LGA1151 for Intel® Core i7 / i5 / i3 / Celeron (Skylake-S)
ChipsetIntel® H110
BIOSUEFI
TechnologyDual Channel DDR4 2133 MHz SDRAM
Capacity32 GB
Socket2 x SO-DIMM
ControllerIntel® Gen9 Graphics DX 11 / 12, OGL 4.3 / 4.4
HDMISupports HDMI 1.4a, Max. resolution 4096 x 2160 at30Hz
LVDSSupports max resolution up to 1920 x 1200 at60Hz
eDPSupports Max. resolution 4096 x 2160 at60Hz
DisplayPortSupports DP 1.2, Max. resolution 4096 x 2160 at60Hz
MultiDisplayDual Display
PCIe1 x PCIe x4 slot
mini-PCIe1 x Half size with PCIe x1 and USB2.0
Controller/ SpeedLAN1: Intel® I219V with 10/100/1000 Mbps

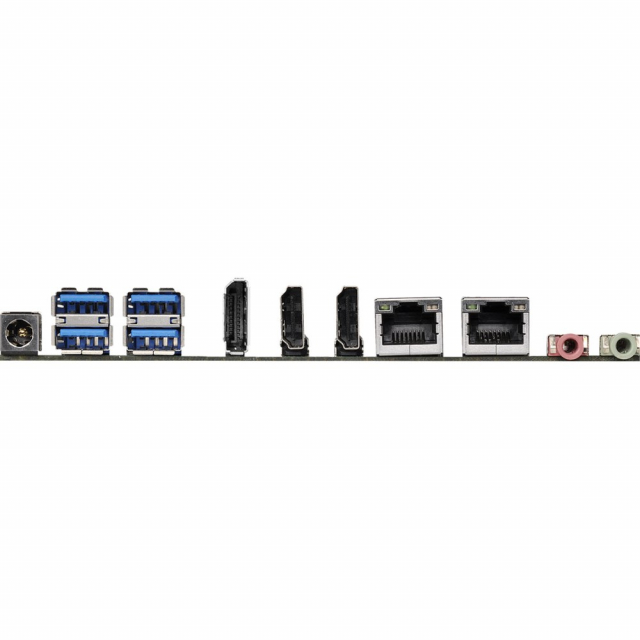

Connector2 x RJ-45
HDMI2
Ethernet2
USB4 x USB 3.0
Audio2 (Mic-in, Line-out)
DisplayPort1
DC Jack1
USB4 x USB 2.0 (2 x 2.54 pitch header)
COM4 x RS-232 (COM1 supports RS-232/422/485)
TPMTPM Header
eDP1
GPIO4 x GPI, 4 x GPO
SATA PWR Output1
Speaker Header1
SATA2 x SATA3 (6.0Gb/s)
mSATA1 x Full size with SATA3 (shared) and USB 2.0
OutputFrom Super I/O to drag RESETCON#
Interval256 Segments, 0, 1, 2, ...255sec
Input PWR19V DC-in (DC Jack / 4-pin ATX PWR Con)
Power OnAT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready
Operating Temp0ºC ~ 60ºC
Storage Temp-40° C ~ 85° C
Operating Humidity5% ~ 90%
Storage Humidity5% ~ 90%
Product Details
DimensionsMini-ITX (6.7-in x 6.7-in)
CPUSocket LGA1151 for Intel® Core i7 / i5 / i3 / Celeron (Skylake-S)
ChipsetIntel® H110
BIOSUEFI
TechnologyDual Channel DDR4 2133 MHz SDRAM
Capacity32 GB
Socket2 x SO-DIMM
ControllerIntel® Gen9 Graphics DX 11 / 12, OGL 4.3 / 4.4
HDMISupports HDMI 1.4a, Max. resolution 4096 x 2160 at30Hz
LVDSSupports max resolution up to 1920 x 1200 at60Hz
eDPSupports Max. resolution 4096 x 2160 at60Hz
DisplayPortSupports DP 1.2, Max. resolution 4096 x 2160 at60Hz
MultiDisplayDual Display
PCIe1 x PCIe x4 slot
mini-PCIe1 x Half size with PCIe x1 and USB2.0
Controller/ SpeedLAN1: Intel® I219V with 10/100/1000 Mbps
Connector2 x RJ-45
HDMI2
Ethernet2
USB4 x USB 3.0
Audio2 (Mic-in, Line-out)
DisplayPort1
DC Jack1
USB4 x USB 2.0 (2 x 2.54 pitch header)
COM4 x RS-232 (COM1 supports RS-232/422/485)
TPMTPM Header
eDP1
GPIO4 x GPI, 4 x GPO
SATA PWR Output1
Speaker Header1
SATA2 x SATA3 (6.0Gb/s)
mSATA1 x Full size with SATA3 (shared) and USB 2.0
OutputFrom Super I/O to drag RESETCON#
Interval256 Segments, 0, 1, 2, ...255sec
Input PWR19V DC-in (DC Jack / 4-pin ATX PWR Con)
Power OnAT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready
Operating Temp0ºC ~ 60ºC
Storage Temp-40° C ~ 85° C
Operating Humidity5% ~ 90%
Storage Humidity5% ~ 90%
Note

Note: Please read description carefully. Do not base your order on the picture presented.
