ASRock IMB-155 Motherboard Mini-ITX 1xMini-PCIe, 1xPCIe x1

  • Brand ASRock
  • Part # IMB-155
  • Condition
    Brand New
Availability
Backordered
Check Availability
Quantity
Share:

Features with all optional accessories:

  • Intel® Braswell SoC Processor N3710 (IMB-155A) / N3160 (IMB-155B)
  • Supports Dual Channel DDR3L SO-DIMM 1333 / 1600, up to 8GB
  • 1 x HDMI, 1 x D-Sub, 1 x Dual Channel 24-bit LVDS / eDP
  • 4 x USB 3.0, 4 x USB 2.0, 1 x SATA3, 6 x COM
  • 1 x Mini-PCIe, 1 x PCIe x1, 1 x mSATA
  • 2 x Realtek LAN
  • 1 x TPM Header
  • +12V or +19V~+24V DC-In (4-pin ATX PWR Con)
Report incorrect product information
See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor
Manufacturer Warranty
All sales are final
All sales are final
  • These are made-to-order items.
  • This product is not eligible for return or exchange unless defective.
  • The average lead-time is 1 or 2 weeks.

Technical Details

Reviews
DimensionsMini-ITX (6.7-in x 6.7-in)
CPUIntel® Braswell SoC Processor -IMB-155A (N3710, QC, 1.60 GHz, 6 W) -IMB-155B (N3160, QC, 1.60 GHz, 6 W)
ChipsetSoC
TechnologyDual Channel DDR3L 1333 / 1600MHz
Capacity8GB
Socket2 x SO-DIMM
ControllerIntel® Gen8 Intel Graphics DX 11, OGL3.2
HDMISupports max resolution up to 1920 x 1200
VGASupports max resolution up to 1920 x 1200
LVDSSupports max resolution up to 1920 x 1200 at60Hz
eDPSupports max resolution up to 4096 x 2160 at60Hz
MultiDisplayTriple Display
PCIe1 x PCIe x1
mini-PCIe1 x Full / Half size with PCIe x1 and USB 2.0
Controller/ Speed2 x Realtek RTL8111G with 10/100/1000 Mbps

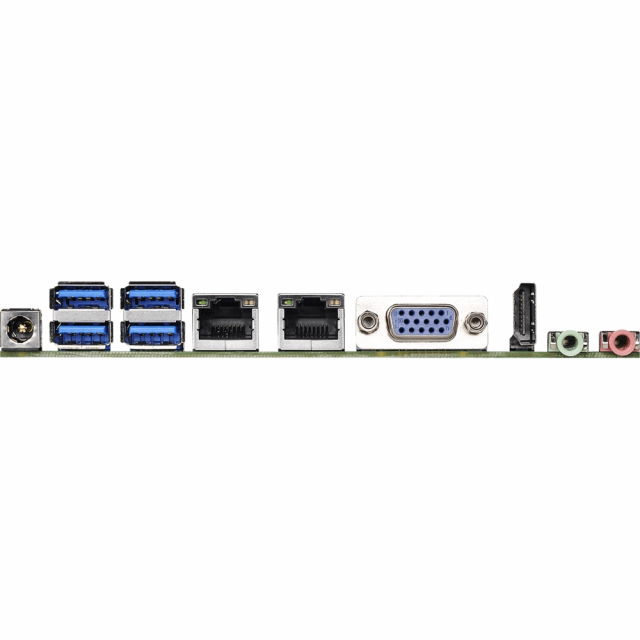

HDMI1
VGA1
Ethernet2
USB4 x USB 3.0
Audio2 (Mic-in, Line-out)
DC Jack1
USB4 x USB 2.0
COM4 x COM (RS-232), 2 x COM (RS-232/RS-422/485)
Parallel1 (Co-lay with 8in / 8out DIO)
GPIO8 x GPI, 8 x GPO (shared with LPT header)
TPM1 x Header
LVDS1
SATA PWR Output1
Speaker Header1
VGA1
SATA1 x SATA3 (6.0Gb/s)
mSATA1 x Full size with SATA3
OutputFrom Super I/O to drag RESETCON#
Interval256 Segments, 0, 1, 2, ...255sec
Input PWR12V or 19~24V DC in (4-pin ATX PWR Con)
Power OnAT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready
Operating Temp0ºC ~ 60ºC
Storage Temp-40° C ~ 85° C
Operating Humidity5% ~ 90%
Storage Humidity5% ~ 90%
Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details
DimensionsMini-ITX (6.7-in x 6.7-in)
CPUIntel® Braswell SoC Processor -IMB-155A (N3710, QC, 1.60 GHz, 6 W) -IMB-155B (N3160, QC, 1.60 GHz, 6 W)
ChipsetSoC
TechnologyDual Channel DDR3L 1333 / 1600MHz
Capacity8GB
Socket2 x SO-DIMM
ControllerIntel® Gen8 Intel Graphics DX 11, OGL3.2
HDMISupports max resolution up to 1920 x 1200
VGASupports max resolution up to 1920 x 1200
LVDSSupports max resolution up to 1920 x 1200 at60Hz
eDPSupports max resolution up to 4096 x 2160 at60Hz
MultiDisplayTriple Display
PCIe1 x PCIe x1
mini-PCIe1 x Full / Half size with PCIe x1 and USB 2.0
Controller/ Speed2 x Realtek RTL8111G with 10/100/1000 Mbps
HDMI1
VGA1
Ethernet2
USB4 x USB 3.0
Audio2 (Mic-in, Line-out)
DC Jack1
USB4 x USB 2.0
COM4 x COM (RS-232), 2 x COM (RS-232/RS-422/485)
Parallel1 (Co-lay with 8in / 8out DIO)
GPIO8 x GPI, 8 x GPO (shared with LPT header)
TPM1 x Header
LVDS1
SATA PWR Output1
Speaker Header1
VGA1
SATA1 x SATA3 (6.0Gb/s)
mSATA1 x Full size with SATA3
OutputFrom Super I/O to drag RESETCON#
Interval256 Segments, 0, 1, 2, ...255sec
Input PWR12V or 19~24V DC in (4-pin ATX PWR Con)
Power OnAT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready
Operating Temp0ºC ~ 60ºC
Storage Temp-40° C ~ 85° C
Operating Humidity5% ~ 90%
Storage Humidity5% ~ 90%
Note

Note: Please read description carefully. Do not base your order on the picture presented.
