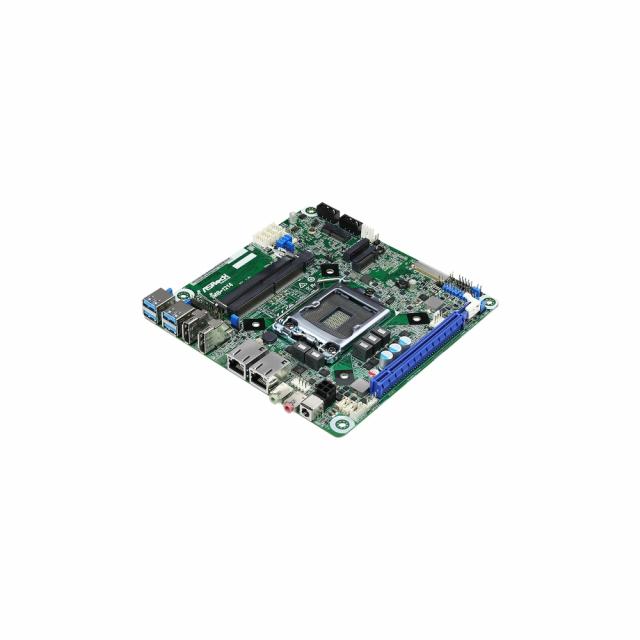

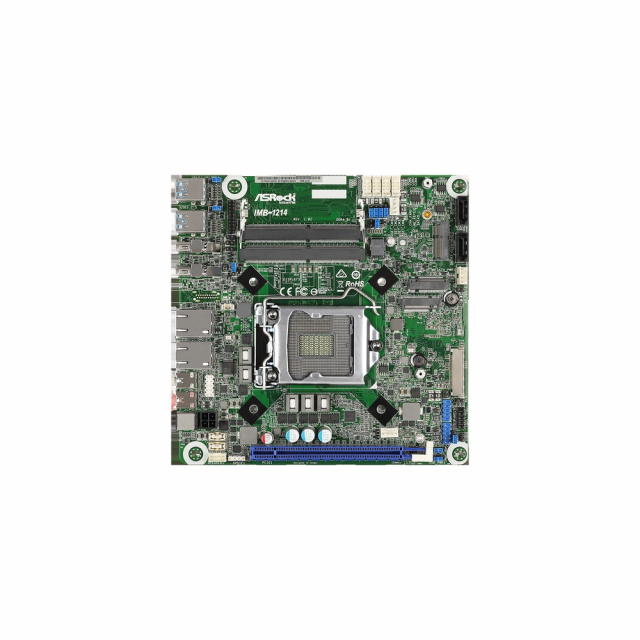

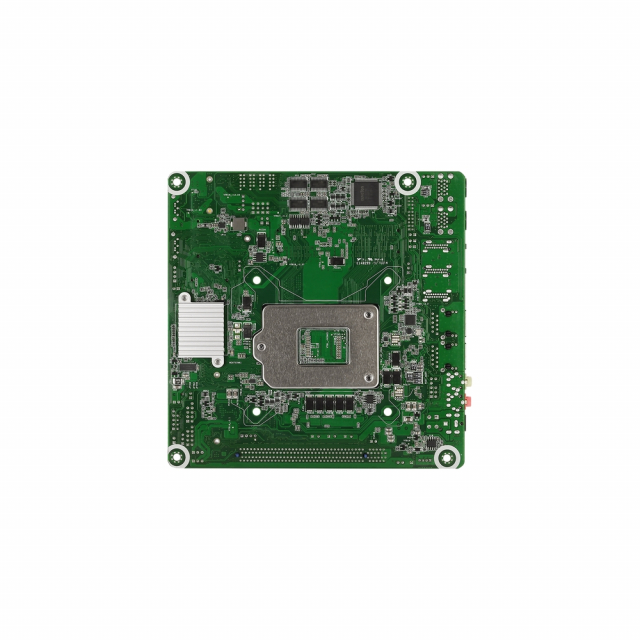

Buy ASRock IMB-1214, Motherboard Mini-ITX 4xUSB 3.1 Gen1, 4xUSB 2.0

info@PrimeBuy.com

1-855-969-9322
1-908-282-3332 (Intl.)

Features with all optional accessories:

Intel^® 9th/ 8th Gen (Coffee Lake-S) Core™ Processors with H310 chipset
2 x 260-pin SO-DIMM up to 64GB DDR4 2666MHz
1 x PCIe x16 (Gen3), 4 x USB 3.1 Gen1, 4 x USB 2.0, 1 x M.2 Key E, 2 x M.2 Key M, 4 x COM, 2 x SATA3
1 x Intel 1 Gigabit LAN, 1 x Realtek 1 Gigabit LAN
Supports dual display, 2 x DP 1.2, 1 x eDP
TPM header
19V DC-In

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Dimensions	Mini-ITX (6.7-in x 6.7-in)
CPU	Intel^® 9th/ 8th Gen (Coffee Lake-S) Core™ Processors, up to 65W
Chipset	Intel^® H310
Socket	LGA1151
BIOS	AMI SPI 128 Mbit
Technology	Dual Channel DDR4 2666 MHz
Capacity	64GB Intel Core i3/Pentium/Celeron CPUs support up to 32GB (16GB per DIMM)
Socket	2 x 260-pin SO-DIMM
Controller	Coffee Lake integrated graphics
DisplayPort	DisplayPort 1.2, DP++ Max resolution up to 4096x2304 at60Hz
eDP	eDP 1.4 Max resolution up to 4096x2304 at60Hz
MultiDisplay	Dual Display
PCIe	1 x PCIe x16 (Gen3)
M.2	1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless
Interface	Realtek ALC887, High Definition Audio. Line-out,Mic-in
Controller/ Speed	LAN1: Intel^® I219V with10/100/1000 Mbps LAN2: Realtek RTL8111H with 10/100/1000 Mbps
Connector	2 x RJ-45
DisplayPort	2 x DP 1.2
Ethernet	2 x 1 Gigabit LAN
USB	4 x USB 3.1 (Gen1)
Audio	2 (Mic-in, Line-out)
DC Jack	1
USB	4 x USB 2.0 (2 x 2.54 pitch header)
COM	COM3(RS232/422/485) COM1, 2, 4(RS232)
TPM	TPM Header
eDP	1
SATA PWR Output	1
Speaker Header	1
M.2	1 x M.2 (Key M, 2242/2260) with PCIe x1 for SSD 1 x M.2 (Key M, 2242/2280) with SATA3 for SSD
SATA	2 x SATA3 (6Gb/s)
Output	From Super I/O to drag RESETCON#
Interval	256 Segments, 0, 1, 2, ...255sec
Input PWR	19V DC-In with 4-pin plug PWR cable or DC Jack
Power On	AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready
Operating Temp	0ºC ~ 60ºC
Storage Temp	-40° C ~ 85° C
Operating Humidity	5% ~ 90%
Storage Humidity	5% ~ 90%

Product Details

Dimensions	Mini-ITX (6.7-in x 6.7-in)
CPU	Intel^® 9th/ 8th Gen (Coffee Lake-S) Core™ Processors, up to 65W
Chipset	Intel^® H310
Socket	LGA1151
BIOS	AMI SPI 128 Mbit
Technology	Dual Channel DDR4 2666 MHz
Capacity	64GB Intel Core i3/Pentium/Celeron CPUs support up to 32GB (16GB per DIMM)
Socket	2 x 260-pin SO-DIMM
Controller	Coffee Lake integrated graphics
DisplayPort	DisplayPort 1.2, DP++ Max resolution up to 4096x2304 at60Hz
eDP	eDP 1.4 Max resolution up to 4096x2304 at60Hz
MultiDisplay	Dual Display
PCIe	1 x PCIe x16 (Gen3)
M.2	1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless
Interface	Realtek ALC887, High Definition Audio. Line-out,Mic-in
Controller/ Speed	LAN1: Intel^® I219V with10/100/1000 Mbps LAN2: Realtek RTL8111H with 10/100/1000 Mbps
Connector	2 x RJ-45
DisplayPort	2 x DP 1.2
Ethernet	2 x 1 Gigabit LAN
USB	4 x USB 3.1 (Gen1)
Audio	2 (Mic-in, Line-out)
DC Jack	1
USB	4 x USB 2.0 (2 x 2.54 pitch header)
COM	COM3(RS232/422/485) COM1, 2, 4(RS232)
TPM	TPM Header
eDP	1
SATA PWR Output	1
Speaker Header	1
M.2	1 x M.2 (Key M, 2242/2260) with PCIe x1 for SSD 1 x M.2 (Key M, 2242/2280) with SATA3 for SSD
SATA	2 x SATA3 (6Gb/s)
Output	From Super I/O to drag RESETCON#
Interval	256 Segments, 0, 1, 2, ...255sec
Input PWR	19V DC-In with 4-pin plug PWR cable or DC Jack
Power On	AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready
Operating Temp	0ºC ~ 60ºC
Storage Temp	-40° C ~ 85° C
Operating Humidity	5% ~ 90%
Storage Humidity	5% ~ 90%

Note

Note: Please read description carefully. Do not base your order on the picture presented.
