Apollo Valves 40-201-T2S 1/4 Thread, Stainless Preventer Valve

Apollo Valves / Conbraco Industries, 40-201-T2S, 1/4 Thread, Stainless Preventer Valve with Apollo Ball Valves

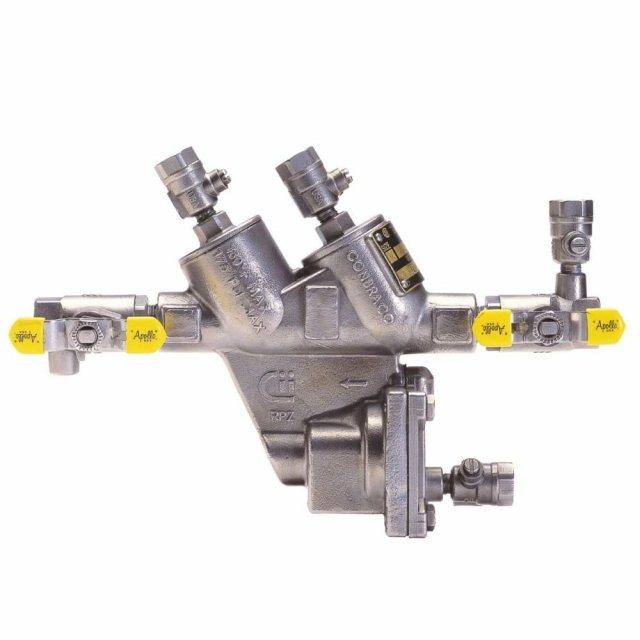

The Stainless Steel Reduced Pressure Principle Backflow preventer shall be an Apollo RP40S. The stainless steel body shall be configured with individually-accessible top-access check valves including topmounted test cocks. The relief valve shall be bottom-centered with a separate access cover. The replaceable seat rings shall be glass-filled Noryl and the reversible seat discs shall be silicone rubber. The Apollo domestic shut-off ball valves shall have stainless steel handles. The assembly shall prevent contamination of the potable water supply due to back-siphonage or back pressure from substances that are health or non-health hazards. The pressure drop across the assembly shall be documented by the Foundation for Cross-Connection Control and Hydraulic Research at the University of Southern California approval curves.

Features:

• Replaceable Seats & Reversible Silicone Seat Discs
• Top-mounted Test Cocks for Easy Testing
• Corrosion Resistance

Approvals:

• ASSE 1013
• CSA B.64.4
• IAPMO
• AWWA C-511
• NSF/ANSI 372 Lead Free
• Foundation for Cross-Connection Control and Hydraulic Research at the University of Southern California

Performance Rating:

• Maximum Working Pressure: 175 psi
• Temperature Range: 33°F - 180°F
• Hydrostatic Test Pressure: 350 psi
