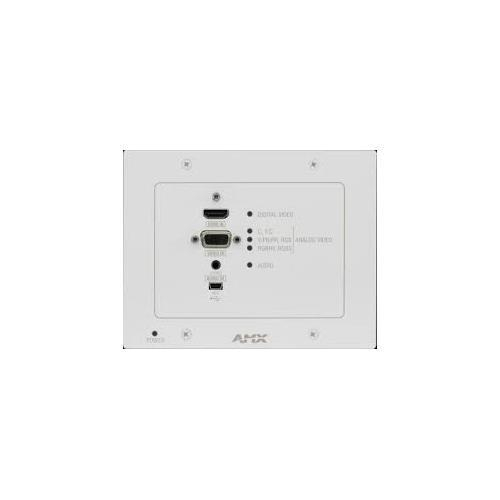

Amx FG1010-320-WHFX Multi-Format Wallplate Transmitters, White

DXLinkTM Multi-Format Wallplate Transmitters. The DXLink Multi-Format Wallplate Transmitter sends analog or digital video including HDMI/HDCP, along with embedded audio or supplemental analog audio up to 100 meters to an Enova DGX Matrix Switcher, compatible Enova DVX All-InOne Presentation Switcher, or directly to a DXLink Receiver. It receives power from the Enova DGX or Enova DVX (3155HD, 3156HD or 2155HD) PS-POE-AT-TC High Power PoE Injector or PDXL-2 Dual Power over DXLink Controller over the twisted pair cable and features both a multi-format analog port to support legacy devices and an HDMI port to support newer digital devices.

Features:

• Only One Cable - Send audio and video, while passing Ethernet signals and power over one twisted pair cable
• Multi-Format Analog Port and HDMI Port - Supports legacy analog signals - RGBHV, Component, S-Video, and Composite, and digital HDMI/HDCP, DisplayPort++ and DVI signals
• Send HDMI signals up to 100 meters - Extend the reach of the HDMI signals far beyond the capabilities of typical HDMI cabling
• Standard Twisted Pair Cable - Save time and effort in installation by leveraging cost effective twisted pair cable,
• Power over DXLink Enabled - Designed for use with Enova DGX or DVX systems with DXLink inputs, PS-POEAT-TC (FG423-84) or PDXL-2 (FG1090-170) to provide remotely located Power over DXLink (requires firmware v1.2.40 or above)
