Buy American Lube 275VDW-R23P, 275-Gallon Double-Wall Obround Tank Package

info@PrimeBuy.com

1-855-969-9322
1-908-282-3332 (Intl.)

Options and Related Products

Type:: Type: Preset Digital Meter

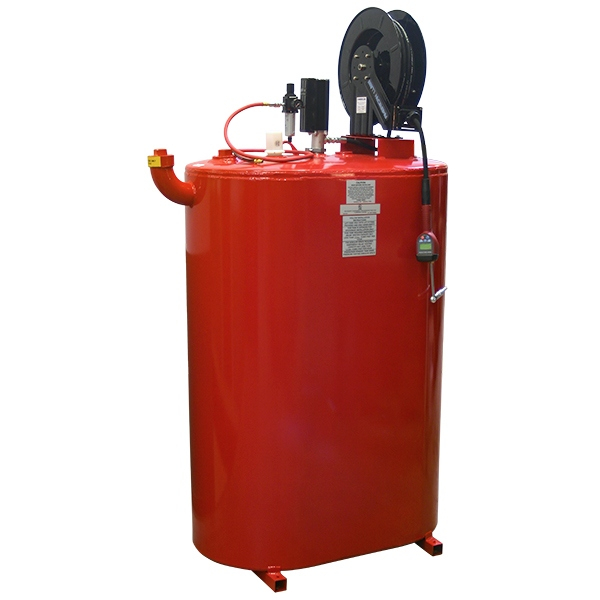

American Lube, 275VDW-R23P, 275-Gallon Double-Wall Vertical Obround Tank Package

275VDW-R23P Includes Only:

142 double-wall vertical tank with 3:1 ARO Thunder oil pump
1/2" x 50' oil reel package
Digital meter
Air filter/regulator with gauge
5' air hose
Tank gauge
Fill cap

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Tank Capacity

275 gallons

Tank Form Factor

Vertical, obround, welded steel, double wall

Tank Compliance

UL 142 (Check local codes for venting/installation requirements)

Tank Features

Red enamel paint
Float and string gauge
Fill cap
Tank vent

Tank Ports

Five (four on top, one bottom-side), 2" FNPT
One 3" FNPT (top, vent)

Tank Mounting

Steel tubing, holes for 1/2" lag bolts (Grade 5 recommended, not included)

Pump

3:1 ratio ARO Thunder oil pump

Pump Compatibility

Motor oil
Synthetic oil
ATF
Hydraulic oil
Gear oil

Pump Working Pressure

450 PSI maximum

Pump Working Flow

6 GPM

Hose Reel

Rubber delivery hose, 0.5" x 50', 1/2" NPT (M) threads

Hose Reel Working Pressure

2,000 PSI maximum

Preset Digital Meter

TIM-900B-1 (Preset digital meter with rigid nozzle and automatic tip)
Meter (4 x AA batteries): gallons, quarts, pints or liters; Accuracy ±0.5%
Working specifications: 2.5 GPM flow rate; 1,000 PSI maximum; 140° F maximum

Air Supply

ARO P39224 filter/regulator (1/4" NPT (F), 72 CFM, 150 PSI max.) with 160 PSI gauge
3/8" x 5' air hose (rubber), 1/4" NPT (M)
Working air pressure: 65 PSI typical (≈60 pump cycles per minute)

Shipping Weight

660 pounds

Shipping Dimensions

L x W x H, 60" x 54" x 95"

Product Details

Tank Capacity

275 gallons

Tank Form Factor

Vertical, obround, welded steel, double wall

Tank Compliance

UL 142 (Check local codes for venting/installation requirements)

Tank Features

Red enamel paint
Float and string gauge
Fill cap
Tank vent

Tank Ports

Five (four on top, one bottom-side), 2" FNPT
One 3" FNPT (top, vent)

Tank Mounting

Steel tubing, holes for 1/2" lag bolts (Grade 5 recommended, not included)

Pump

3:1 ratio ARO Thunder oil pump

Pump Compatibility

Motor oil
Synthetic oil
ATF
Hydraulic oil
Gear oil

Pump Working Pressure

450 PSI maximum

Pump Working Flow

6 GPM

Hose Reel

Rubber delivery hose, 0.5" x 50', 1/2" NPT (M) threads

Hose Reel Working Pressure

2,000 PSI maximum

Preset Digital Meter

TIM-900B-1 (Preset digital meter with rigid nozzle and automatic tip)
Meter (4 x AA batteries): gallons, quarts, pints or liters; Accuracy ±0.5%
Working specifications: 2.5 GPM flow rate; 1,000 PSI maximum; 140° F maximum

Air Supply

ARO P39224 filter/regulator (1/4" NPT (F), 72 CFM, 150 PSI max.) with 160 PSI gauge
3/8" x 5' air hose (rubber), 1/4" NPT (M)
Working air pressure: 65 PSI typical (≈60 pump cycles per minute)

Shipping Weight

660 pounds

Shipping Dimensions

L x W x H, 60" x 54" x 95"

Note

Note: Please read description carefully. Do not base your order on the picture presented.
