Alzatex ryg11abbk Table Top Red-Yellow-Green Indicator

ryg11abbk Includes Only:

• RYG11A Indicator lamp module
• M8BK007F Cable, 7ft, CAT-5
• RC Reference guide
• WD Wiring diagram

Features:

• Table Top Red-Yellow-Green Indicator.
• Red-Yellow-Green Audience signal lights
• Works with The TimeKeeper, Alzatex, Inc.'s zero to 99.59 minute Count Up/Down Timers
• Built-in internal loud beeper. The Count Up/Down TimeKeeper™ can enable or disable the beeper.
• Green-Talk; Yellow-Wrap it up; Red-Done LED Indicators.

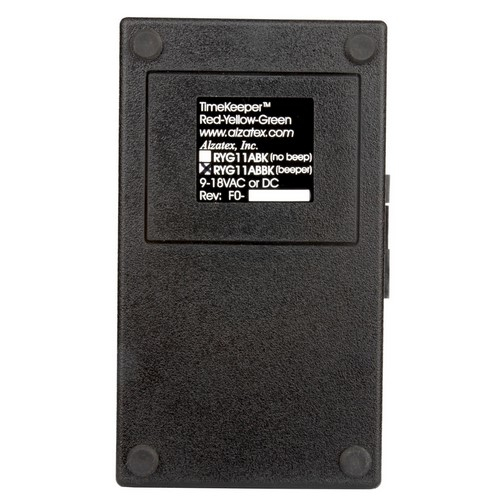

• May be powered using AC or DC power.
• Low power consumption.
• RJ45 modular connector for RS422 serial data input.
• RJ11 modular connectors for serial data input.

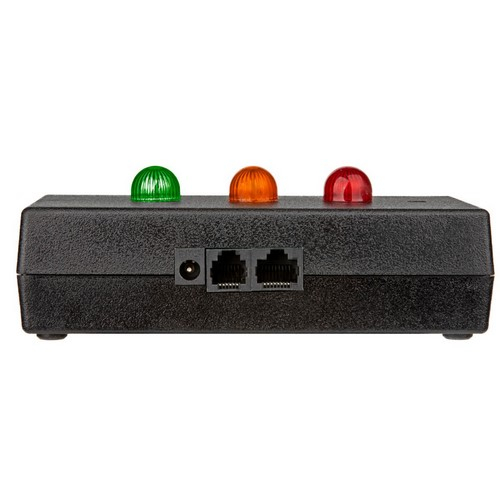

• RJ11, RJ45 and Power connectors.
• Audio output (2 watt) for a speaker, that will generate user-programmable audible tones.
• The SPDT relay outputs can drive loads of up to 5AMP per output.
• Ground closure 200mA output for optional beeper. (not included).
• Ground closure 200mA outputs for Green, yellow, red status and running status
• Ground closure outputs can drive resistive or inductive loads

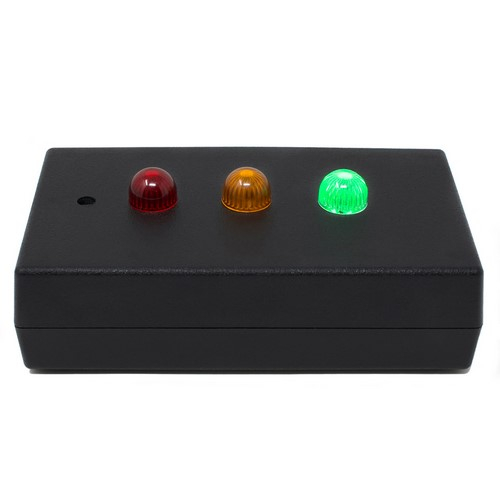

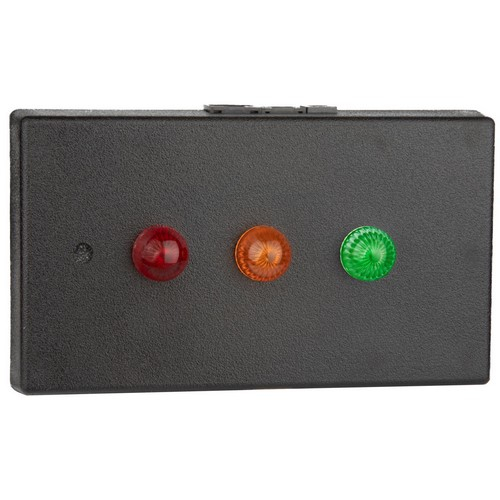

Table top Red-Yellow-Green Indicator unit, 1/2" diameter dome LEDs with beeper (Black ABS plastic enclosure).

Not Included:Transformer
