Altronix VERTILINE33D Vertiline Power Supply, 16 PTC Outputs, 12VDC

  • Brand Altronix
  • Part # VERTILINE33D
  • Model # Vertiline
  • Condition
    Brand New
Availability
Contact Us
Check Availability
Quantity
Share:

Features:

  • Sixteen (16) power LEDs.
  • Illuminated master power disconnect circuit breaker with manual reset.
  • IEC 320 - 3-wire grounded line cord (detachable).
  • Removable terminal blocks with locking screw flange.

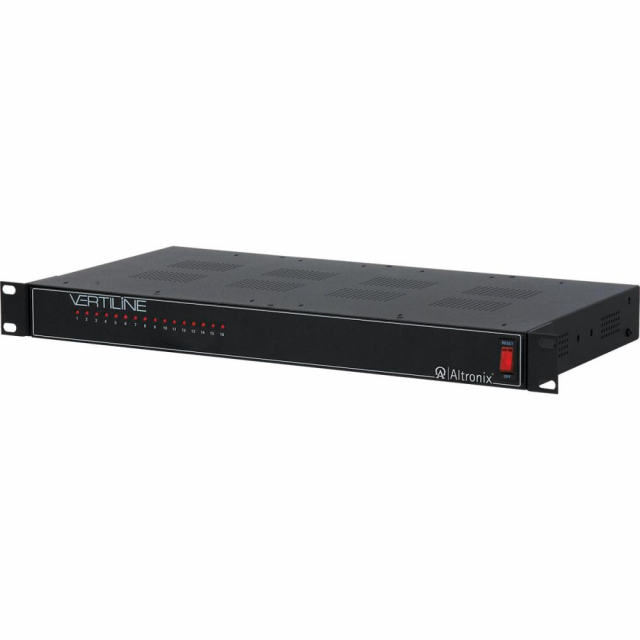

Vertiline33D Rack Mount DC Power Supply provides sixteen (16) filtered and electronically regulated power outputs in a space saving 1U EIA 19" rack mount chassis.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor
Manufacturer Warranty

Technical Details

Reviews
Input Voltage115VAC 60 Hz, 1.5A input.
Output12VDC outputs rated at 8A total current max. (0.5A per device, 2.5A max.). Sixteen (16) PTC protected power outputs. Filtered and electronically regulated.
TemperatureOperating 0° C to 49° C (32° F to 120° F). Storage - 20° C to 70° C ( - 4° F to 158° F). Relative Humidity 85% +/- 5%. BTU/Hr. (approx.): 49 BTU/Hr. System AC input VA requirement: 172.5VA.
Indicators (LED)Master Illuminated master power disconnect circuit breaker with manual reset. Output Sixteen (16) individual LEDs.
Dimensions (H x W x D)1.625" x 19.125" x 8.5" (41.3mm x 486mm x 216mm).
Product Details
Input Voltage115VAC 60 Hz, 1.5A input.
Output12VDC outputs rated at 8A total current max. (0.5A per device, 2.5A max.). Sixteen (16) PTC protected power outputs. Filtered and electronically regulated.
TemperatureOperating 0° C to 49° C (32° F to 120° F). Storage - 20° C to 70° C ( - 4° F to 158° F). Relative Humidity 85% +/- 5%. BTU/Hr. (approx.): 49 BTU/Hr. System AC input VA requirement: 172.5VA.
Indicators (LED)Master Illuminated master power disconnect circuit breaker with manual reset. Output Sixteen (16) individual LEDs.
Dimensions (H x W x D)1.625" x 19.125" x 8.5" (41.3mm x 486mm x 216mm).
Note

Note: Please read description carefully. Do not base your order on the picture presented.
