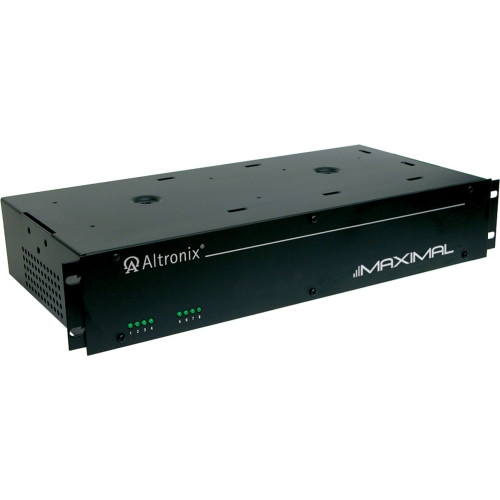

Altronix MAXIMAL3RH Access Power Controller Supply/Charger 8 Outputs

Altronix, MAXIMAL3RH, Access Power Controller w/ Power Supply/Charger, 8 Fused Relay Outputs, 12/24VDC at 6A, 115VAC, 2U

MAXIMAL3RH Includes Only:

• Access Power Controller
• Mounting hardware

Features:

• Eight (8) independently controlled fuse protected 12VDC and/or 24VDC outputs
• Individually selectable Mag Lock/Strike (Fail-Safe, Fail-Secure) solid state fuse protected outputs
• Thermal and short circuit protection with auto reset
• Supervision:
  • AC Fail
  • Low Battery
• Fire Alarm disconnect (latching or non-latching) is individually selectable for any or all of the outputs
• Built-in charger for sealed lead acid or gel type batteries
• Instantaneous transfer to stand-by batteries

Maximal3RH rack mount access power controller distributes and switches power to access control systems and accessories. It converts a 115VAC 50/60Hz input into eight (8) independently controlled 12VDC or 24VDC fuse protected outputs. Outputs are activated by an normally open (NO) or normally closed (NC) dry trigger input from an Access Control System, Card Reader, Keypad, Push Button, PIR, etc. This unit will route power to a variety of access control hardware devices including: Mag Locks, Electric Strikes, Magnetic Door Holders, etc. Outputs will operate in both Fail-Safe and/or Fail-Secure modes. The FACP Interface enables Emergency Egress, Alarm Monitoring, or may be used to trigger other auxiliary devices. The fire alarm disconnect feature is individually selectable for any or all of the outputs.
