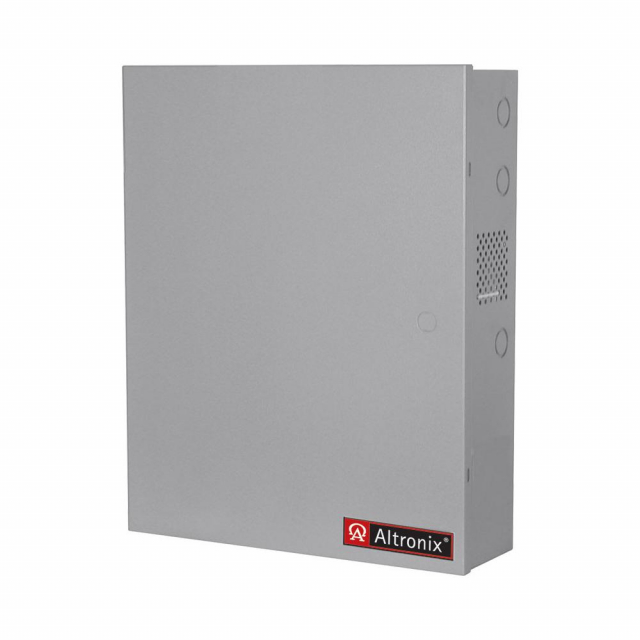

Altronix MAXIMAL33 Maximal Access Power Controller

  • Brand Altronix
  • Part # MAXIMAL33
  • Model # Maximal
  • Condition
    Brand New
Availability
Contact Us
Check Availability
Quantity
Share:

MAXIMAL33 Includes Only:

  • 1x Enclosure, 26"H x 19"W x 6.25"D, Grey, 19 Gauge, Indoor
  • 2x Power Supply Charger, Single Class 2 Output, 12/24VDC at 6A, 115VAC, Board
  • 2x Access Power Controller, 8 Fused Relay Outputs, FAI, Board

Features:

  • Sixteen (16) independently controlled outputs.
  • Output options: a) Sixteen (16) Fail-Safe and/or Fail-Secure power outputs. b) Sixteen (16) form “C" 5A rated relay outputs. c) Any combination of the above.
  • Sixteen (16) auxiliary power outputs (unswitched).
  • Output fuses are rated at 3.5A.
  • Filtered and electronically regulated outputs.
  • Supervision:
  • AC Fail.
  • Battery Fail and Battery Presence.
  • Fire Alarm disconnect (latching or non-latching) is individually selectable for any or all of the sixteen (16) outputs.
  • Alarm output relay indicates that FACP input is triggered.
  • Fire Alarm disconnect input options: a) Normally open (NO) or normally closed (NC) dry contact input b) Polarity reversal input from FACP signaling circuit.
  • Built-in charger for sealed lead acid or gel type batteries.
  • Instantaneous transfer to stand-by batteries.
  • UL Listed in the U.S. and Canada.

Maximal33 distributes and switches power to access control systems and accessories. It converts a 115VAC 60Hz input into sixteen (16) independently controlled 12VDC or 24VDC fuse protected outputs. These Fail-Safe/Fail-Secure power outputs may be converted to dry form "C" contacts. The outputs are activated by an open collector sink or normally open (NO) dry trigger input from an Access Control System, Keypad, Push Button, REX PIR, etc. Units will route power to a variety of access control hardware devices including: Mag Locks, Electric Strikes, Magnetic Door Holders, etc. The FACP Interface enables Emergency Egress, Alarm Monitoring, or may be used to trigger other auxiliary devices. The fire alarm disconnect feature is individually selectable for any or all of the sixteen (16) outputs.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor
Manufacturer Warranty

Technical Details

Reviews
Input Voltage115VAC 60Hz, 7A input.
Power supply input optionsa) Two (2) common power input for either ACM8 and lock power (factory installed). b) Two (2) isolated power inputs (external power supply is required), (current is determined by the power supply connected, not to exceed a maximum of 10A total). Sixteen (16) Access Control System trigger inputs.
Input optionsa) Sixteen (16) normally open (NO) inputs. b) Sixteen (16) open collector inputs. c) Any combination of the above.
Output12VDC and/or 24VDC outputs.
Maximum output current OptionsA) 12VDC at 5.5A plus 12VDC at 5.5A. B) 24VDC at 5.7A plus 24VDC at 5.7A. C) 12VDC at 5.5A plus 24VDC at 5.7A. Sixteen (16) independently controlled outputs.
Output optionsa) Sixteen (16) Fail-Safe and/or Fail-Secure power outputs. b) Sixteen (16) form "C" 5A rated relay outputs. c) Any combination of the above. Sixteen (16) auxiliary power outputs (unswitched), (outputs are rated 2.5A). Filtered and electronically regulated outputs (built-in power supply). Thermal and short circuit protection with auto reset.
Fuse RatingsPower Supply input fuse rated at 3.5A/250V. ACM8 boards main fuse is rated at 10A. Output fuses are rated at 3.5A.
FeaturesFire Alarm disconnect (latching or non-latching) is individually selectable for any or all of the sixteen (16) outputs. Fire Alarm disconnect input options: a) Normally open (NO) or normally closed (NC) dry contact input. b) Polarity reversal input from FACP signaling circuit. Alarm output relay indicates that FACP input is triggered (form "C" contact rated at 1A 28VDC).
SupervisionAC fail supervision (form "C" contacts). Notification trigger is selectable for 30 seconds (factory set) or 6 hours. Low battery and battery presence supervision (form "C" contact).
Battery BackupBuilt-in charger for sealed lead acid or gel type batteries. Automatic switch over to stand-by battery when AC fails. Zero voltage drop when unit switches over to battery backup (AC failure condition).
Visual IndicatorsRed LEDs indicate outputs are triggered (relays energized). Green LED indicates FACP disconnect is triggered. AC input and DC output LED indicators
ElectricalTemperature: Operating: 0° C to 49° C (32° F to 120° F). Storage: - 20° C to 70° C ( - 4° F to 158° F). Relative Humidity 85% +/- 5%. BTU/Hr (approx.): 12VDC: 68 BTU/Hr. 24VDC: 140 BTU/Hr. 12VDC & 24VDC: 104 BTU/Hr. System AC input VA requirement: 805VA.
Enclosure Dimensions (H x W x D approx.)26" x 19" x 6.25" (660.4mm x 482.6mm x 158.75mm).
Agency ListingsUL: UL294 Access Control System Units. cUL: C22.2 No.205-M1983 General Signaling Equipment; CSFM California State Fire Marshall Approved.
Product Details
Input Voltage115VAC 60Hz, 7A input.
Power supply input optionsa) Two (2) common power input for either ACM8 and lock power (factory installed). b) Two (2) isolated power inputs (external power supply is required), (current is determined by the power supply connected, not to exceed a maximum of 10A total). Sixteen (16) Access Control System trigger inputs.
Input optionsa) Sixteen (16) normally open (NO) inputs. b) Sixteen (16) open collector inputs. c) Any combination of the above.
Output12VDC and/or 24VDC outputs.
Maximum output current OptionsA) 12VDC at 5.5A plus 12VDC at 5.5A. B) 24VDC at 5.7A plus 24VDC at 5.7A. C) 12VDC at 5.5A plus 24VDC at 5.7A. Sixteen (16) independently controlled outputs.
Output optionsa) Sixteen (16) Fail-Safe and/or Fail-Secure power outputs. b) Sixteen (16) form "C" 5A rated relay outputs. c) Any combination of the above. Sixteen (16) auxiliary power outputs (unswitched), (outputs are rated 2.5A). Filtered and electronically regulated outputs (built-in power supply). Thermal and short circuit protection with auto reset.
Fuse RatingsPower Supply input fuse rated at 3.5A/250V. ACM8 boards main fuse is rated at 10A. Output fuses are rated at 3.5A.
FeaturesFire Alarm disconnect (latching or non-latching) is individually selectable for any or all of the sixteen (16) outputs. Fire Alarm disconnect input options: a) Normally open (NO) or normally closed (NC) dry contact input. b) Polarity reversal input from FACP signaling circuit. Alarm output relay indicates that FACP input is triggered (form "C" contact rated at 1A 28VDC).
SupervisionAC fail supervision (form "C" contacts). Notification trigger is selectable for 30 seconds (factory set) or 6 hours. Low battery and battery presence supervision (form "C" contact).
Battery BackupBuilt-in charger for sealed lead acid or gel type batteries. Automatic switch over to stand-by battery when AC fails. Zero voltage drop when unit switches over to battery backup (AC failure condition).
Visual IndicatorsRed LEDs indicate outputs are triggered (relays energized). Green LED indicates FACP disconnect is triggered. AC input and DC output LED indicators
ElectricalTemperature: Operating: 0° C to 49° C (32° F to 120° F). Storage: - 20° C to 70° C ( - 4° F to 158° F). Relative Humidity 85% +/- 5%. BTU/Hr (approx.): 12VDC: 68 BTU/Hr. 24VDC: 140 BTU/Hr. 12VDC & 24VDC: 104 BTU/Hr. System AC input VA requirement: 805VA.
Enclosure Dimensions (H x W x D approx.)26" x 19" x 6.25" (660.4mm x 482.6mm x 158.75mm).
Agency ListingsUL: UL294 Access Control System Units. cUL: C22.2 No.205-M1983 General Signaling Equipment; CSFM California State Fire Marshall Approved.
Note

Note: Please read description carefully. Do not base your order on the picture presented.
